Blower Motor Switch: Service and Repair

Blower Motor Speed Control









Removal and Installation

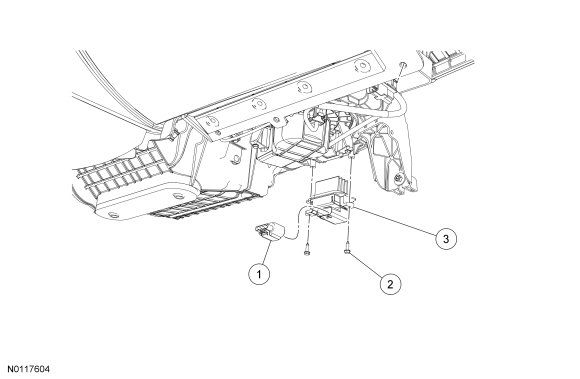

1. Disconnect the blower motor speed control electrical connector.

2. Remove the 2 blower motor speed control screws.

3. Remove the blower motor speed control.

4. To install, reverse the removal procedure.
