Seat Temperature Control Module
>>
C3304A Heated Seat Module, Rear
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

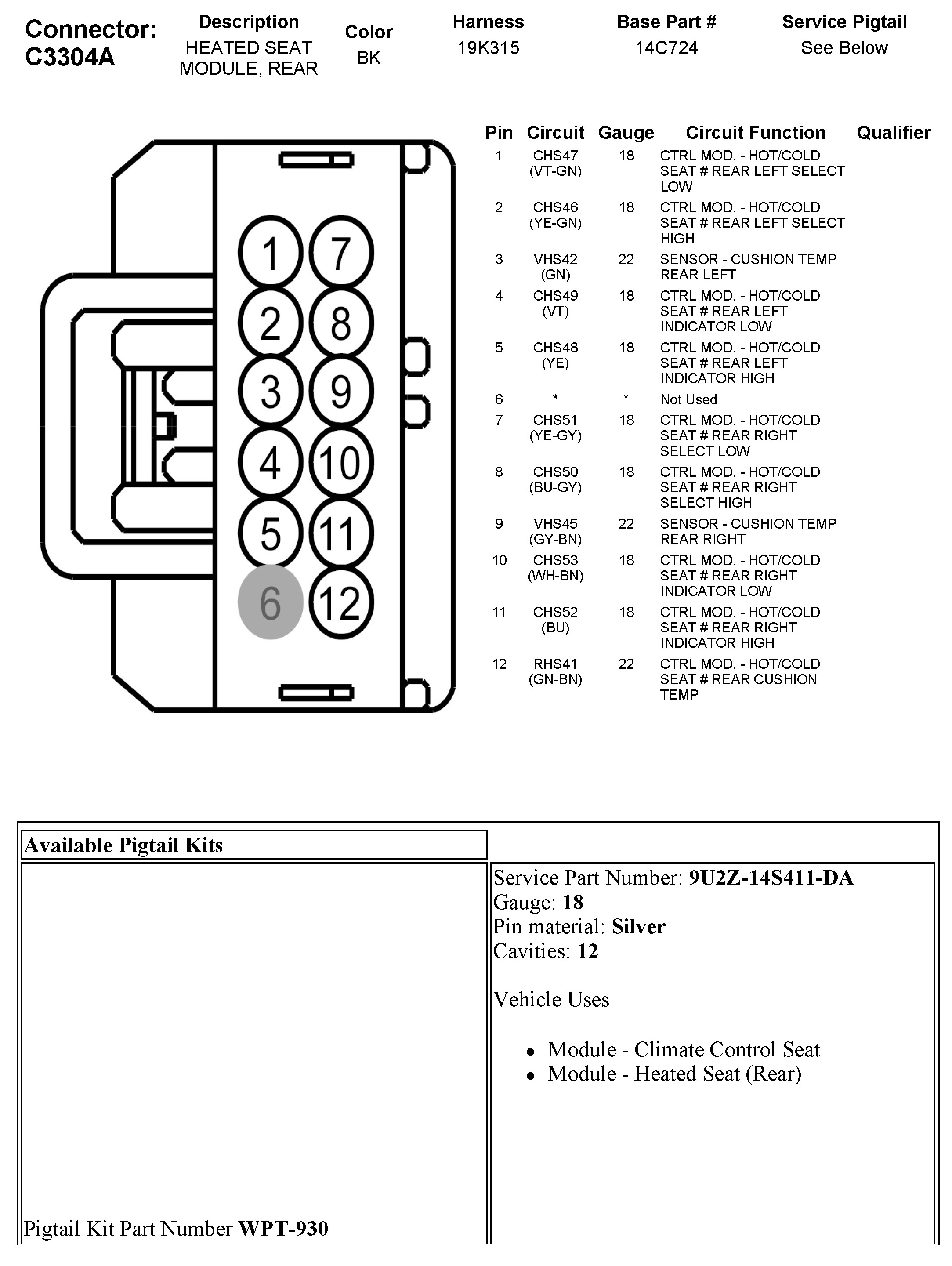

C3304A Heated Seat Module, Rear
