Front Door Lock Switch LH - Without Memory
WARNING:
This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

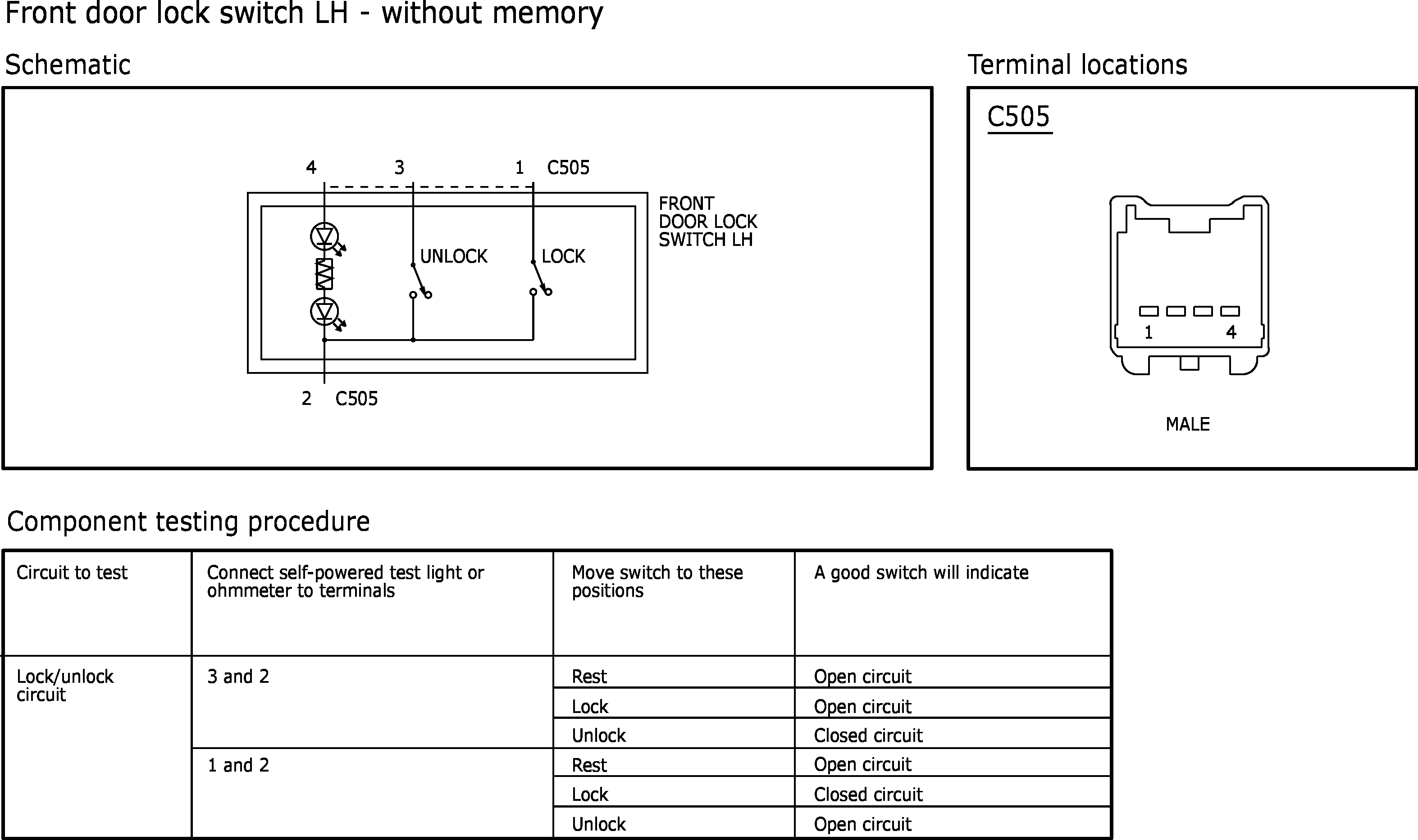

Fig 1: Front Door Lock Switch LH - Without Memory
Courtesy of FORD MOTOR COMPANY
