Ground Distribution

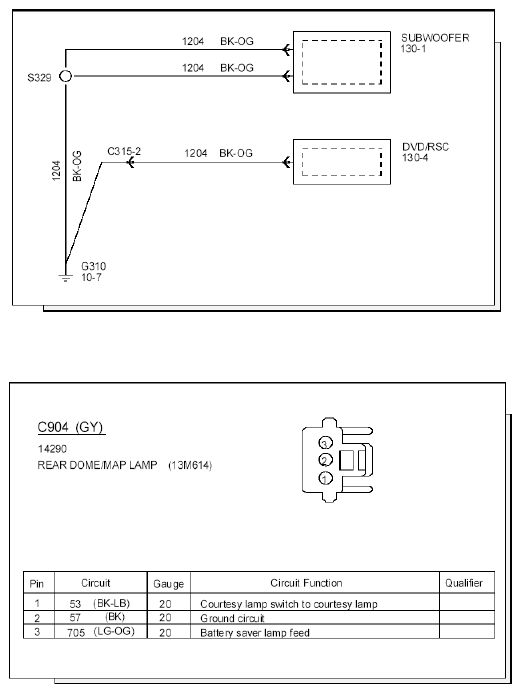

OEM GROUND DISTRIBUTION contains the schematic that shows the complete details for each ground connection or main ground splice. This is useful in diagnosing a problem affecting several components at once (poor ground connection or ground splice). All details (wires, splices, connectors) between the ground point and the component are shown in illustration. These ground connection details are shown in illustration here in order to keep the individual cell schematics as uncluttered as possible.
