Tire Pressure Monitoring System (TPMS) Sensor: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

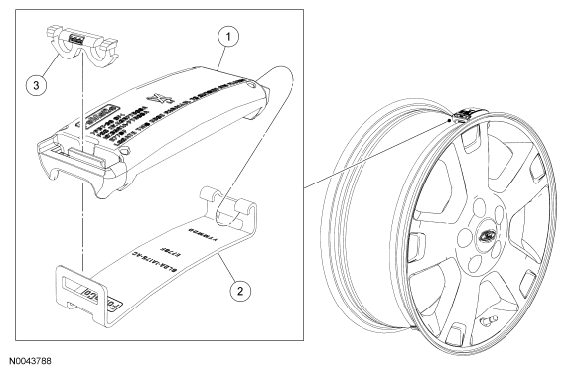

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
1A150/1A189 |
Tire pressure sensor/sensor kit |
| 2 |
1A175 |
Sensor cradle |
| 3 |
14C202 |
Locking clip (also part of 1A189) |
