In-Dash Computer: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

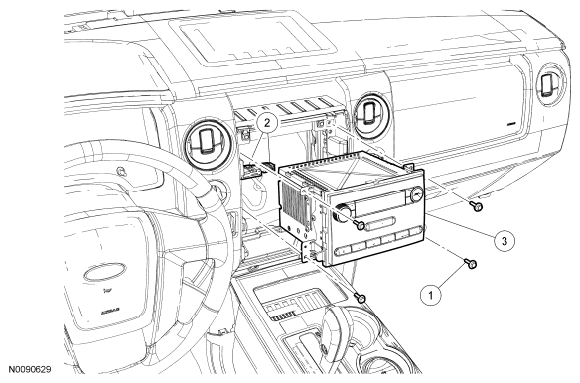

The AM/FM Audio Front Control Module (ACM) is shown in the illustration. The in-dash computer is similar, and mounts in the same physical location.
| Item | Part Number | Description |
|---|---|---|
| 1 | W704875-S | In-dash computer screws (4 required) |
| 2 | - | In-dash computer electrical connectors (part of 14401) |
| 3 | 18FW800 | In-dash computer |
