Engine - Intake Manifold

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

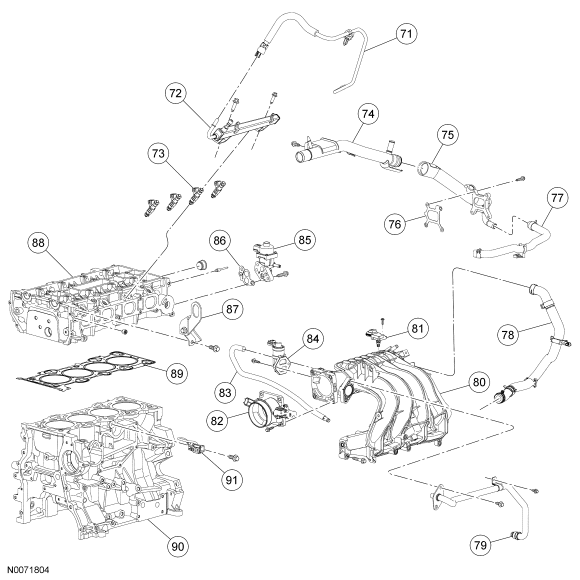

Fig 1: Exploded View Of Engine - Intake Manifold

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
71	-	High pressure fuel line (supply)
72	9D280	Fuel rail
73	9F593	Fuel injector (4 required)
74	-	Water outlet adapter assembly (front)
75	-	Water outlet adapter assembly (rear)
76	8255	Water outlet connector gasket
77	8A852	Water bypass hose and clamp assembly
78	6758	Crankcase ventilation tube
79	9E470	EGR valve-to-exhaust manifold tube
80	9424	Intake manifold
81	9F479	Manifold absolute pressure (MAP) sensor
82	9E926	Throttle body assembly
83	9G297	Evaporative emission hose
84	9F715	Idle air control valve assembly
85	9D475	EGR valve
86	9D476	EGR valve mounting gasket
87	17K004	Engine lifting eye
88	6049	Cylinder head
89	6051	Cylinder head gasket
90	6010	Cylinder block
91	12A699	Knock sensor

NOTE: During engine repair procedures, cleanliness is extremely important. Foreign material, including any material created while cleaning gasket surfaces may enter the cylinders, oil passages, coolant passages or the oil pan, and cause engine failure.

NOTE: The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if you loosen the pulley. Therefore, the engine must be retimed each time the damper is removed. Otherwise severe engine damage may occur.

NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
