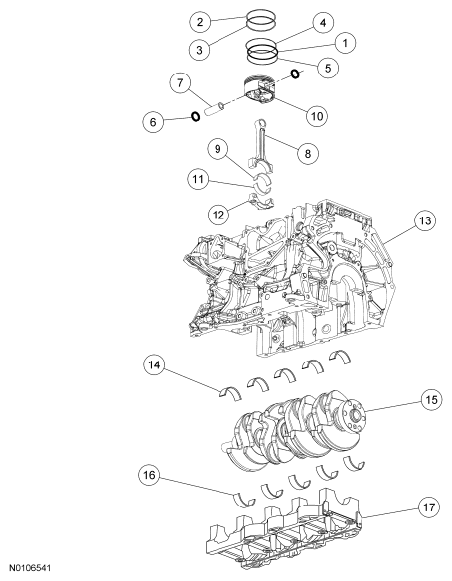

Engine - Lower Engine Block (View 2)
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6161 | Piston oil control spacer (4 required) |
| 2 | 6150 | Piston compression upper ring (4 required) |
| 3 | 6152 | Piston compression lower ring (4 required) |
| 4 | 6159 | Piston oil control upper segment ring (4 required) |
| 5 | 6159 | Piston oil control lower segment ring (4 required) |
| 6 | 6140 | Piston pin retainer (8 required) |
| 7 | 6135 | Piston pin (4 required) |
| 8 | 6200 | Connecting rod (4 required) |
| 9 | 6211 | Connecting rod upper bearing (4 required) |
| 10 | 6110 | Piston (4 required) |
| 11 | 6211 | Connecting rod lower bearing (4 required) |
| 12 | 6210 | Connecting rod cap (4 required) |
| 13 | 6010 | Cylinder block |
| 14 | 6333 | Cylinder block crankshaft main bearing (5 required) |
| 15 | 6303 | Crankshaft |
| 16 | 6333 | Crankshaft main bearing beam bearing (5 required) |
| 17 | 6F098 | Main bearing beam |
