Engine Lubrication Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

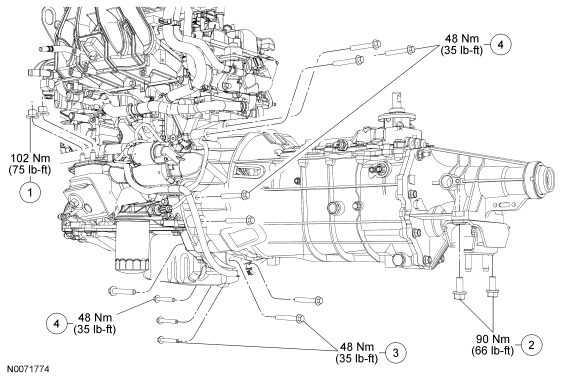

| Item | Part Number | Description |
|---|---|---|
| 1 | N621945 | LH engine support insulator nut (2 required) |
| 2 | 390066 | Transmission mount bolts (2 required) |
| 3 | W500125 | Transmission-to-oil pan bolts (4 required) |
| 4 | W500125 | Transmission-to-cylinder block bolts (7 required) |

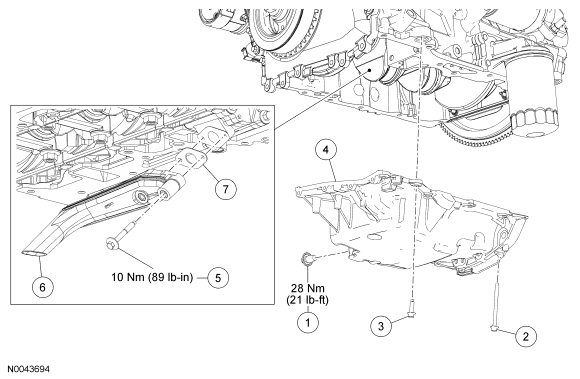

| Item | Part Number | Description |
|---|---|---|
| 1 | 6730 | Oil pan drain plug |
| 2 | W706284 | Oil pan bolt (2 required) |
| 3 | W500224 | Oil pan bolt (11 required) |
| 4 | 6675 | Oil pan |
| 5 | W706282 | Oil pump screen and pickup tube bolt (2 required) |
| 6 | 6622 | Oil pump screen and pickup tube |
| 7 | 6625 | Oil pump screen and pickup tube gasket |

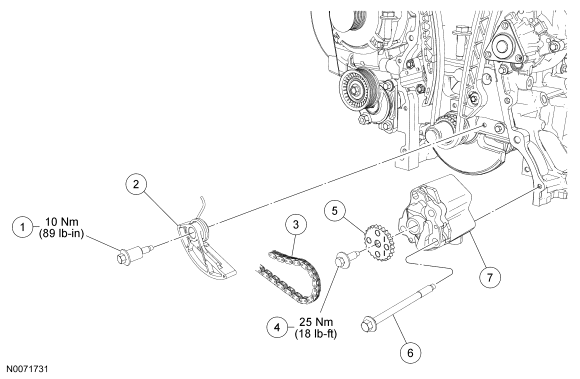

| Item | Part Number | Description |
|---|---|---|
| 1 | W703651 | Oil pump drive chain tensioner bolt |
| 2 | 6C271 | Oil pump drive chain tensioner |
| 3 | 6A895 | Oil pump drive chain |
| 4 | W704397 | Oil pump sprocket bolt |
| 5 | 6652 | Oil pump sprocket |
| 6 | W703647 | Oil pump bolt (4 required) |
| 7 | 6600 | Oil pump |
- For additional information, refer to the procedures in this article.
