Intake Manifold: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

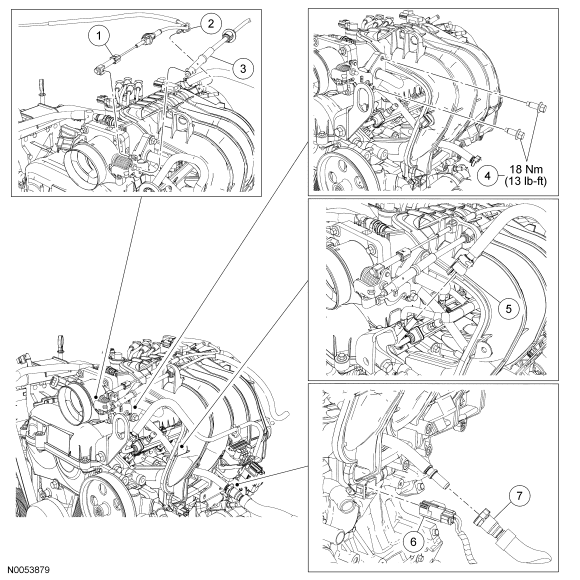

Fig 1: Intake Manifold - Cables & LH Connections With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9A825	Speed control cable
2	N802768	Speed control cable position retainer clip
3	9A758	Accelerator control cable
4	W500222	EGR tube bolts (2 required)
5	9J280	Fuel supply tube
6	-	Knock sensor (KS) electrical connector (part of 14A290)
7	9Y476	Evaporative emissions (EVAP) vent tube quick connect coupling

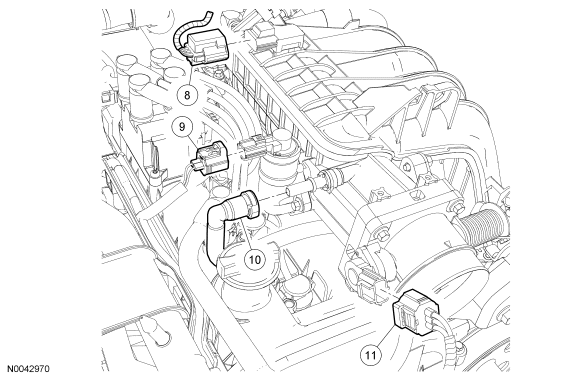

Fig 2: Intake Manifold - RH Connections

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
8	-	Manifold absolute pressure (MAP) sensor electrical connector (part of 12B637)
9	-	Idle air control (IAC) valve electrical connector (part of 12B637)
10	9G297	Vacuum tube quick connect coupling
11	-	Throttle position (TP) sensor electrical connector (part of 12B637)

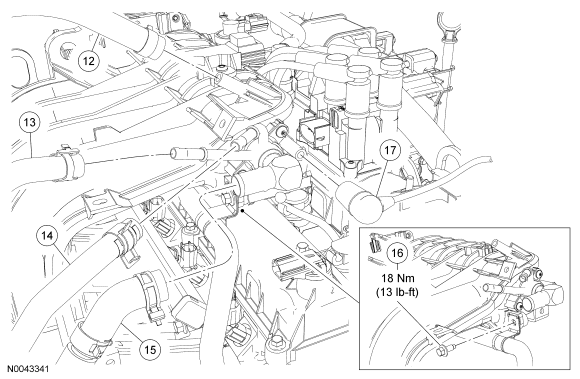

Fig 3: Intake Manifold - Rear Connections With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	381298	Brake booster vacuum hose
13	8C633	Coolant hose
14	9Y439	Coolant hose
15	6758	Crankcase breather hose
16	W500211	EGR tube support retainer bolt
17	9E498	Vacuum hose

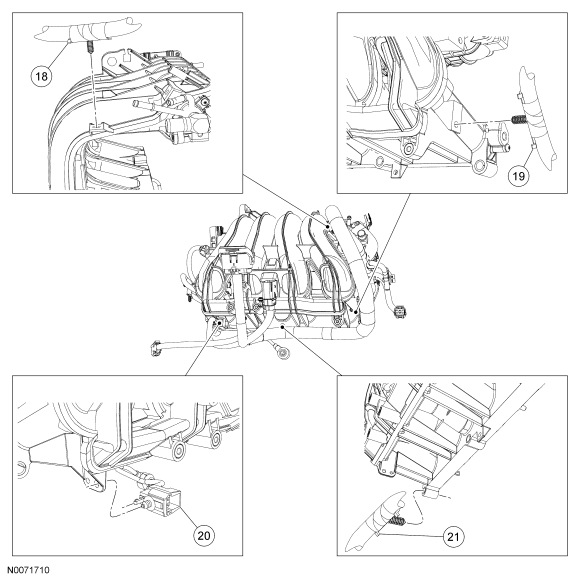

Fig 4: Intake Manifold - Wiring Harness Retainers

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
18	13A506	Wiring harness retainer (part of 12B637)
19	13A506	Wiring harness retainer (part of 12B637)
20	-	KS electrical connector retainer (part of 12A699)
21	13A506	Wiring harness retainer (part of 12B637)

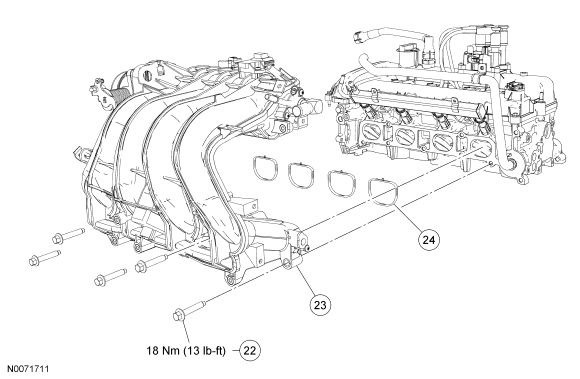

Fig 5: Intake Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
22	W500311	Intake manifold bolt (5 required)
23	9424	Intake manifold
24	9441	Intake manifold gasket (4 required)
