Valve Cover: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket Remover ZC-30	-

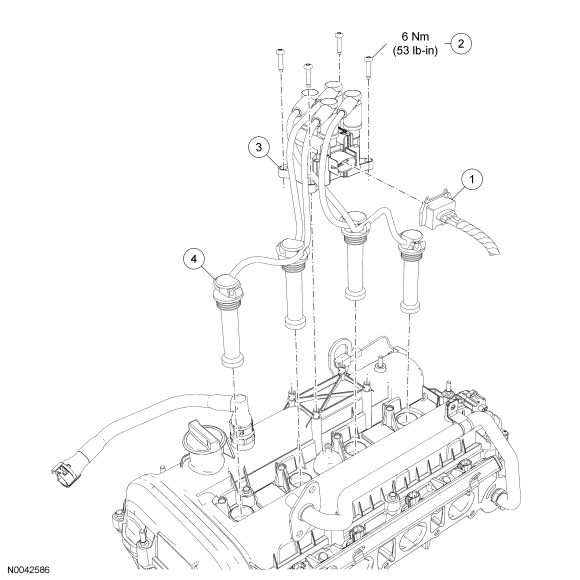

Fig 1: Valve Cover - Ignition Coil and Wires With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Ignition coil electrical connector (part of 12B637)
2	W505575	Ignition coil bolt (4 required)
3	12029	Ignition coil
4	-	Spark plug wire (4 required)

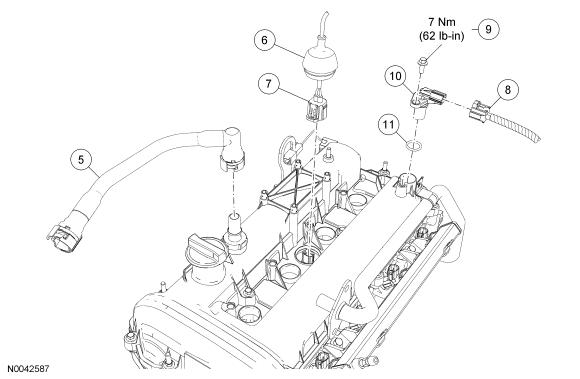

Fig 2: Valve Cover - Connections With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	6758	Crankcase breather tube
6	-	Cylinder head temperature (CHT) sensor cover (part of 12B637)
7	-	CHT sensor electrical connector (part of 12B637)
8	-	Camshaft position (CMP) sensor electrical connector (part of 12B637)
9	W701219	CMP sensor bolt
10	12K073	CMP sensor
11	-	CMP sensor O-ring seal

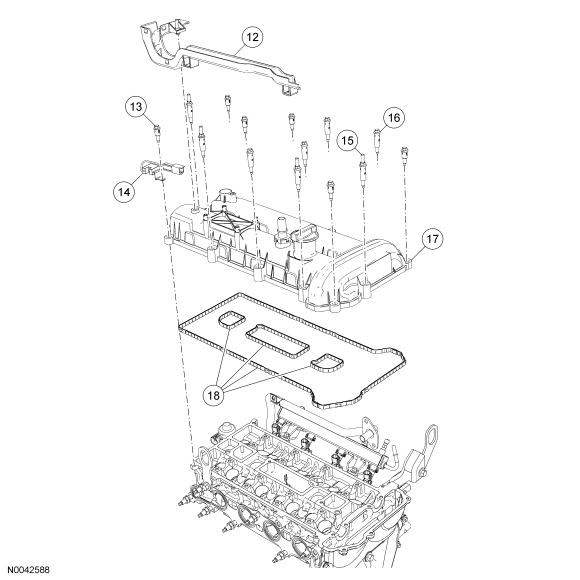

Fig 3: Valve Cover

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	14A099	Wiring harness shield/support bracket
13	6C295	Valve cover bolt (short shoulder) (6 required)
14	18801	Radio ignition interference capacitor
15	-	Valve cover stud bolt (4 required)
16	-	Valve cover bolt (medium shoulder) (4 required)
17	6K272	Valve cover
18	6K620	Valve cover seals (4 required)
