Power Trunk Motor Assembly Connector - C4200
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

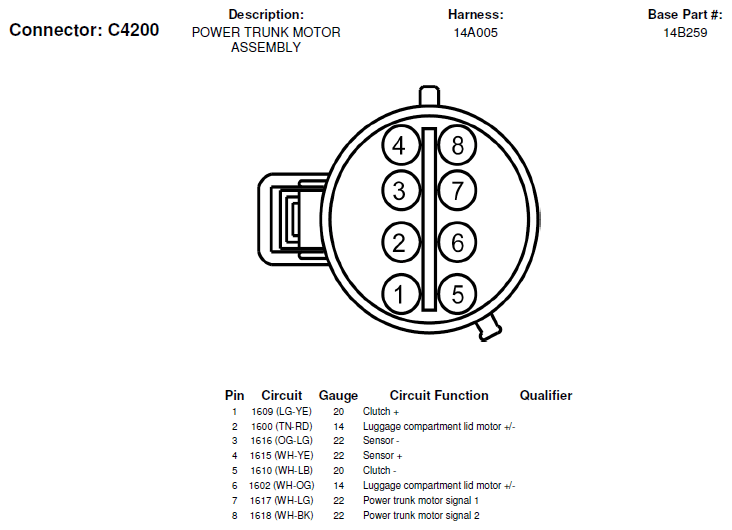

Fig 1: Power Trunk Motor Assembly Connector End View (C4200)
