Wheel Speed Sensor - Front: Notes

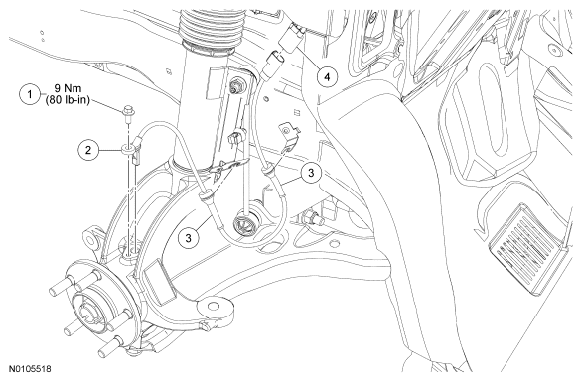

Fig 1: Wheel Speed Sensor Removal And Installation -- Front With Torque Specifications
G06256254Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500012 Wheel speed sensor bolt
2 2C204 Wheel speed sensor
3 - Wheel speed sensor retainer (part of 2C204)
4 - Wheel speed sensor electrical connector (part of 14290)
