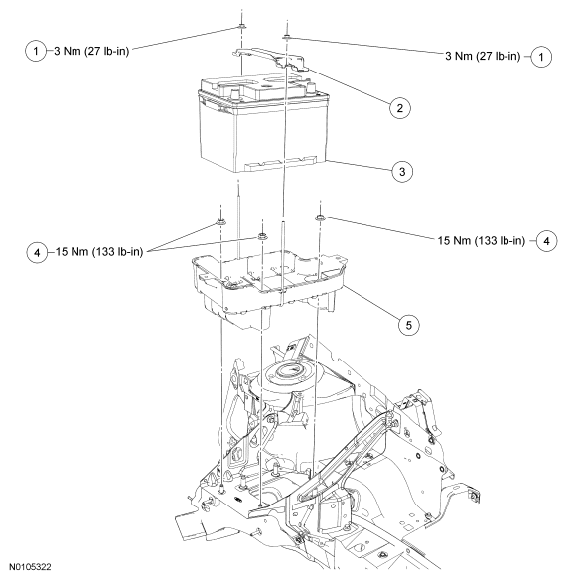

Battery and Battery Tray - Exploded View
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W701694 |
Battery clamp nuts |
| 2 |
10B684 |
Battery clamp |
| 3 |
10655 |
Battery |
| 4 |
W700069 |
Battery tray nuts (3 required) |
| 5 |
10723 |
Battery tray |
- For additional information, refer to the procedures in this information.
