PINPOINT TEST FD: Brake Pedal Inputs: Introduction

WARNING: This page is about a different variant/trim than selected.

This pinpoint test is intended to diagnose the following:

brake pedal position (BPP) switch (13480)
harness circuits: B+, BPP and BPS
powertrain control module (PCM) (12A650)

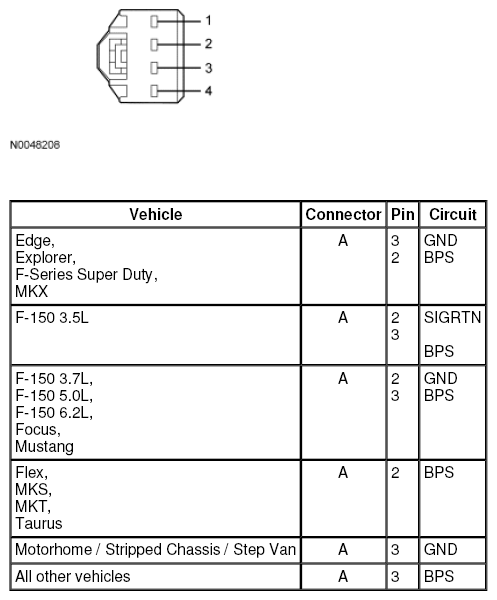

Fig 1: Identifying Brake Pedal Position (BPP) Switch Connector
Courtesy of FORD MOTOR CO.

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES article.

Vehicle	Connector	Pin	Circuit
E-Series 6.8L	170 PIN	E65	BPS
E-Series 6.8L	170 PIN	B8	BPP
Edge 2.0L, Explorer 2.0L, Focus	154 PIN	B16	BPS
Edge 2.0L, Explorer 2.0L, Focus	154 PIN	B30	BPP
F-150 3.5L	198 PIN	B7	SIGRTN
		B93	BPS
		B66	BPP
Fiesta	128 PIN	B2	BPP
Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, Taurus 4V 3.5L	190-PIN	B47	BPS
Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, Taurus 4V 3.5L	190-PIN	B46	BPP
Fusion 3.5L, MKZ	140 PIN	B47	BPS
Fusion 3.5L, MKZ	140 PIN	B46	BPP
Motorhome / Stripped Chassis / Step Van	190-PIN	B25	BPS
All other vehicles	190-PIN	B46	BPS
All other vehicles	190-PIN	B13	BPP
