Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> C2891 A/C Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

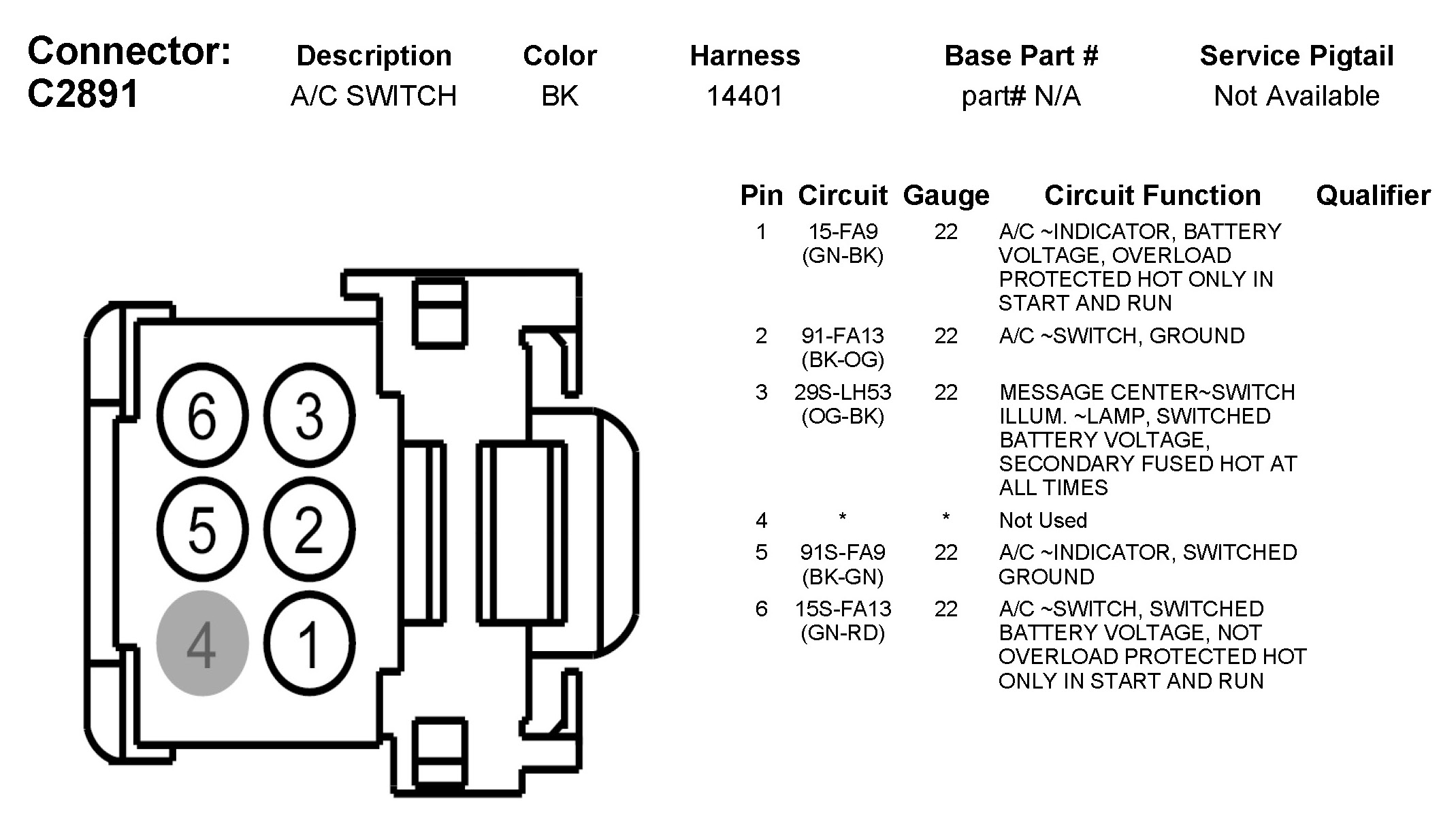

C2891 A/C Switch
