Engine Temperature Sensor: Service and Repair




Cylinder Head Temperature (CHT) Sensor









Removal and Installation

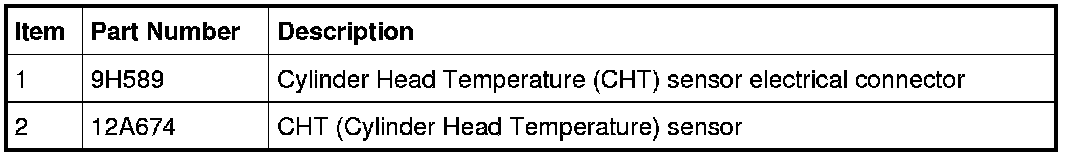

1. Pull back the Cylinder Head Temperature (CHT) sensor cover and disconnect the electrical connector.

2. Remove the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 12 Nm (106 lb-in).


3. To install, reverse the removal procedure.
