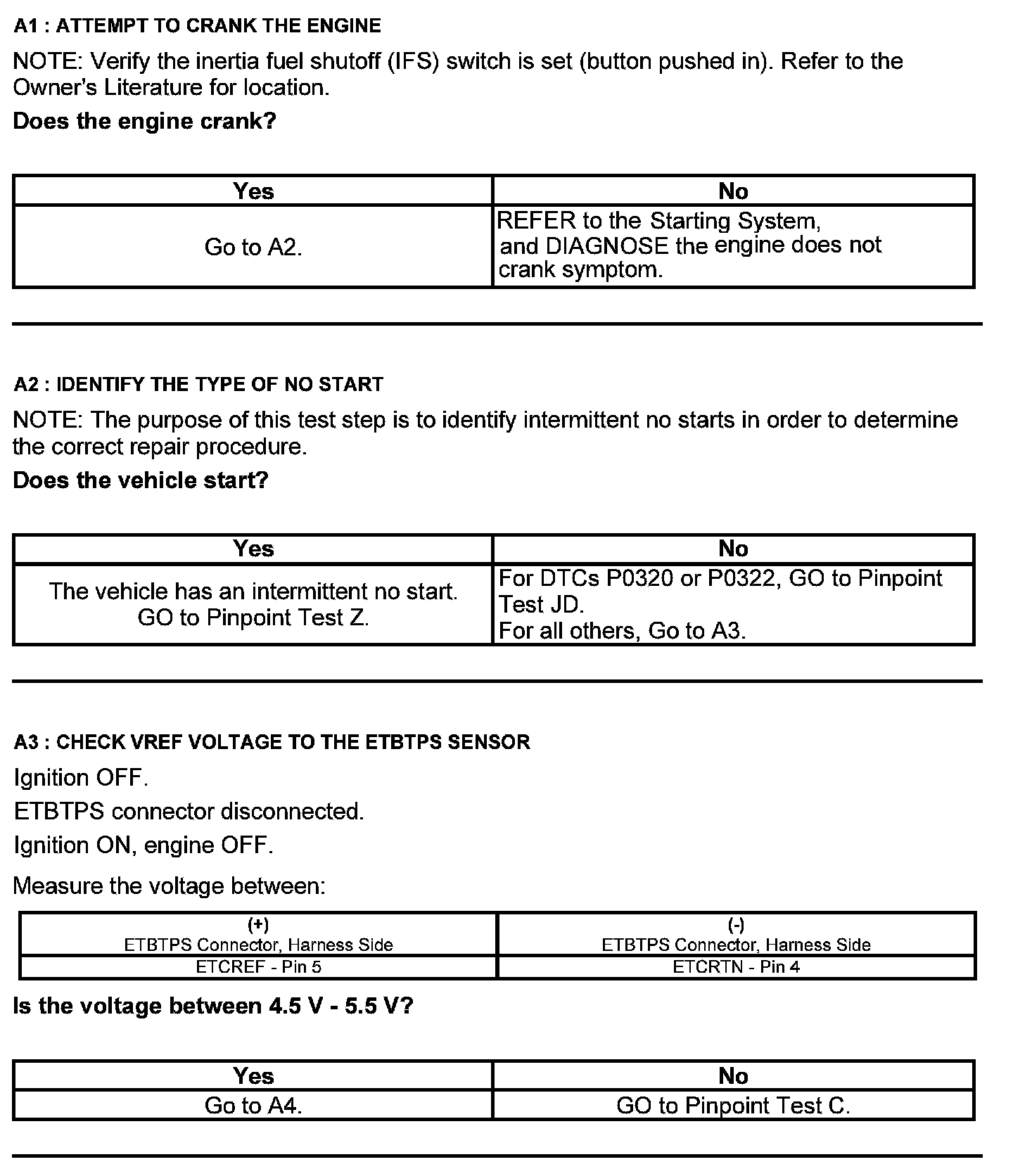

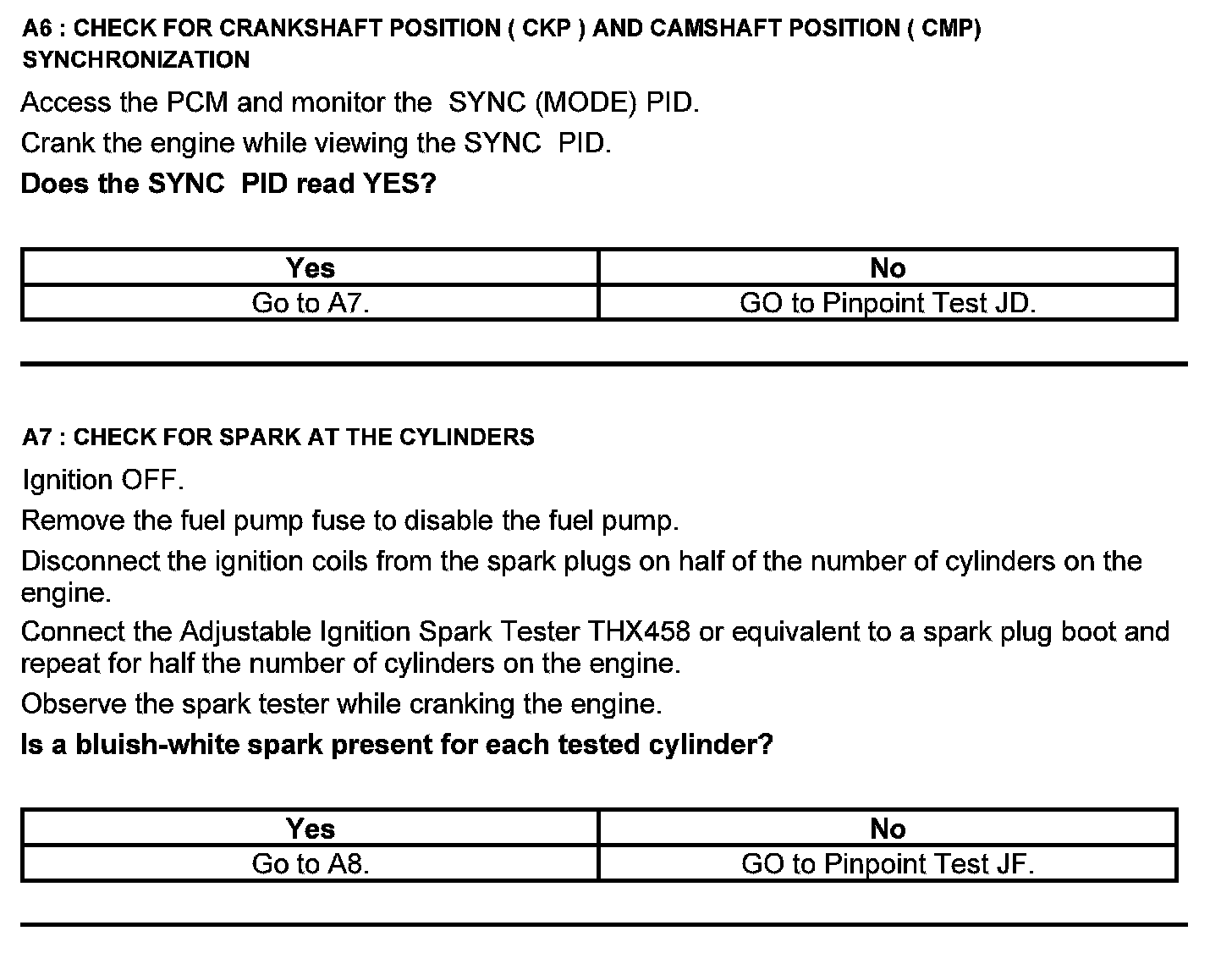

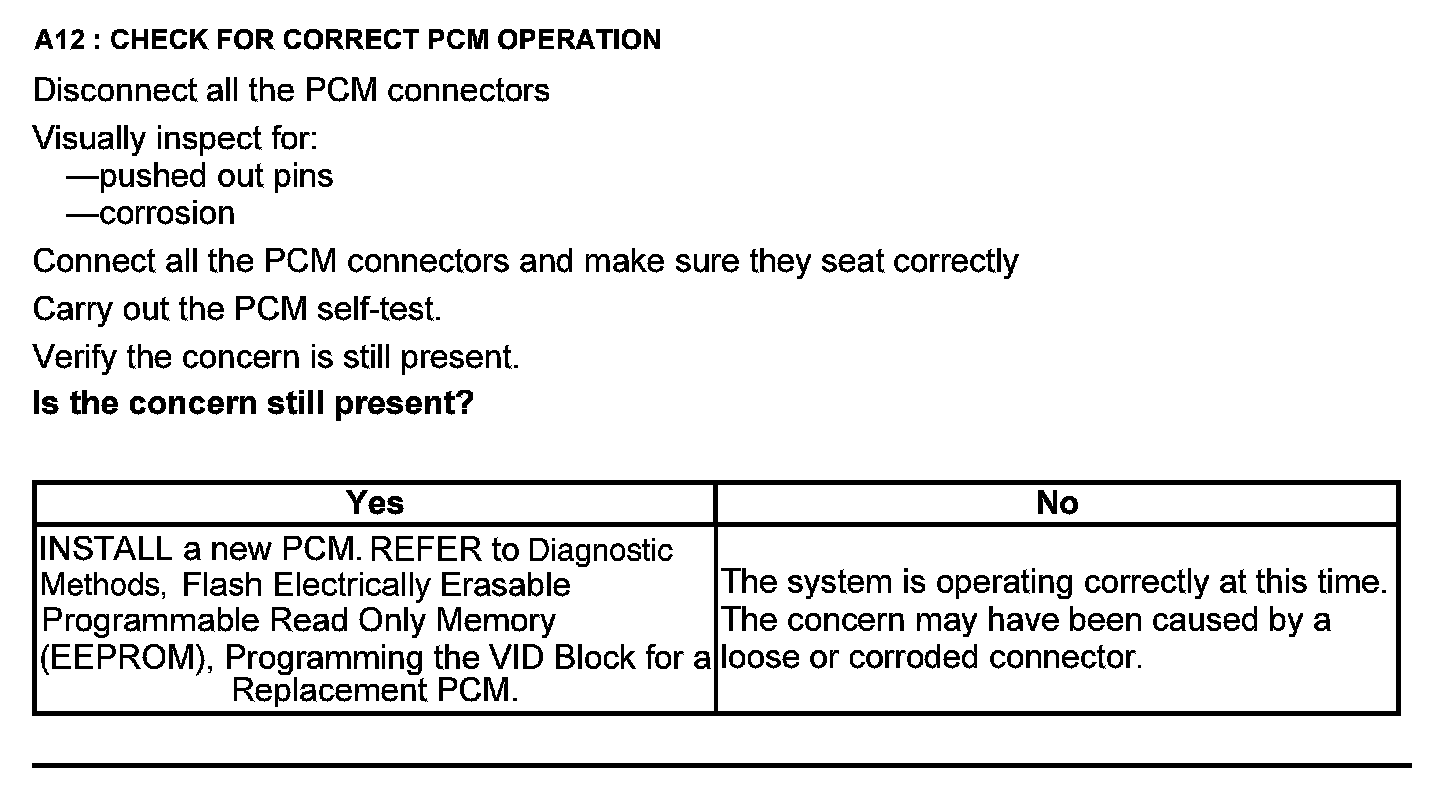

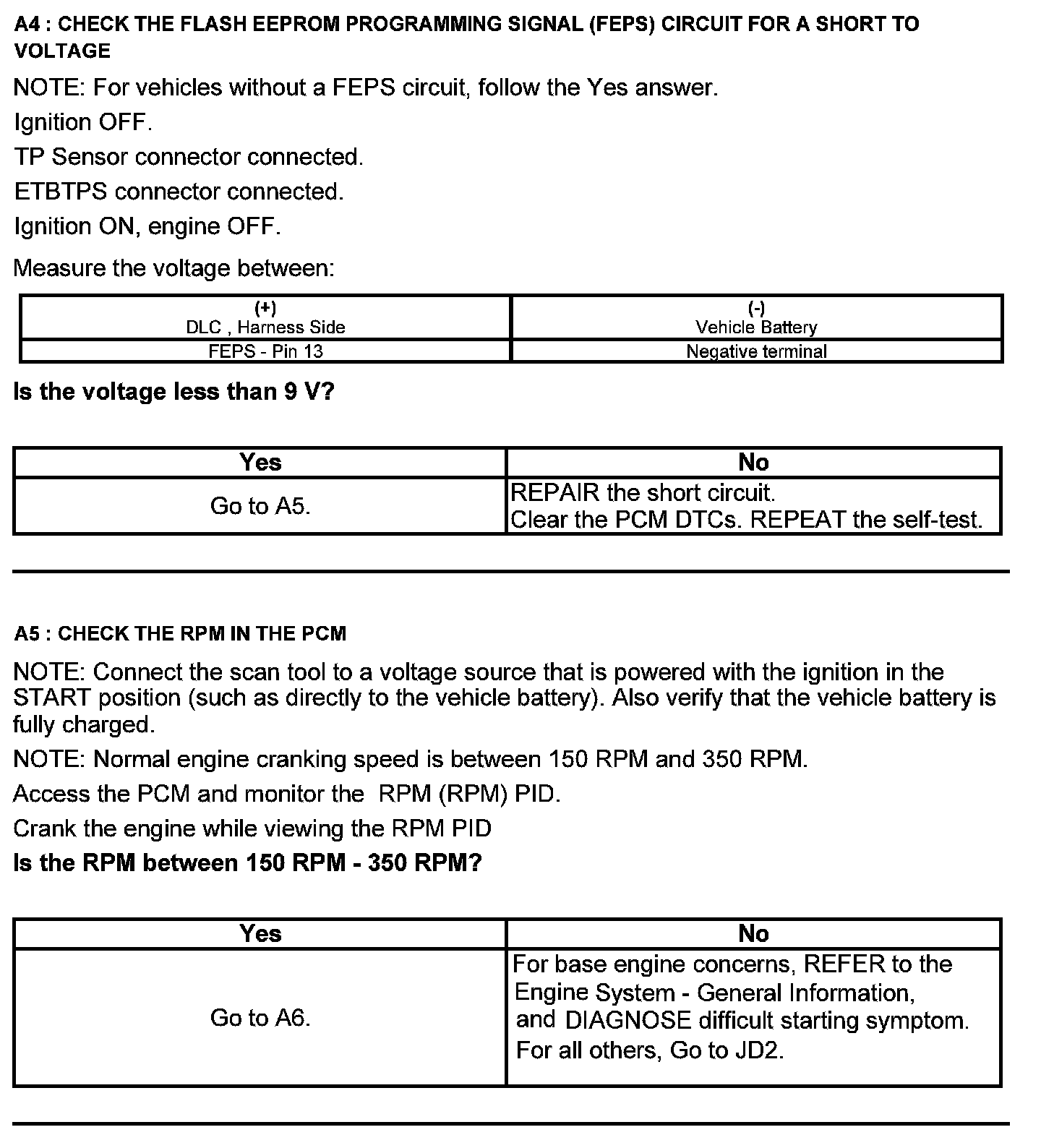

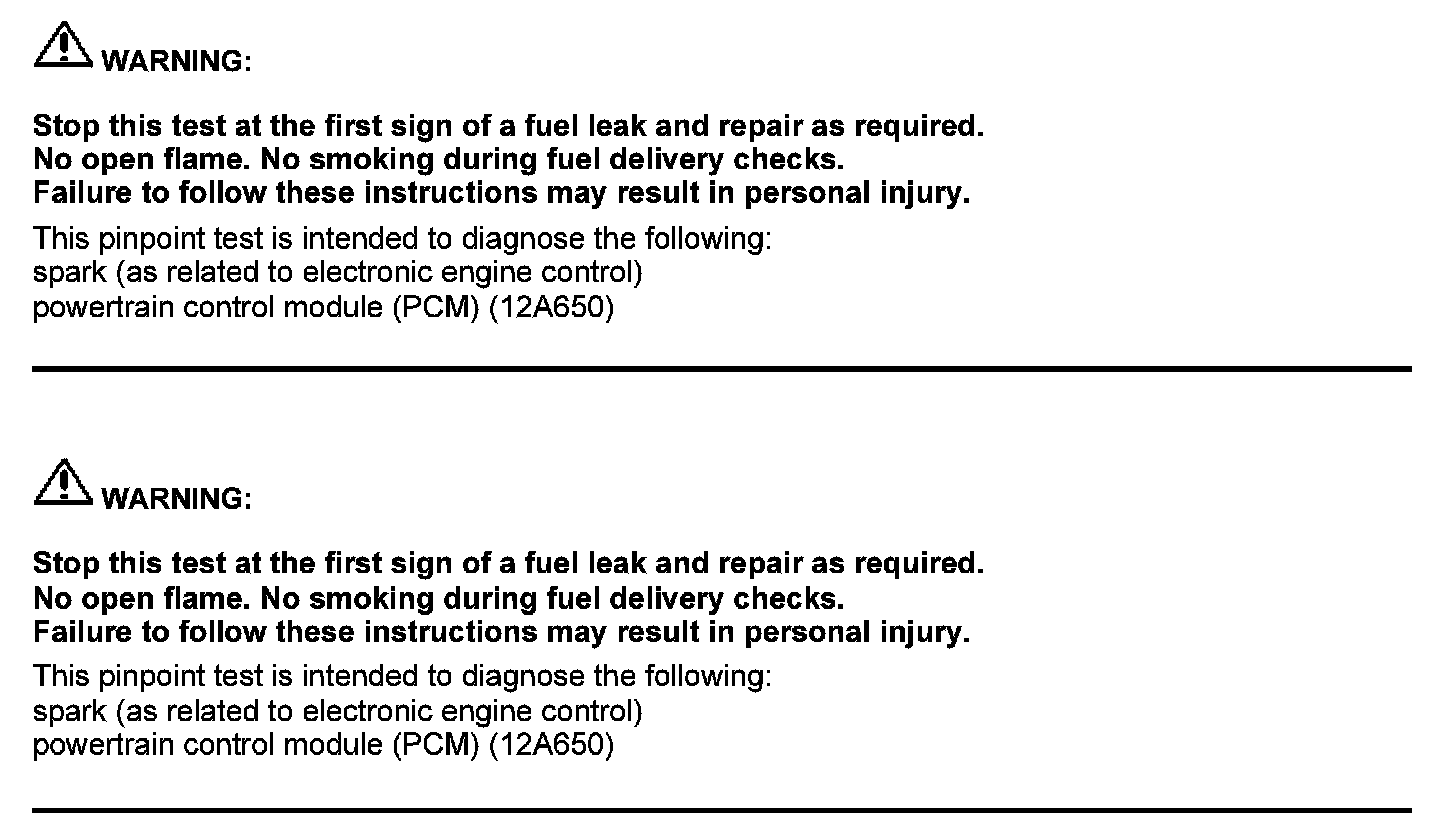

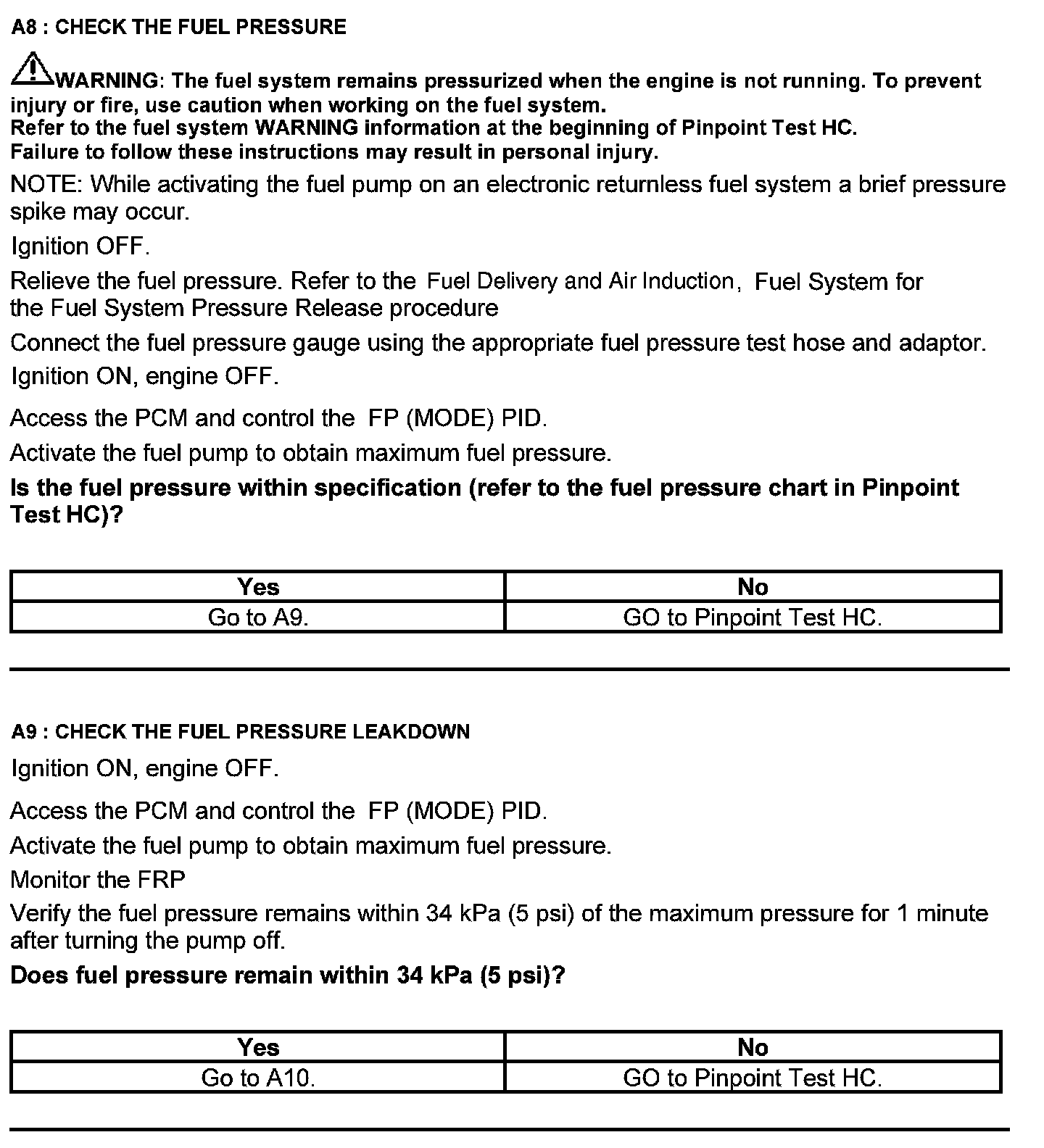

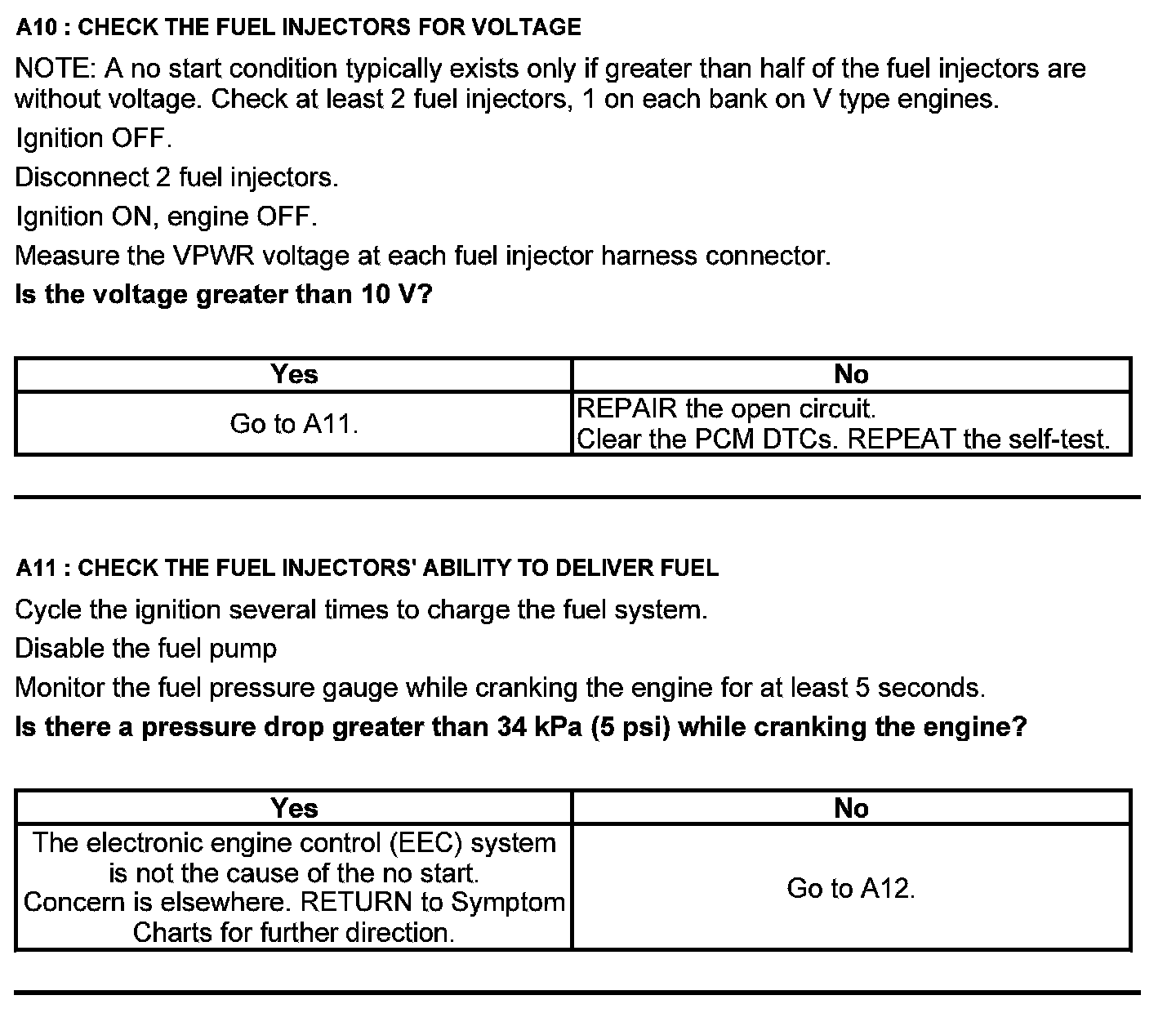

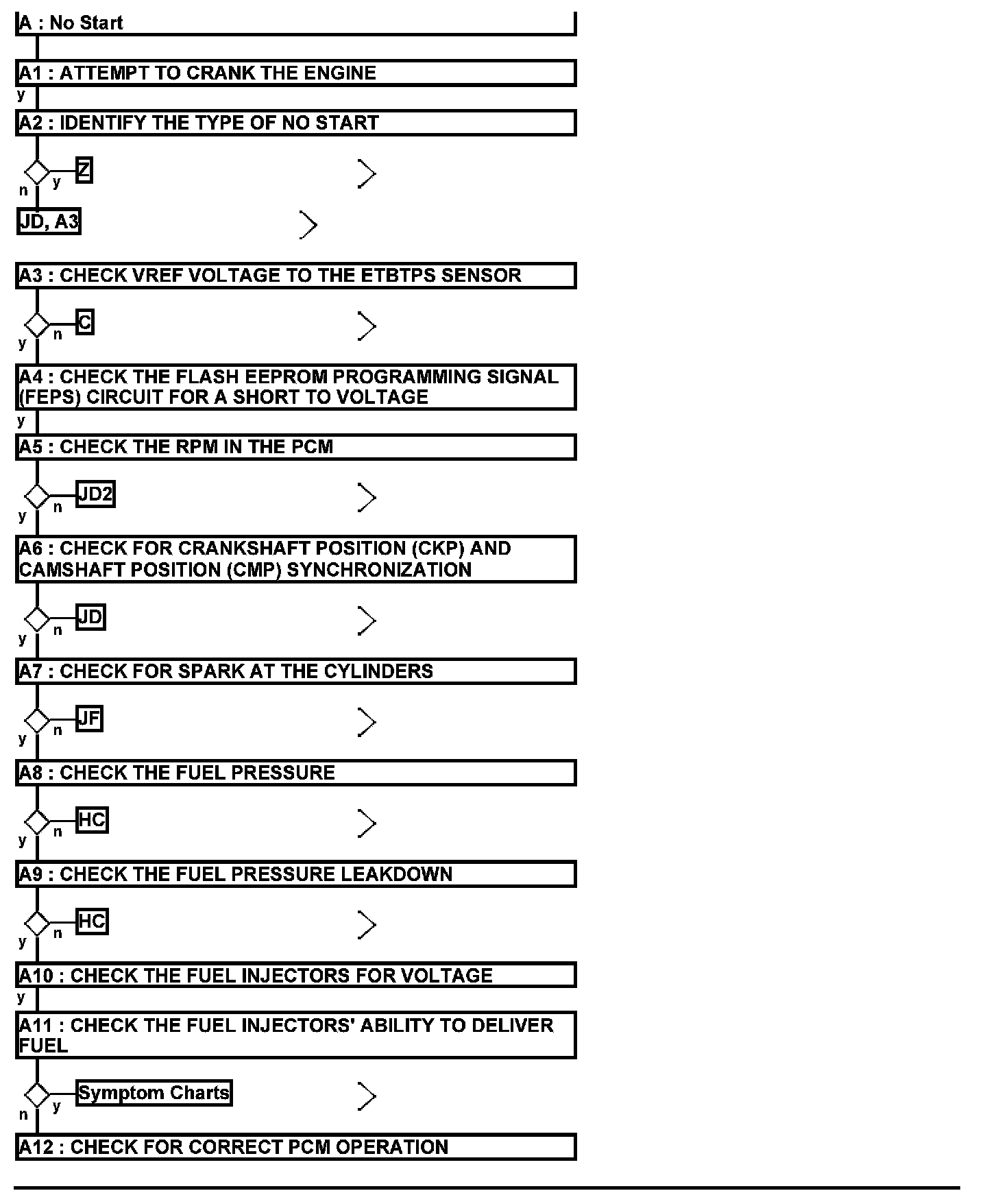

Test A: No Start



No Start

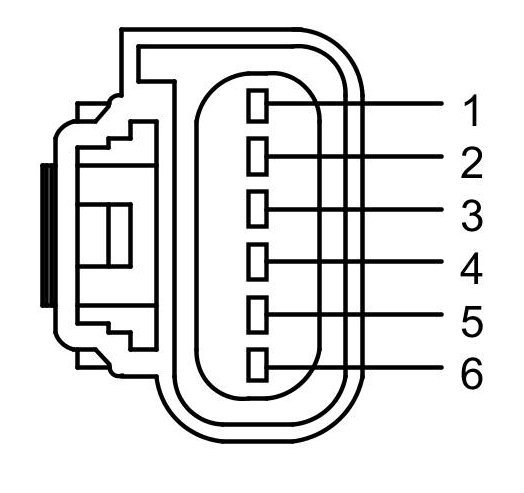

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

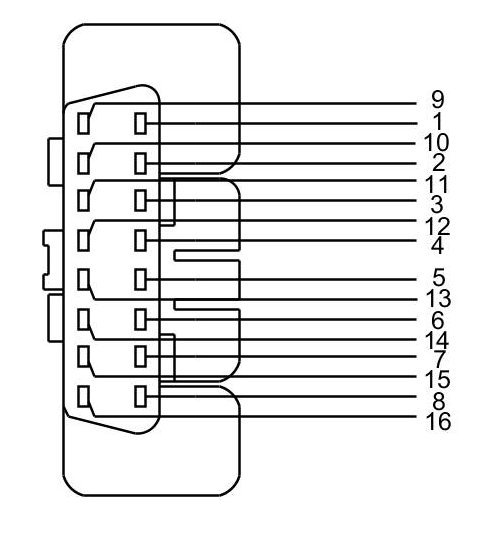

Data Link Connector (DLC)





Harness Side
