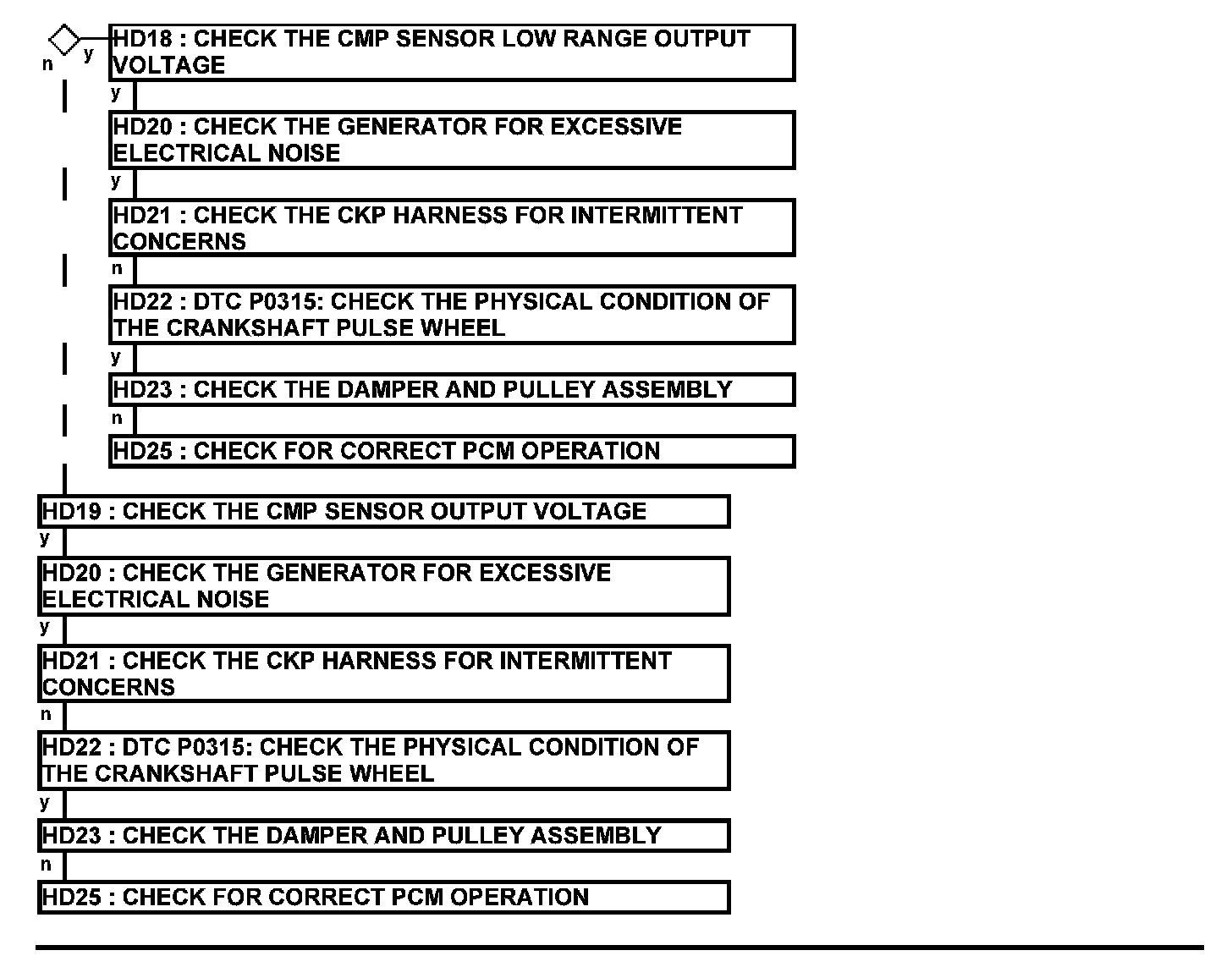

Test HD: Misfire Detection Monitor

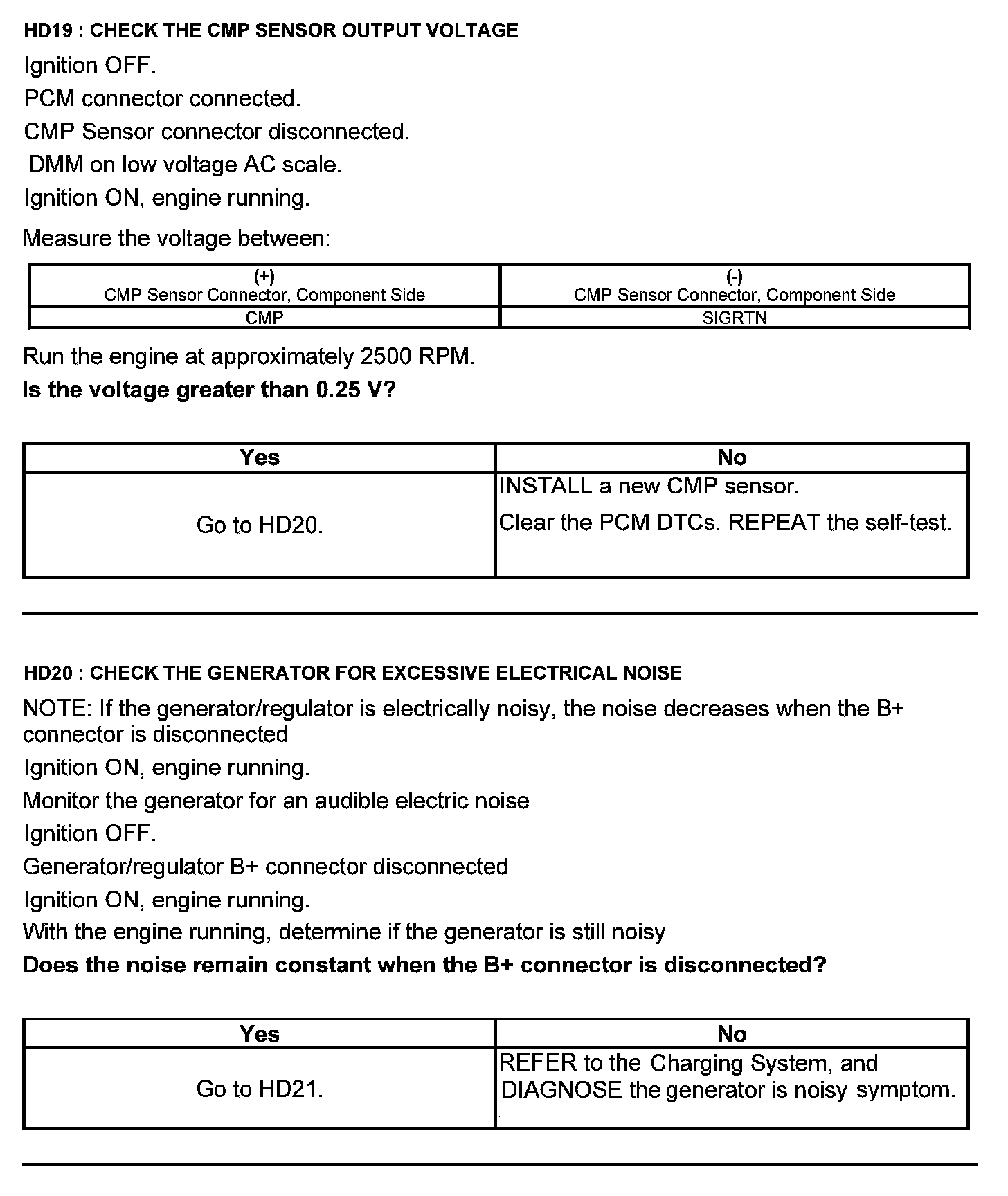

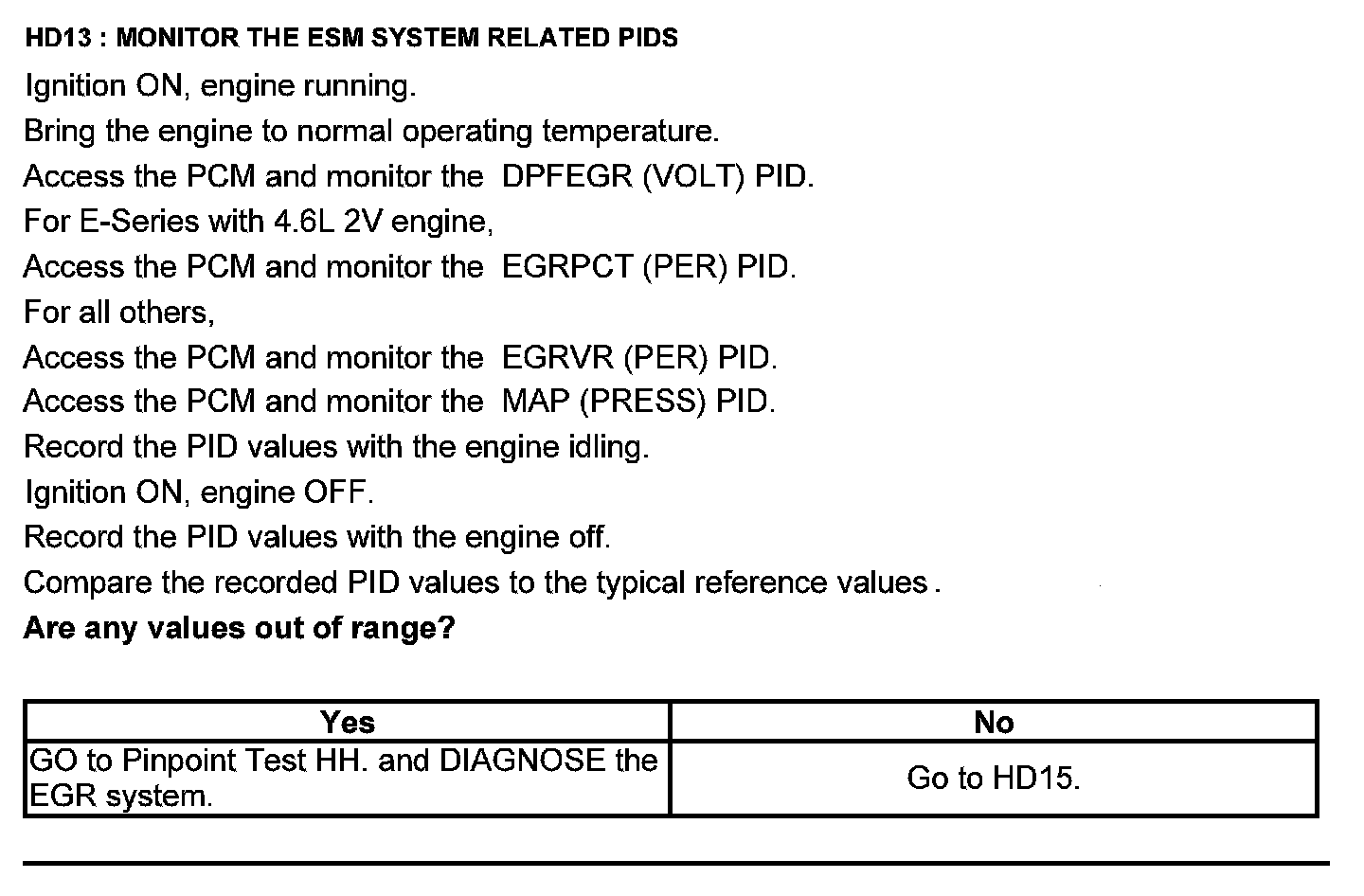

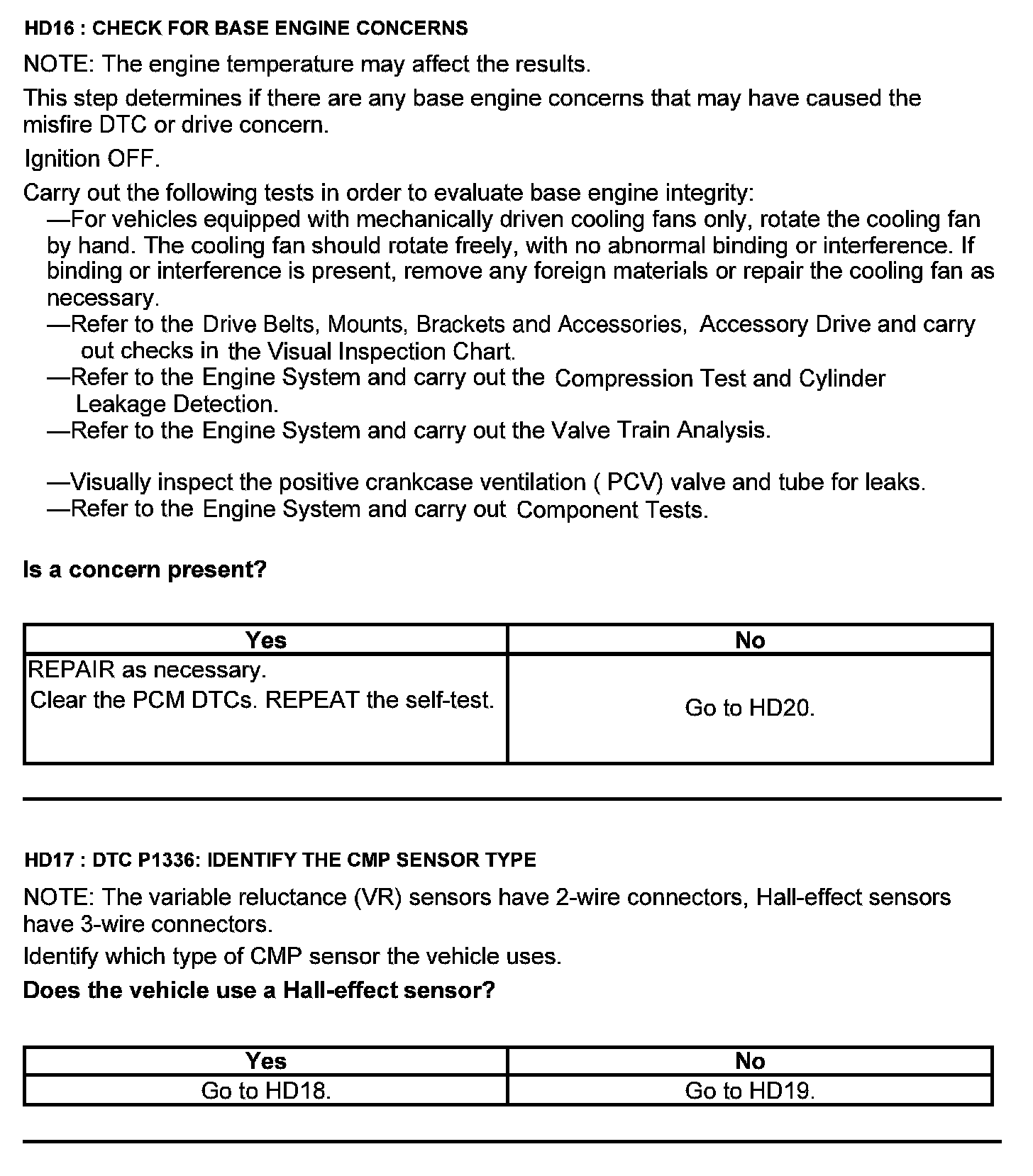

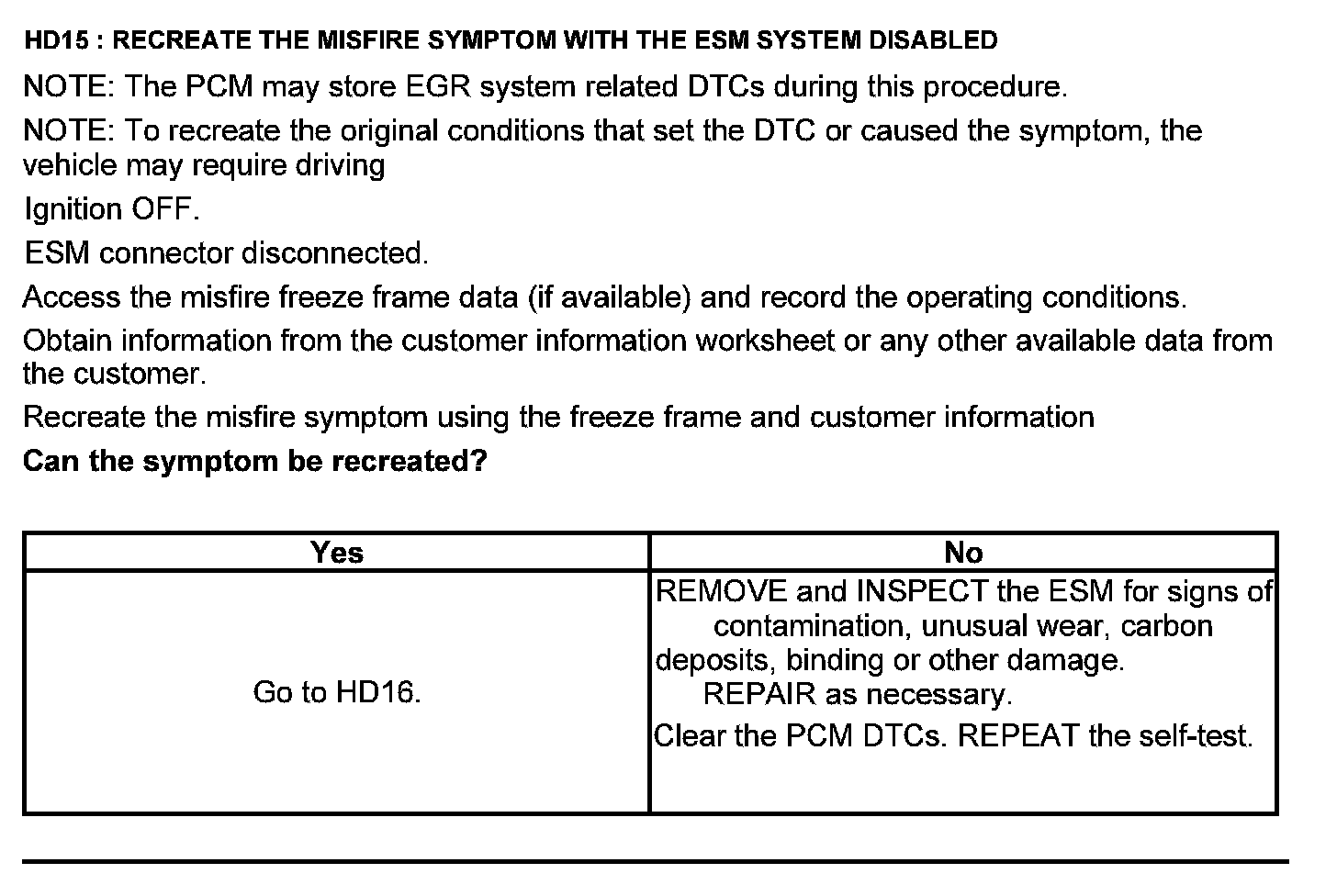

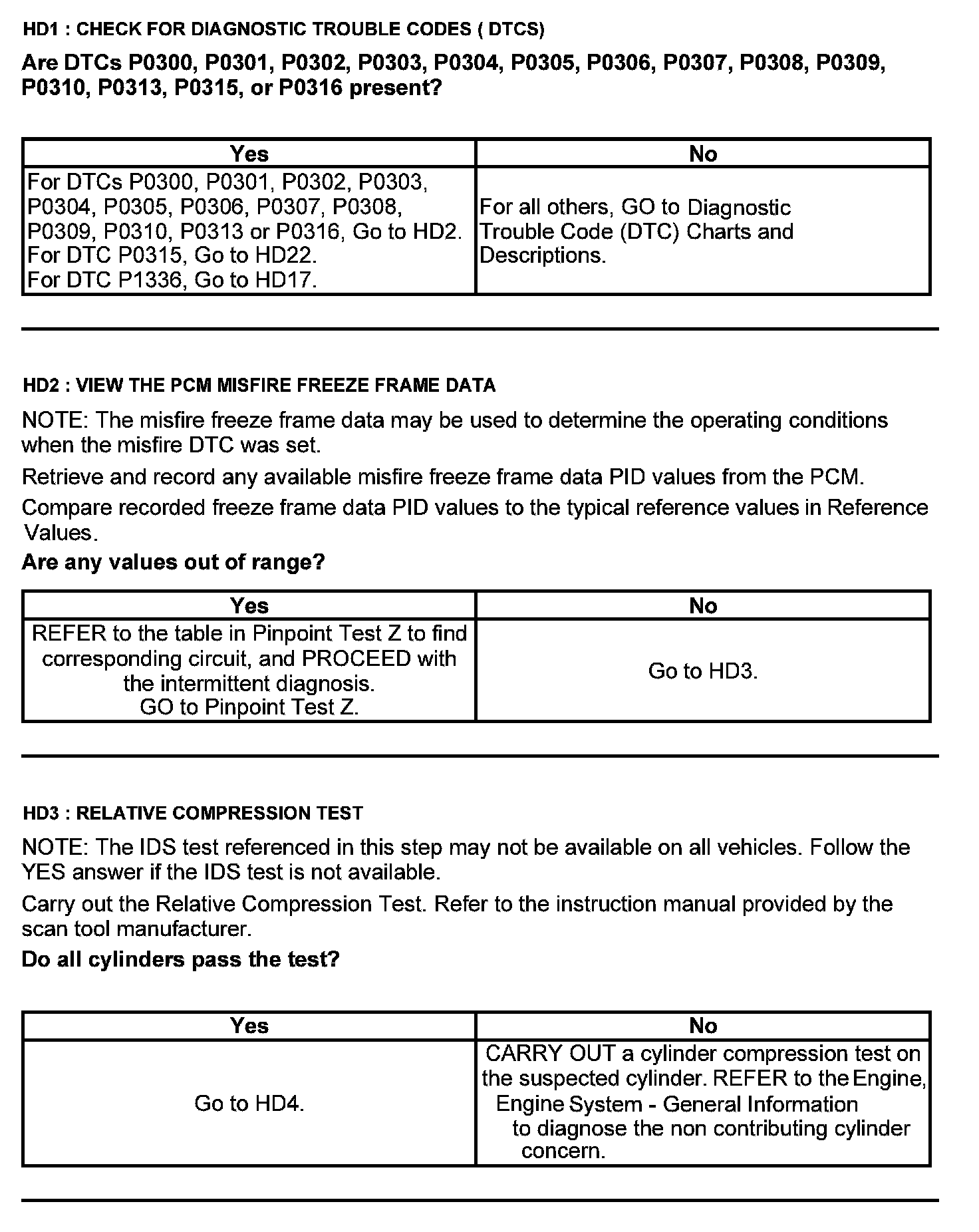

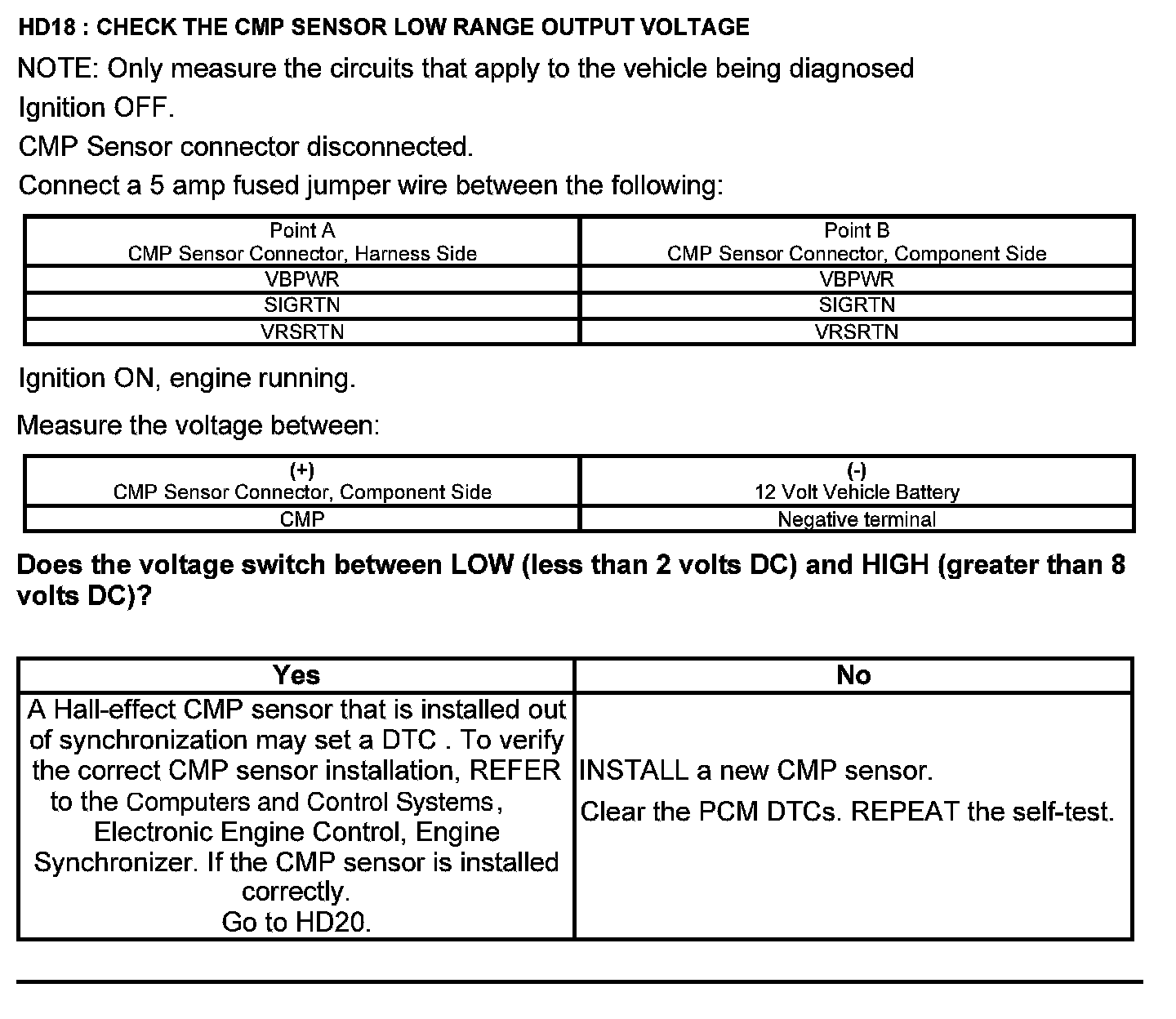

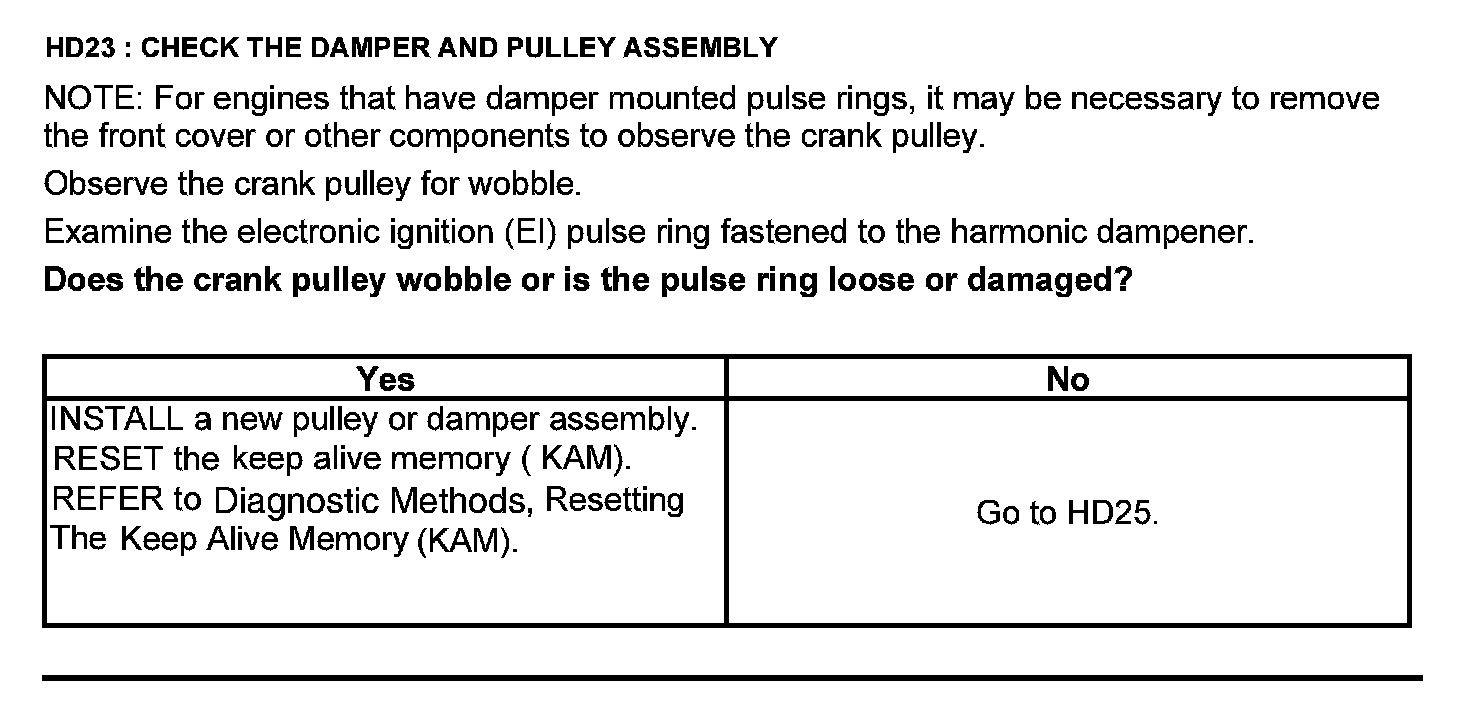

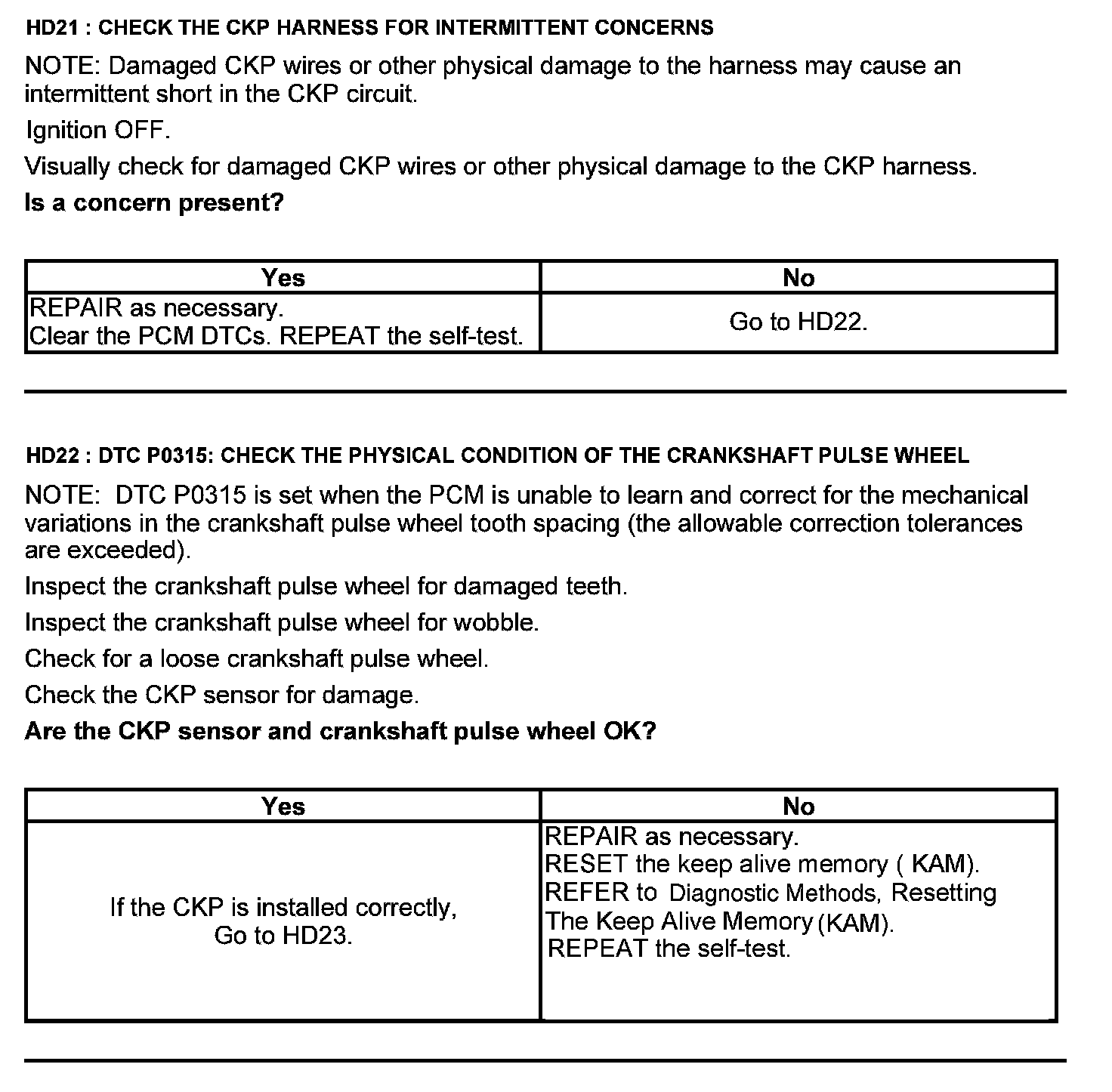

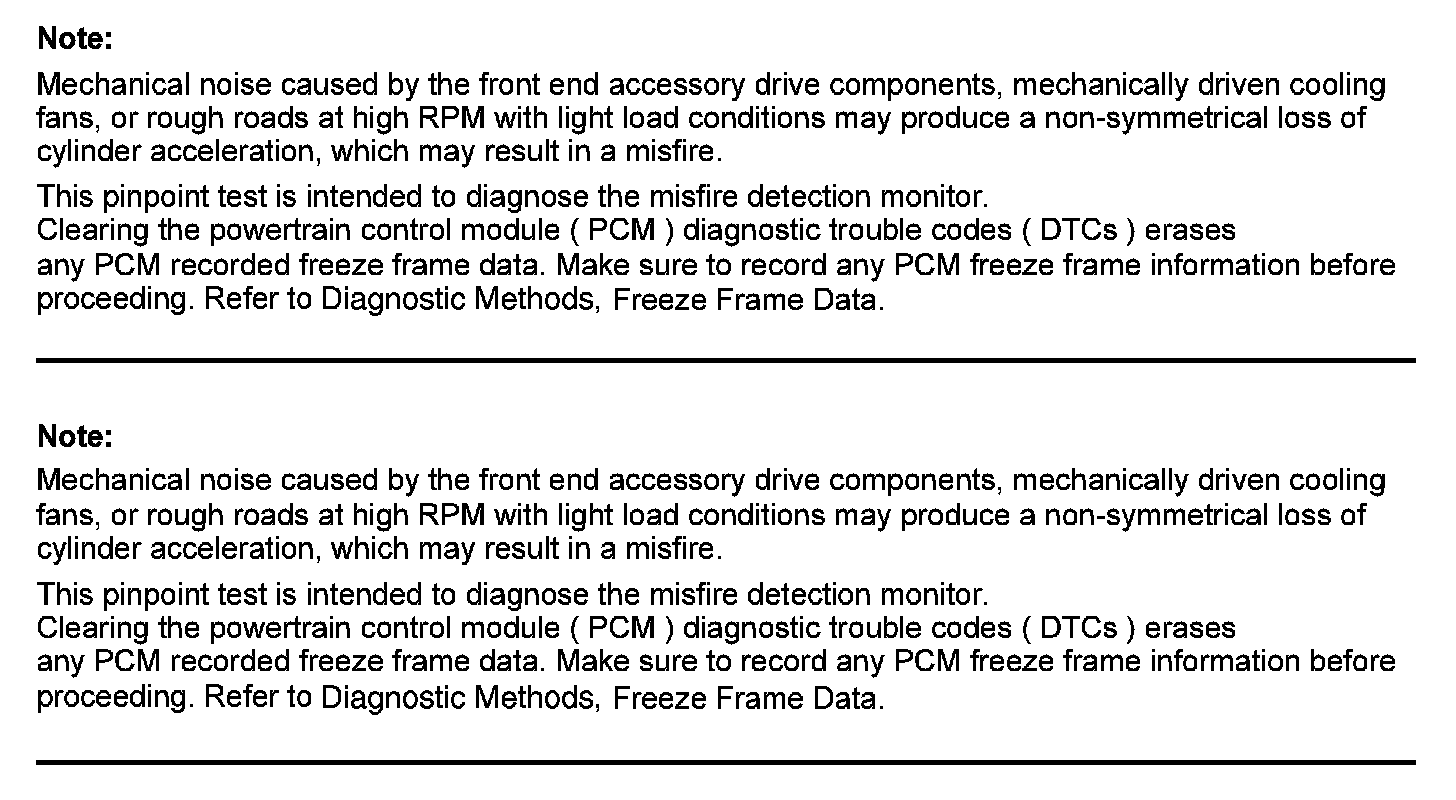

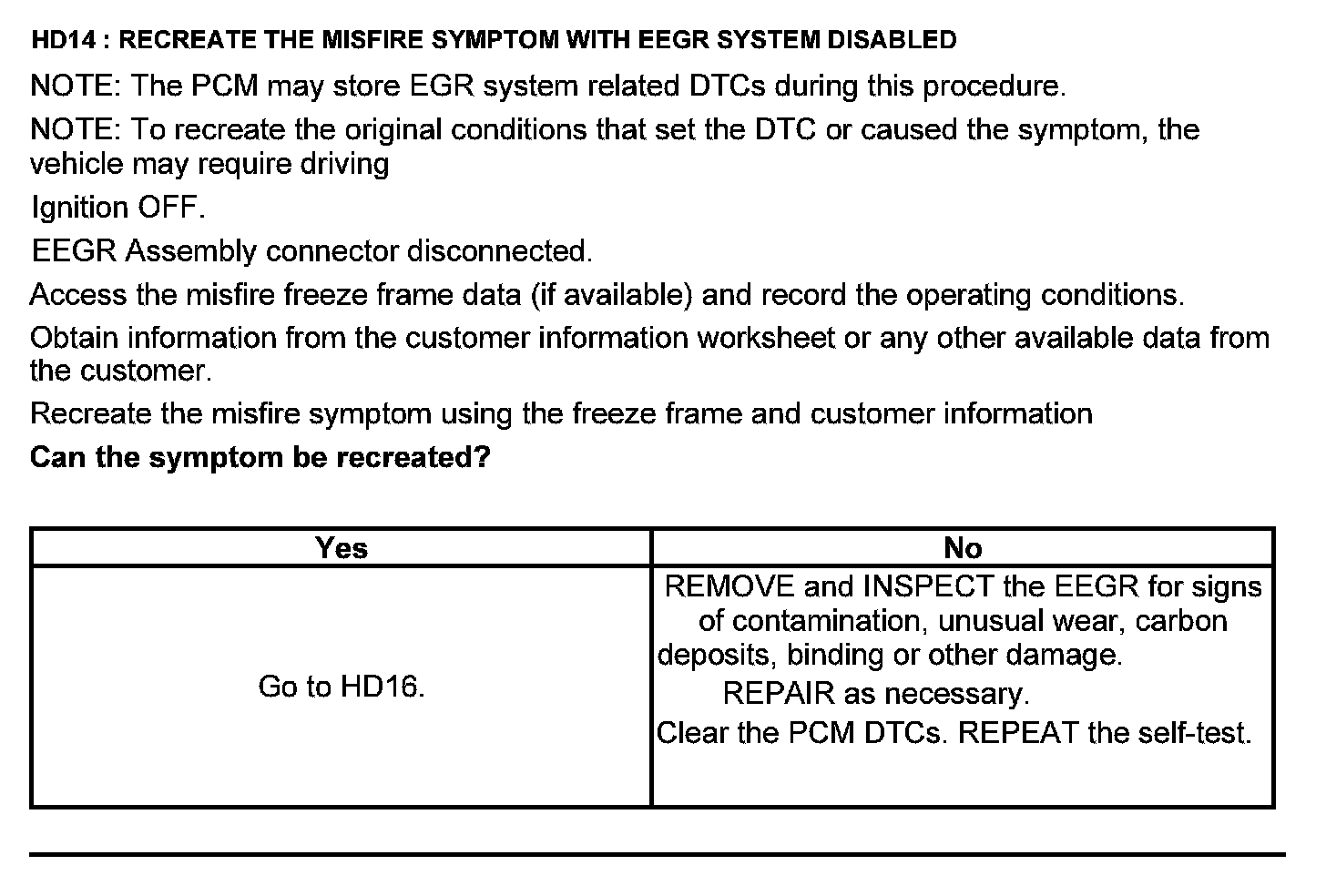

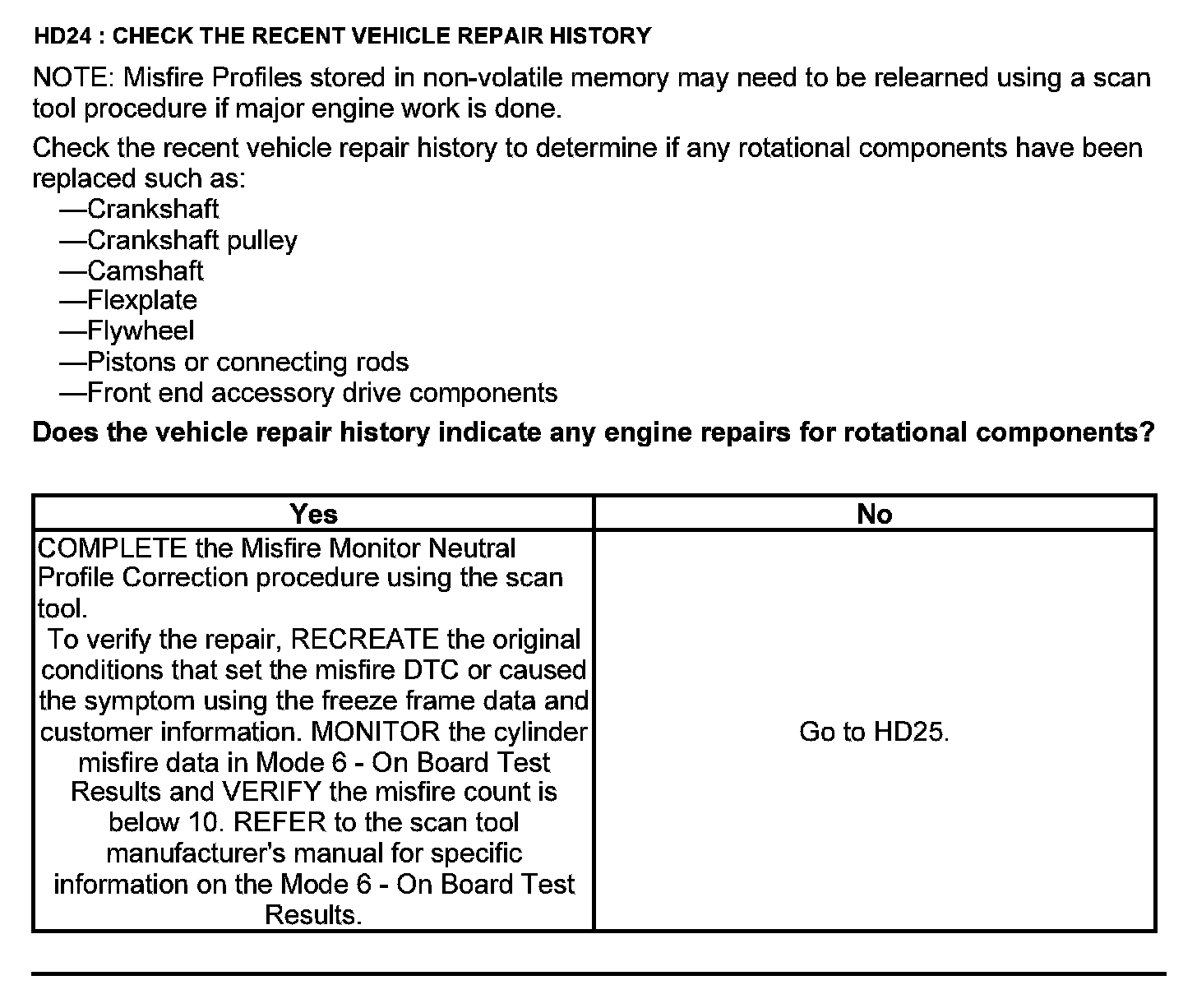

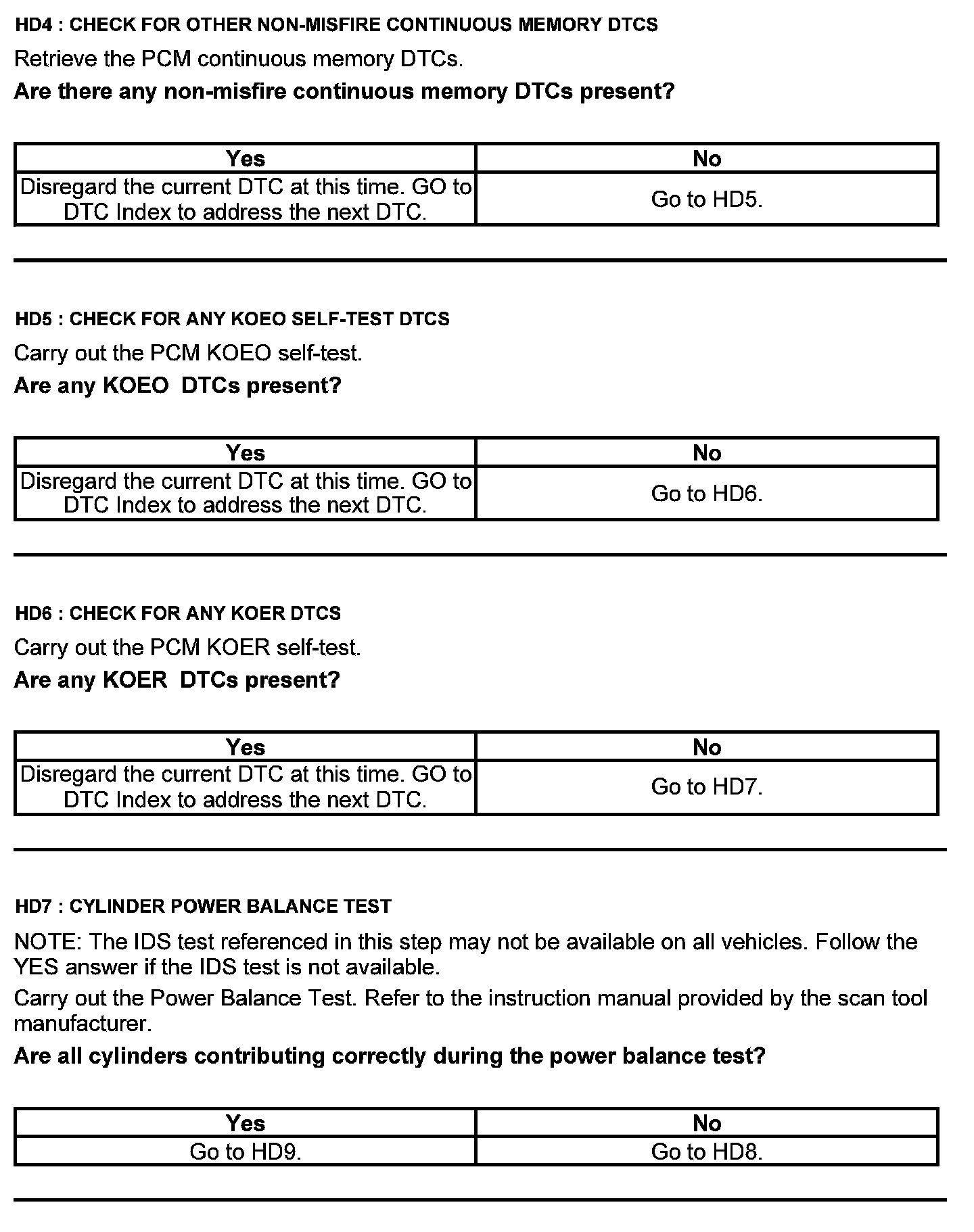

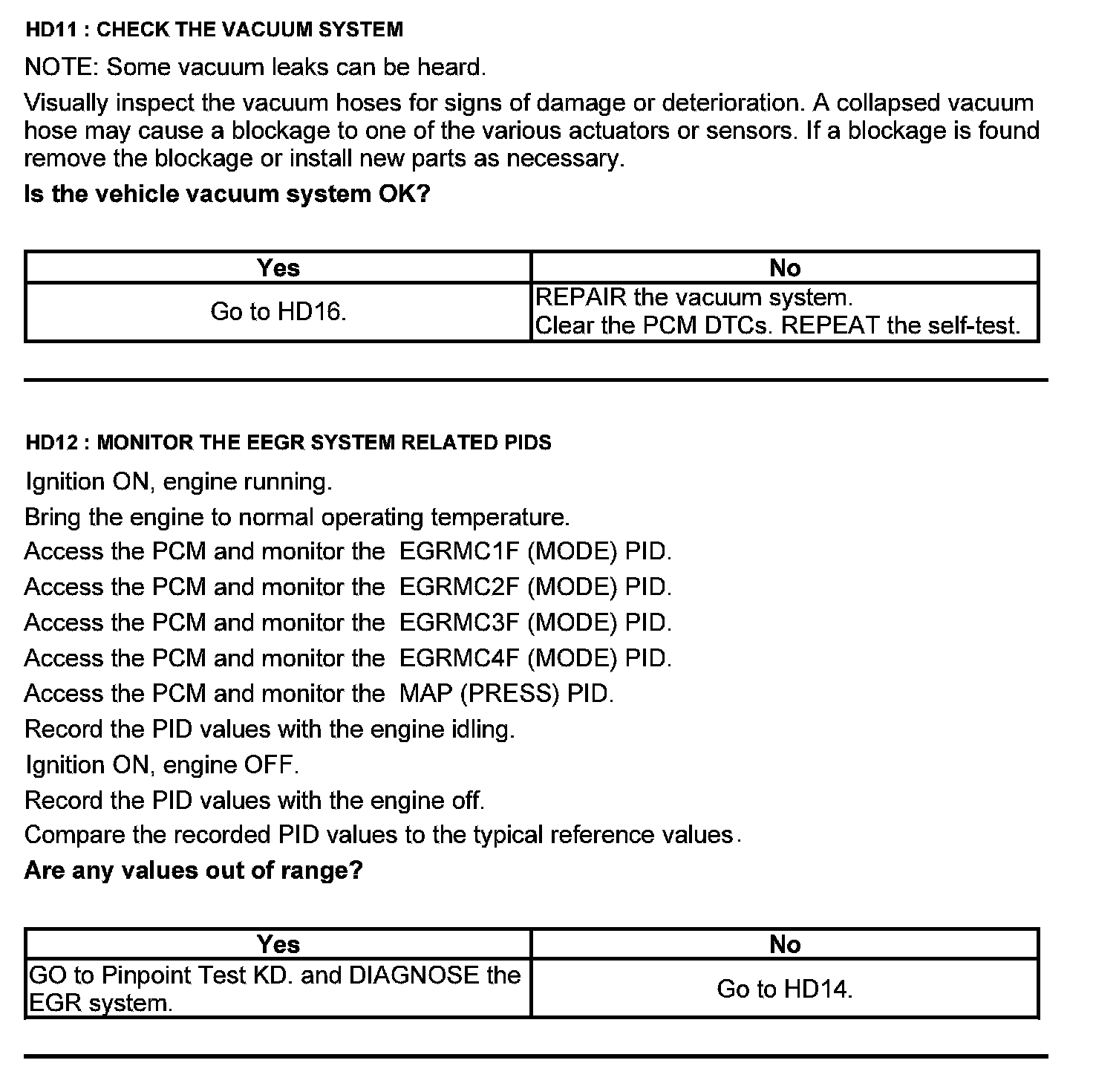

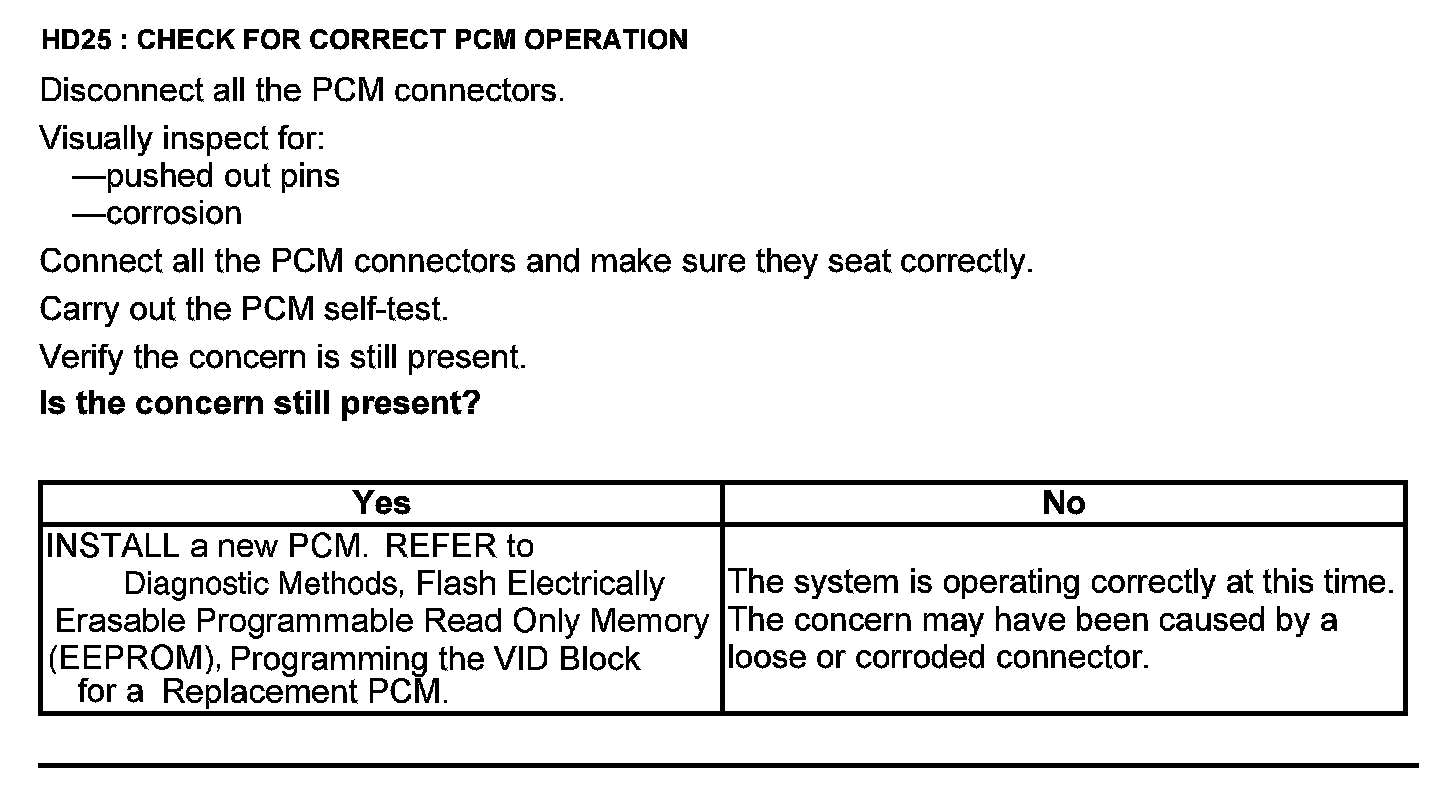

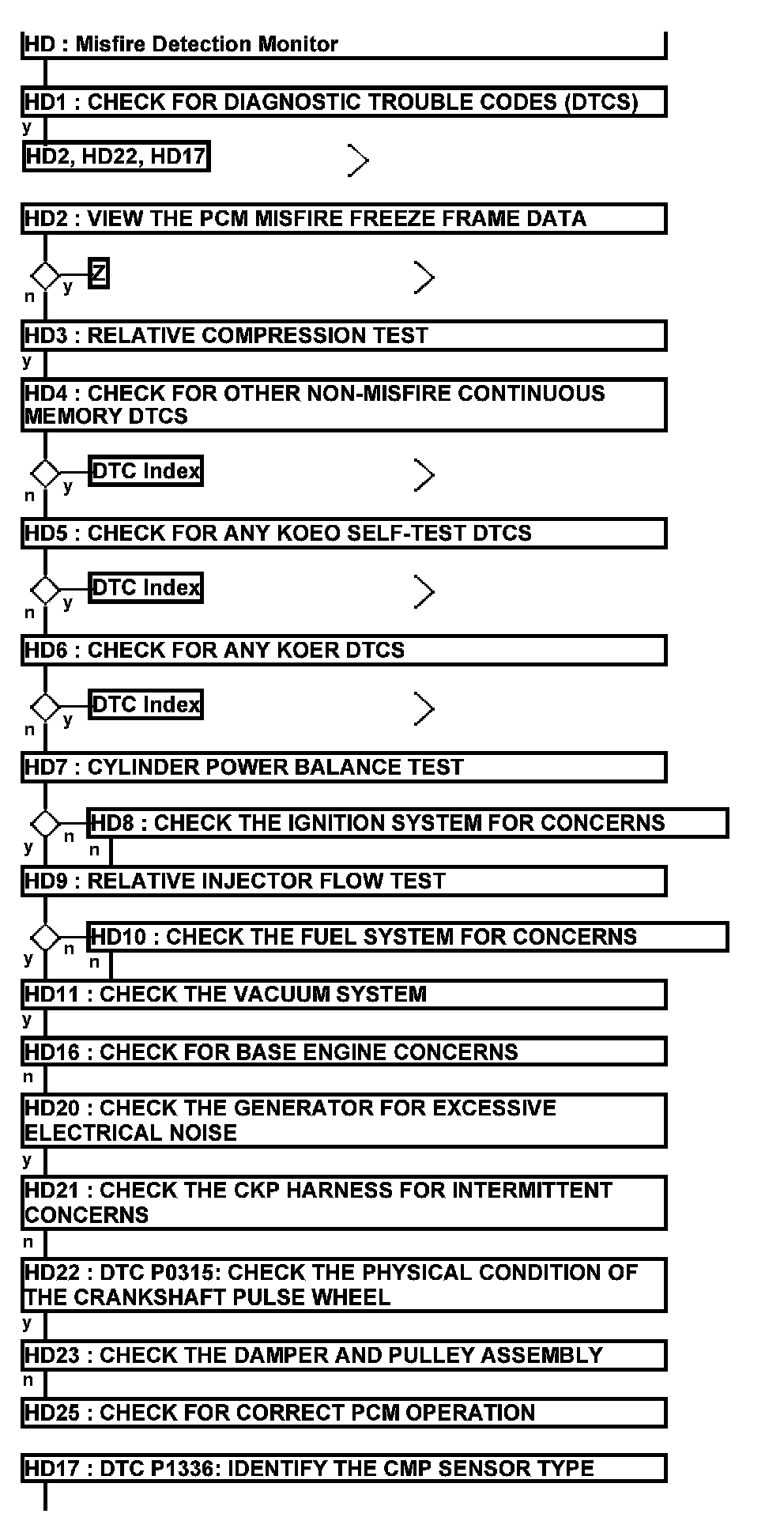

Misfire Detection Monitor

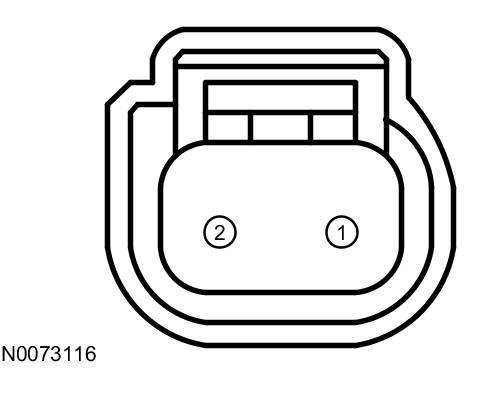

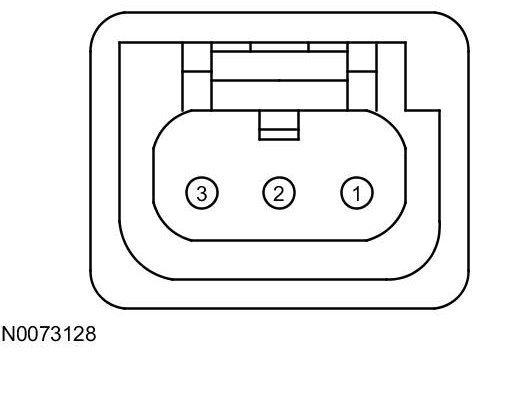

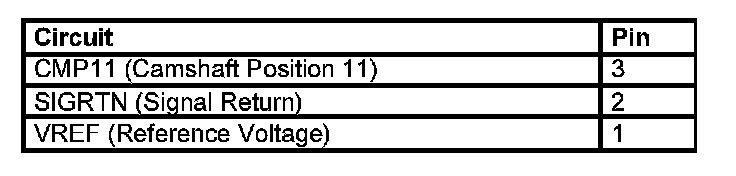

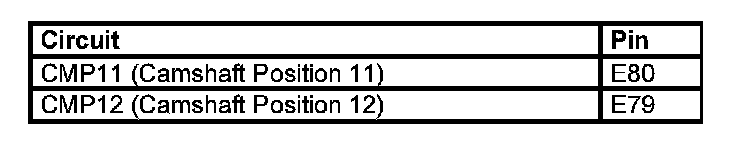

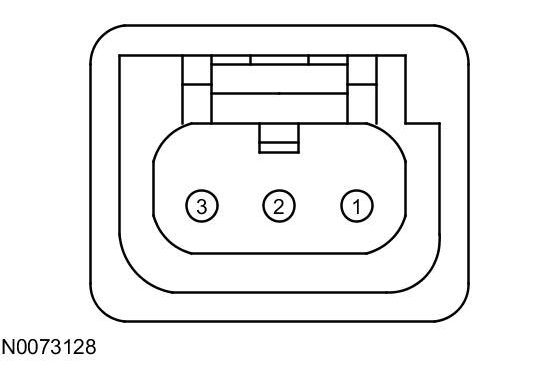

Camshaft Position 11 (CMP11) Sensor Connector





Harness Side

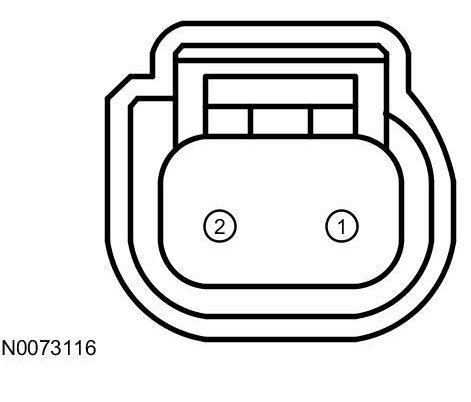

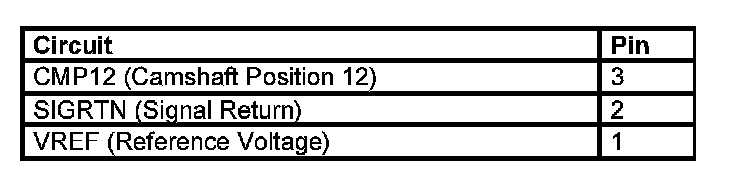

Camshaft Position 12 (CMP12) Sensor Connector





Harness Side

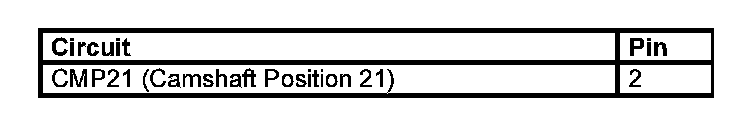

Camshaft Position 21 (CMP21) Sensor Connector





Harness Side

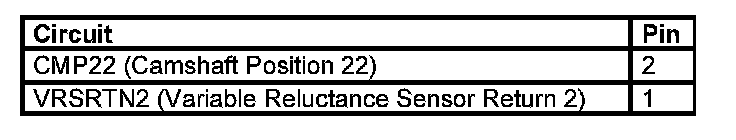

Camshaft Position 22 (CMP22) Sensor Connector




Harness Side

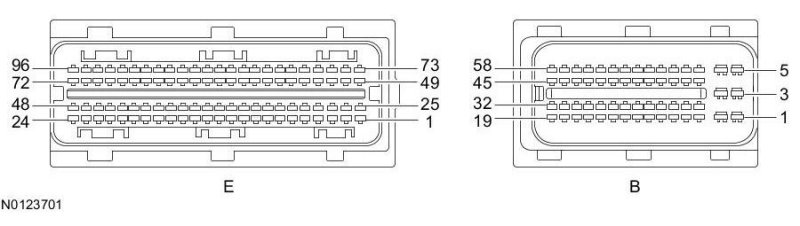

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
