System Specifications

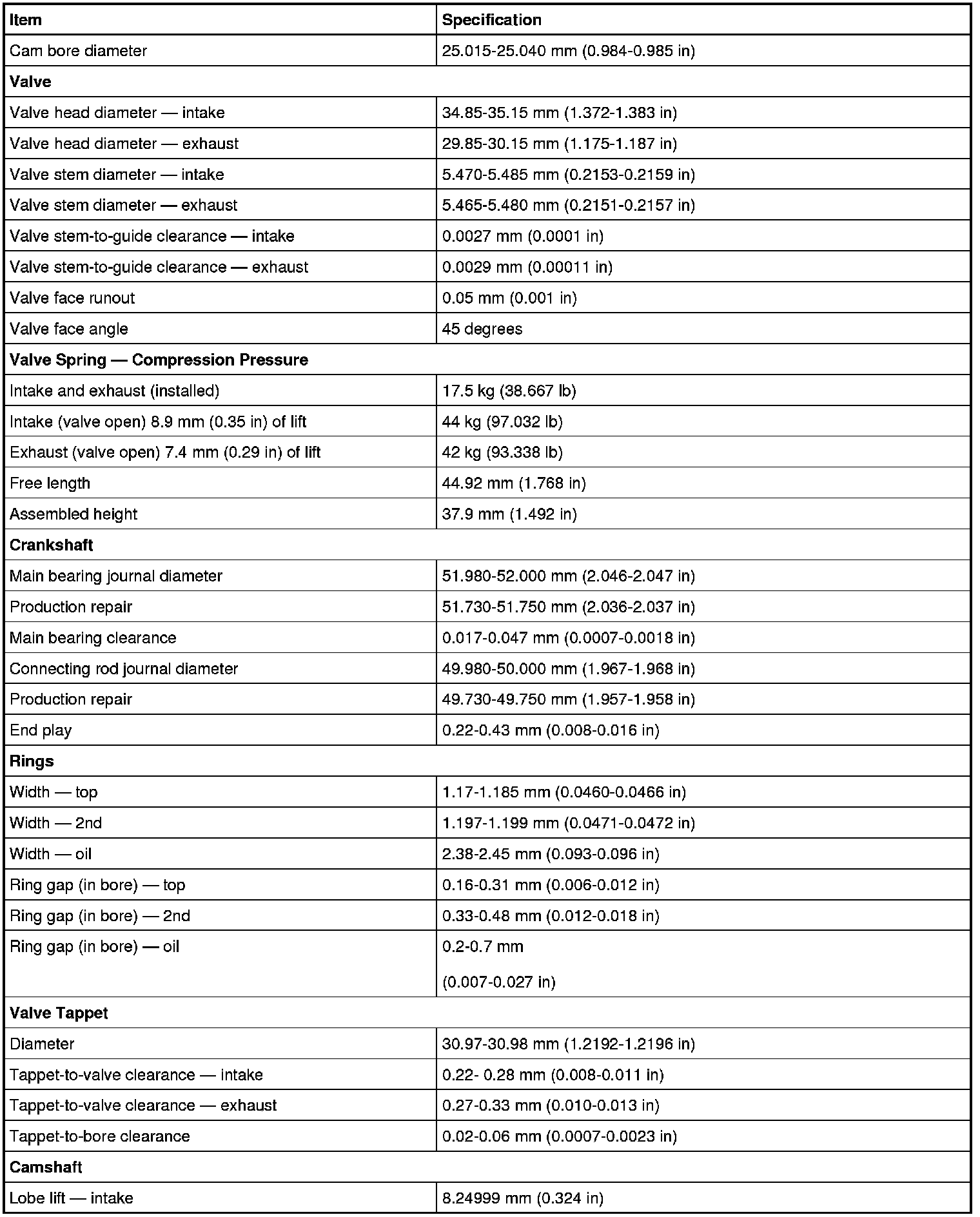

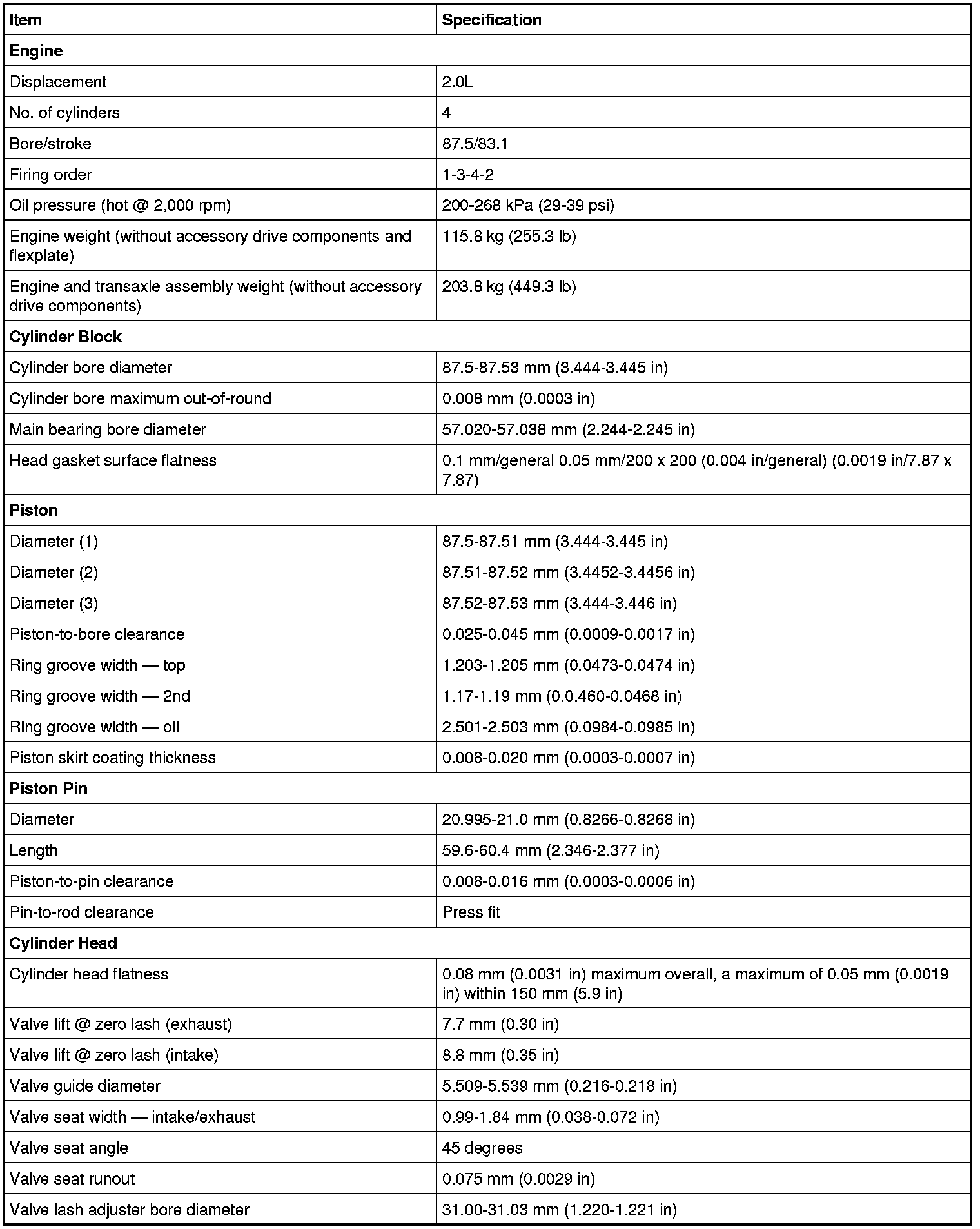

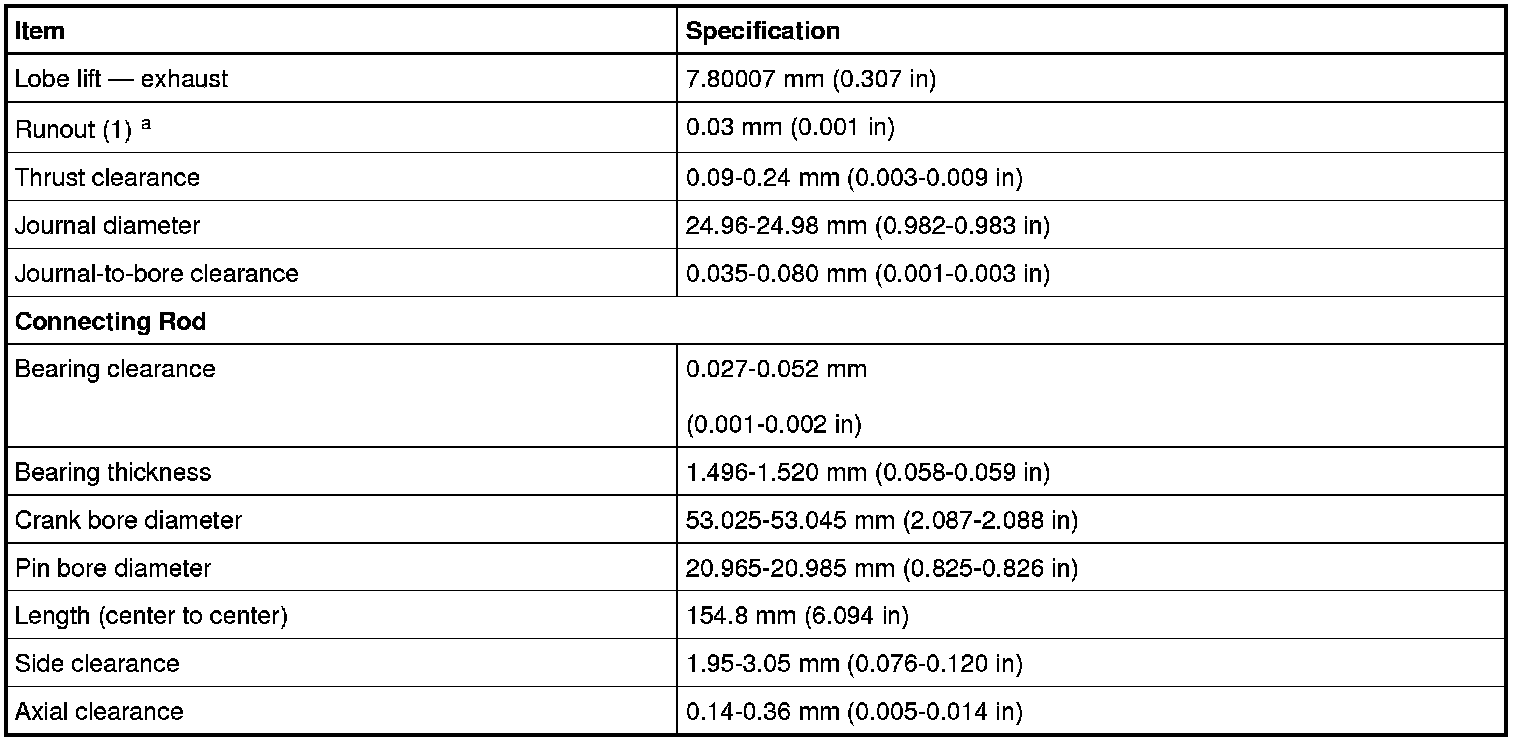

General Specifications













a No. 3 Journal - Supported by No. 1 and No. 5 journals.

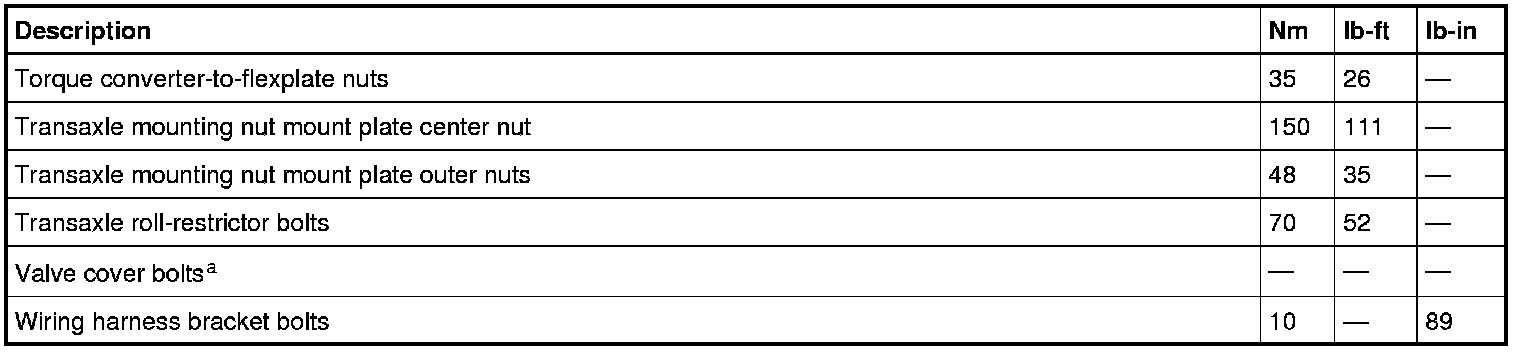

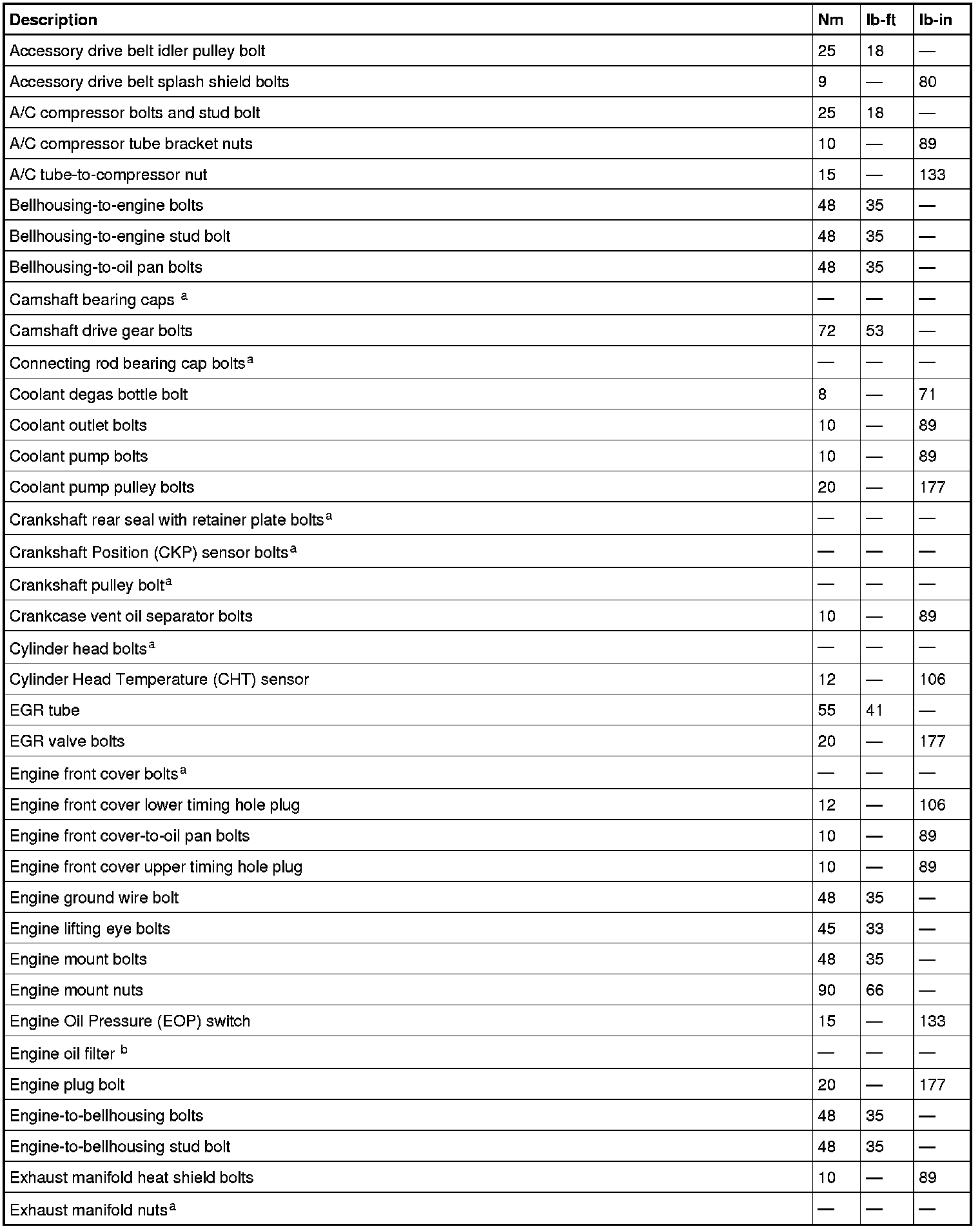

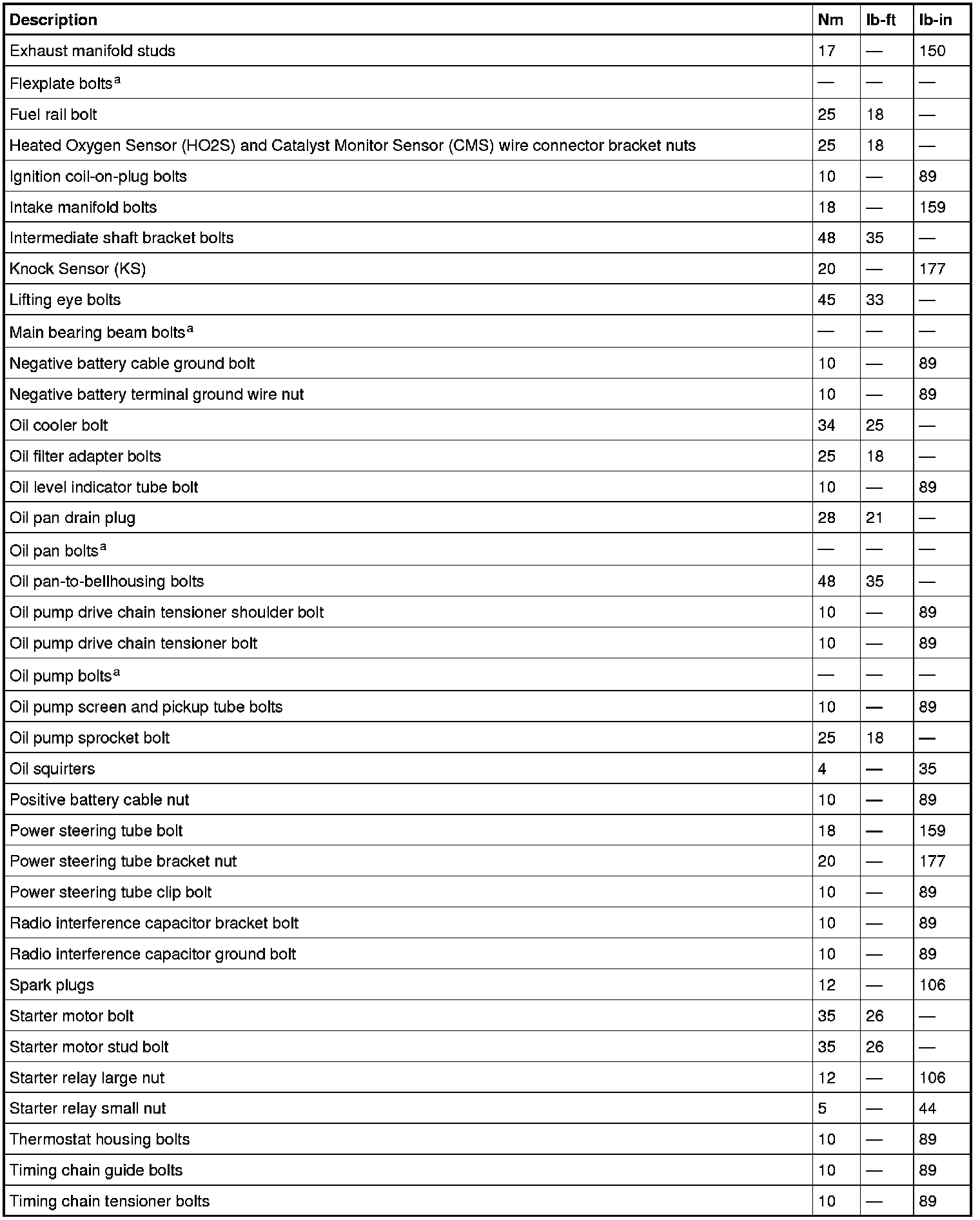

Torque Specifications













a See procedure for specification.

b Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.
