Exploded Views




Wiper and Washer System - Exploded View

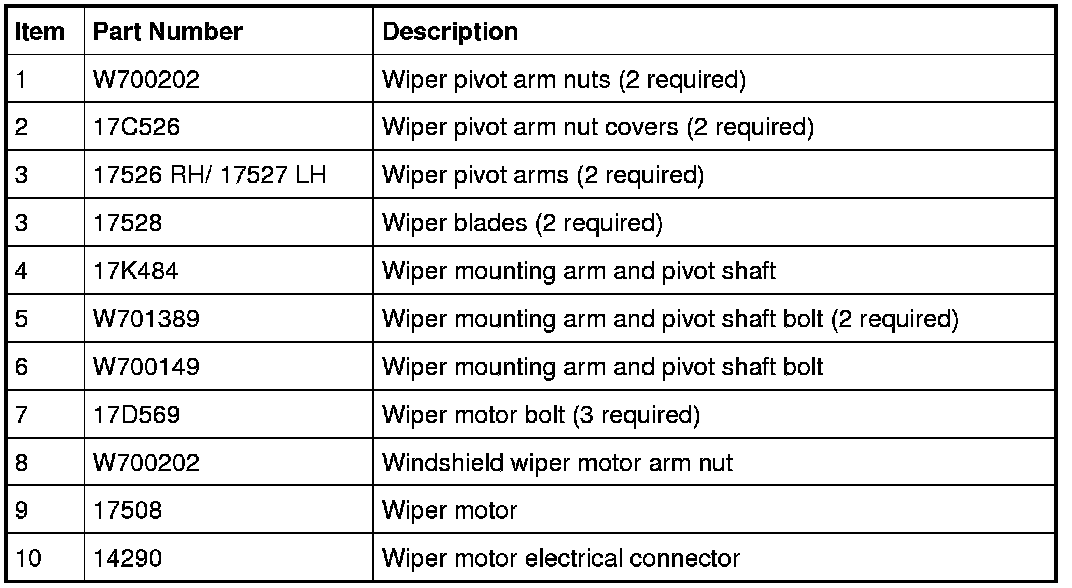

Front Wipers

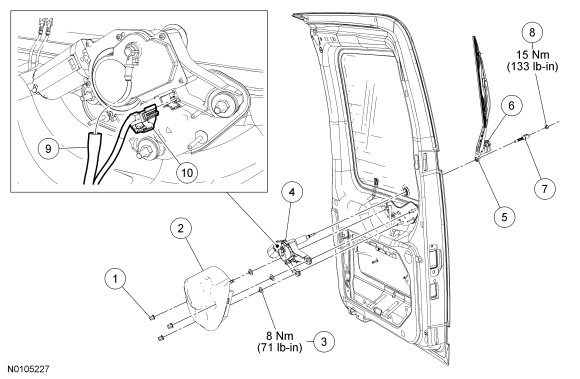

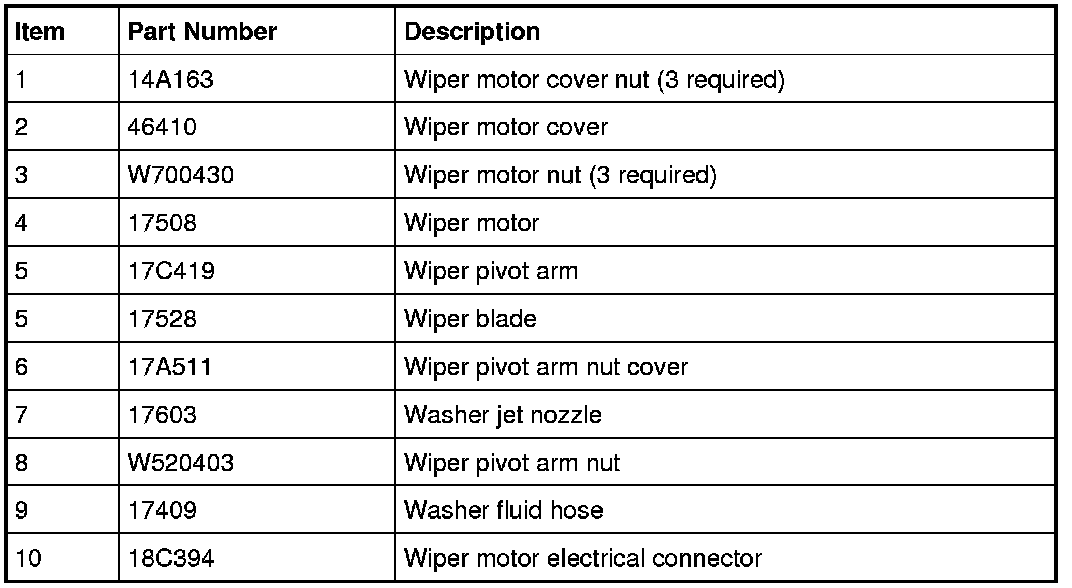

Rear Wiper

NOTE: RH cargo door shown, LH cargo door similar.

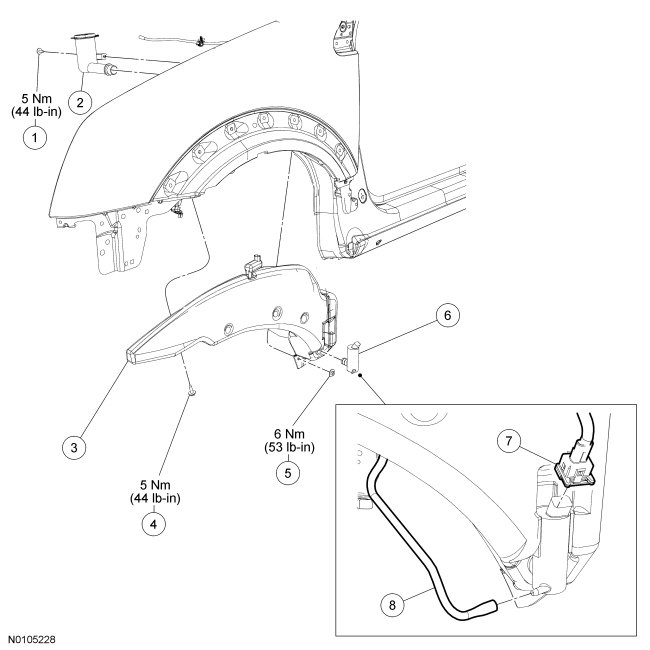

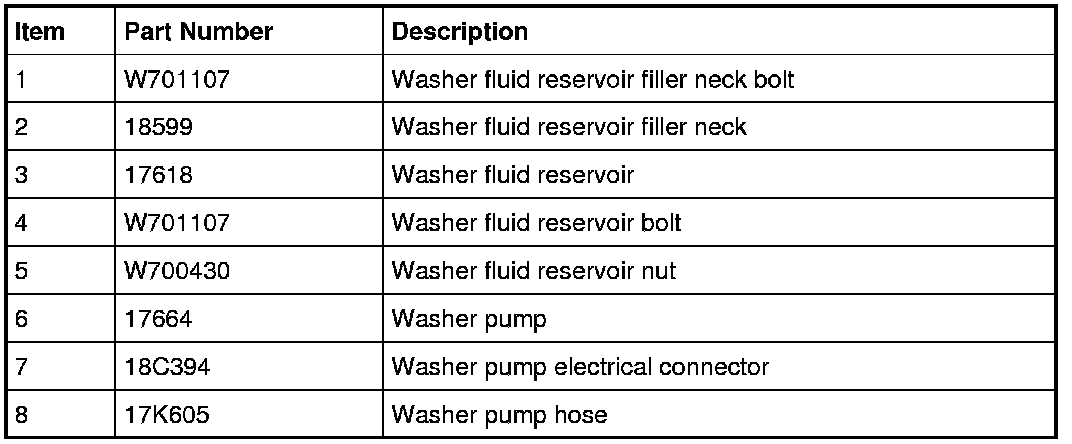

Washer Pump and Reservoir
