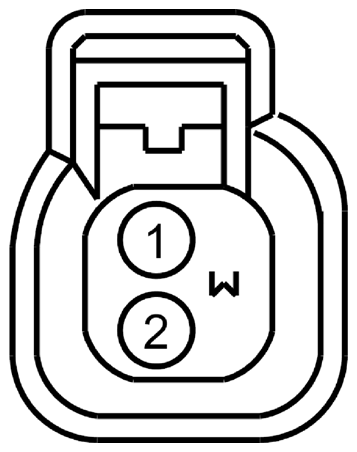

Front Wheel Speed Sensor LH Connector End View (C150)

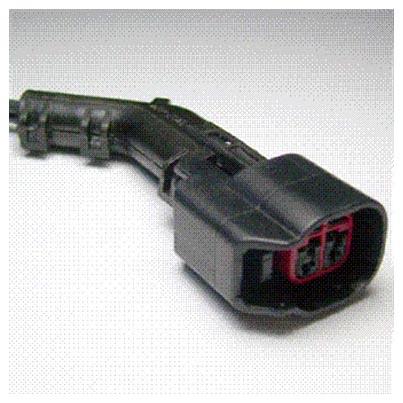

Fig 1: Identifying Front Wheel Speed Sensor LH Connector (C150)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA03 (VT)	20	SENSOR - WHEEL SPEED LEFT FRONT
2	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT

Available Pigtail Kits
Pigtail Kit Part Number WPT-1246	Service Part Number: BU2Z-14S411-RA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Sensor - Speed
