Mode 6 - 2013 Ford - Except Diesel
>>
Rear Ho2S Heater Monitor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Rear Ho2S Heater Monitor

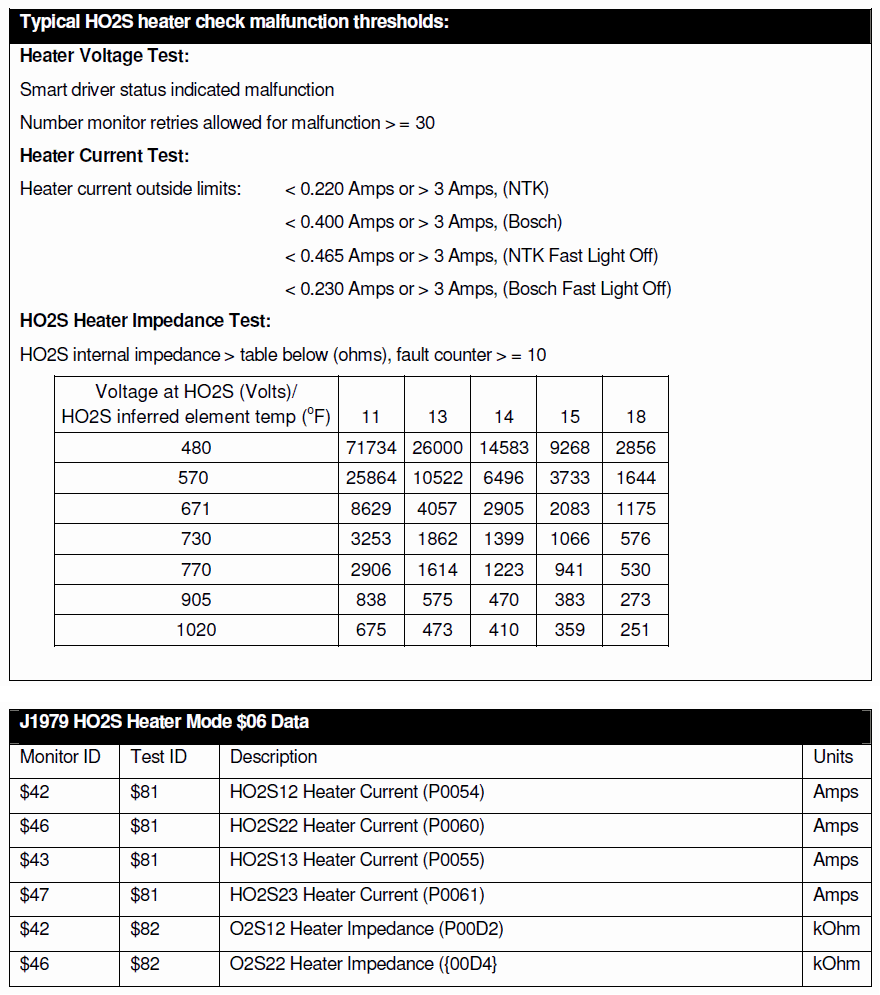

Fig 1: Mode $06 Data For Rear HO2S Heater Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
