OEM Ground Distribution: Grounds: G205

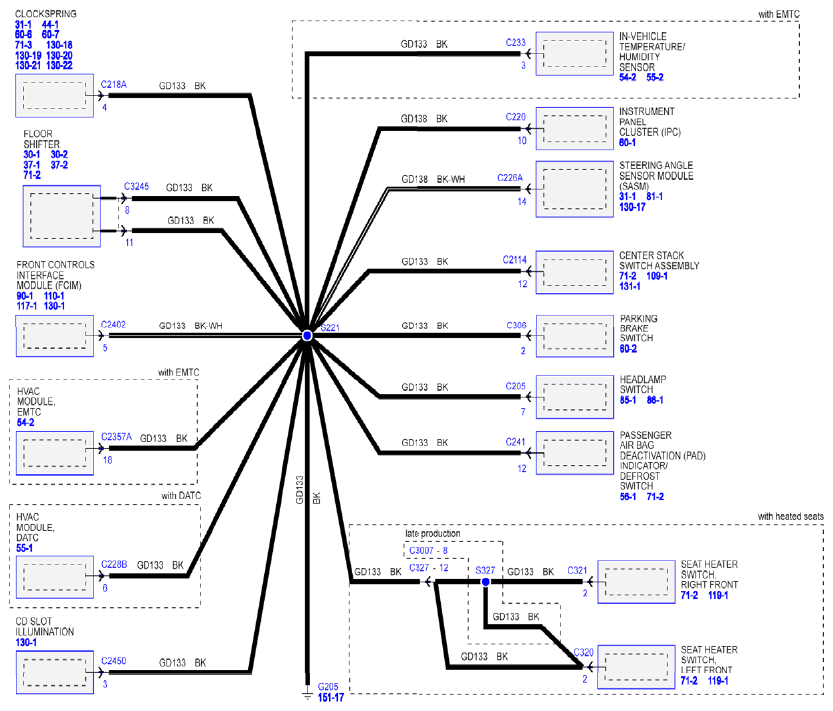

Fig 1: Ground Circuit Diagram - G205

G08741541

Courtesy of FORD MOTOR CO.
