Fuel Pump Control Module Relay Connector

Refer to the Wiring Diagrams article for schematic and connector information.

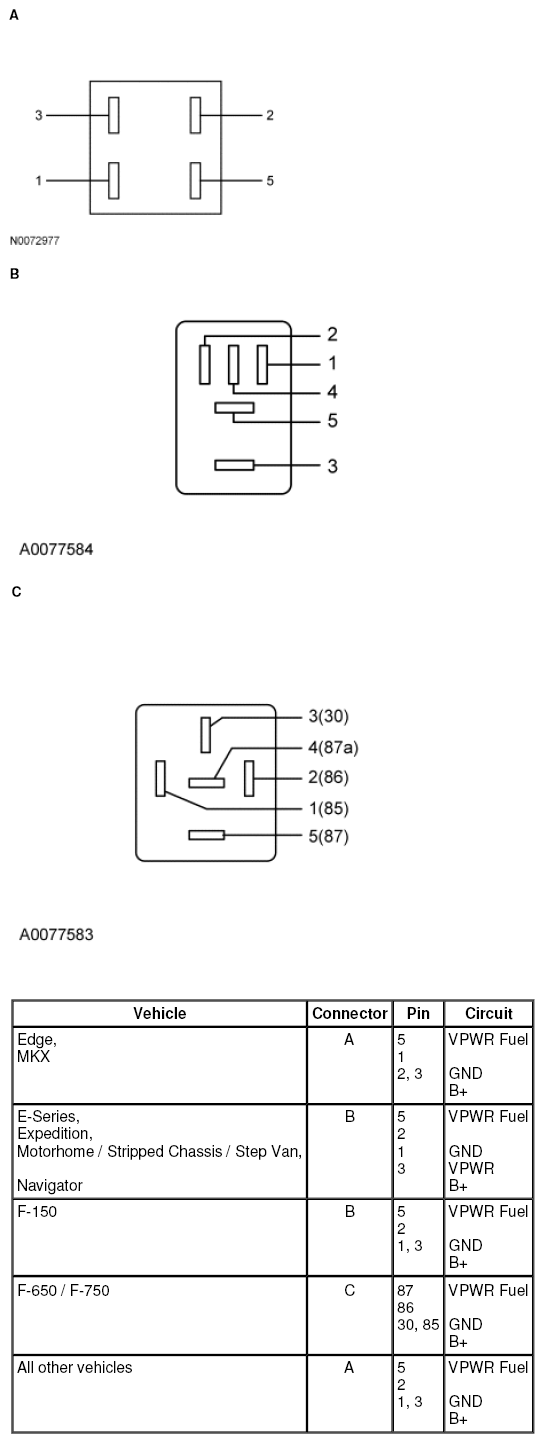

Fig 1: Identifying Fuel Pump Control Module Relay Connector

Courtesy of FORD MOTOR CO.

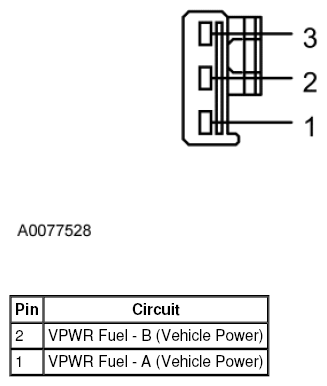

Fig 2: Identifying Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.

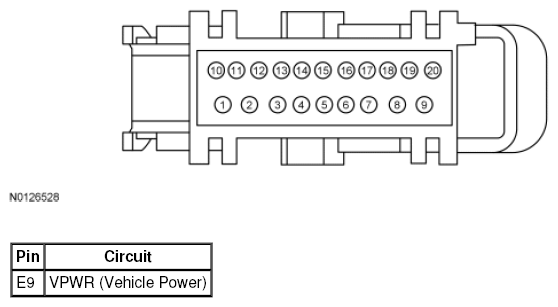

Fig 3: Identifying Body Control Module-E (BCM-E) Connector

Courtesy of FORD MOTOR CO.

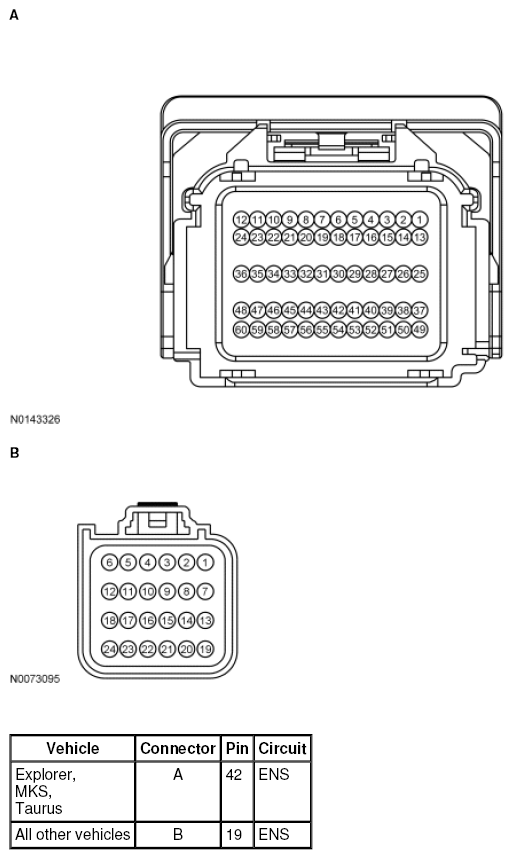

Fig 4: Identifying Restraints Control Module (RCM) Connector

Courtesy of FORD MOTOR CO.
