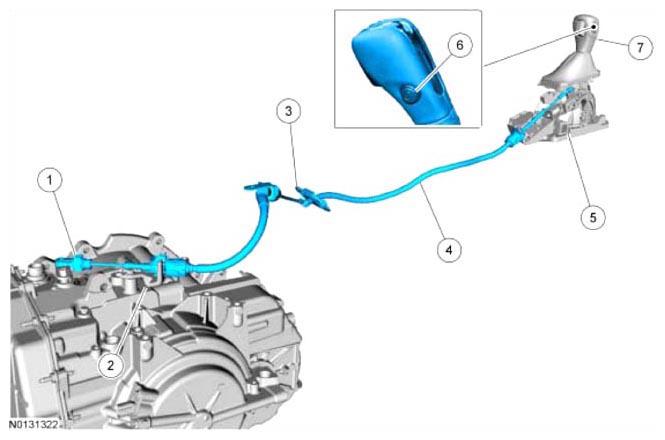

System Diagram

6F35 Only

G08032518
Item Part Number Description
1 - Adjuster locking tab (part of 7E395)
2 7B229 Selector lever cable bracket
3 - Selector lever cable grommet (part of 7E395)
4 7E395 Selector lever cable
5 7210 Selector lever assembly
6 - TCS (part of 7213)
7 7213 Selector lever knob
