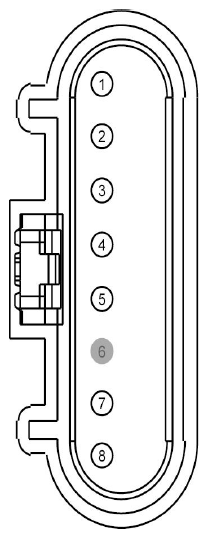

Door Lock Unit, Driver Side Front Connector End View (C525)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPL29 (YE-GY) | 20 | SWITCH - LATCH DRIVER # SET | |
| 2 | CPL28 (VT-BN) | 20 | SWITCH - LATCH DRIVER # RESET | |
| 3 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER # AJAR | |
| 4 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER # UNLOCK | |
| 5 | GD143 (BK-VT) | 20 | GROUND - PILLAR B LEFT | |
| 6 | * | * | Not Used | |
| 7 | CPL11 (GY-BN) | 16 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 8 | CPL51 (BU-GN) | 16 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
