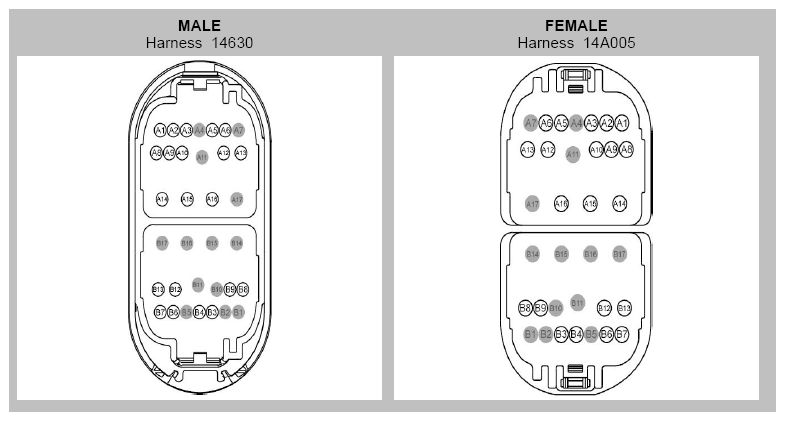

Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| A1 |
CPL31 (WH) |
20 |
|
| A2 |
CPM17 (BU-GN) |
22 |
|
| A3 |
CPM14 (GY-BN) |
22 |
|
| A4 |
* |
* |
|
| A5 |
CBP25 (WH-OG) |
20 |
|
| A6 |
CLS27 (GN-OG) |
20 |
|
| A7 |
* |
* |
|
| A8 |
CPL32 (GY-BU) |
20 |
|
| A9 |
CPM18 (GN-BN) |
22 |
|
| A10 |
CPL30 (BU-BN) |
22 |
|
| A11 |
* |
* |
|
| A12 |
CPL13 (BN-GN) |
16 |
|
| A13 |
CPL11 (GY-BN) |
16 |
|
| A14 |
CPW13 (BN-YE) |
12 |
|
| A15 |
CBP34 (VT-BN) |
12 |
|
| A16 |
CPW12 (GN-OG) |
12 |
|
| A17 |
* |
* |
|
| B1 |
* |
* |
|
| B2 |
* |
* |
|
| B3 |
VME10 (WH-VT) |
20 |
|
| B4 |
RME10 (WH-OG) |
20 |
|
| B5 |
* |
* |
|
| B6 |
VPK02 (VT-WH) |
22 |
|
| B7 |
RPK02 (GY-YE) |
22 |
|
| B8 |
GD145 (BK-BU) |
18 |
|
| B9 |
GD145 (BK-BU) |
20 |
|
| B10 |
* |
* |
|
| B11 |
* |
* |
|
| B12 |
RR132 (BU-WH) |
20 |
|
| B13 |
VR218 (YE-OG) |
20 |
|
| B14 |
* |
* |
|
| B15 |
* |
* |
|
| B16 |
* |
* |
|
| B17 |
* |
* |
|
