With Redundant Audio Controls Without Sync / Navigation

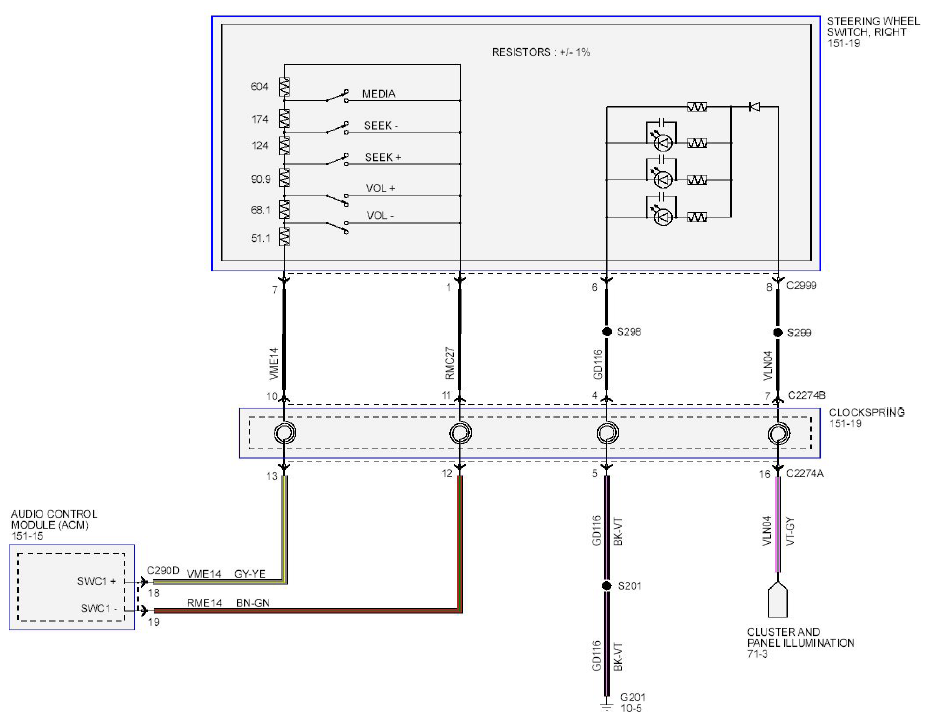

Fig 1: Audio System/Navigation - Wiring Diagram (With Redundant Audio Controls Without Sync/Navigation)
G09092201Courtesy of FORD MOTOR CO.
