Planetary Gearset Exploded View

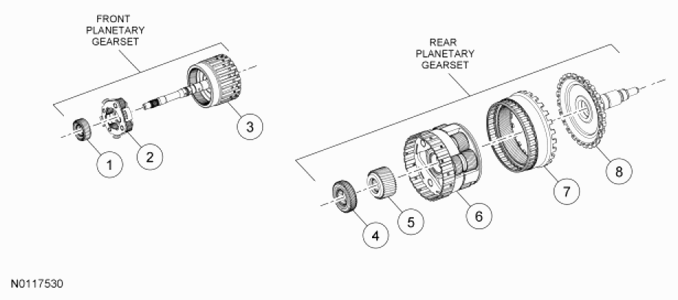

Fig 1: Exploded View Of Planetary Gearset
G07411590Courtesy of FORD MOTOR CO.
Item Description
1 Front planetary No. 1 sun gear
2 Front planetary carrier
3 Front planetary ring gear (part of input shaft assembly)
4 Rear planetary No. 2 sun gear
5 Rear planetary No. 3 sun gear
6 Rear planetary carrier
7 Rear planetary ring gear
8 Output shaft
