With Redundant Audio Controls / Sync / Navigation

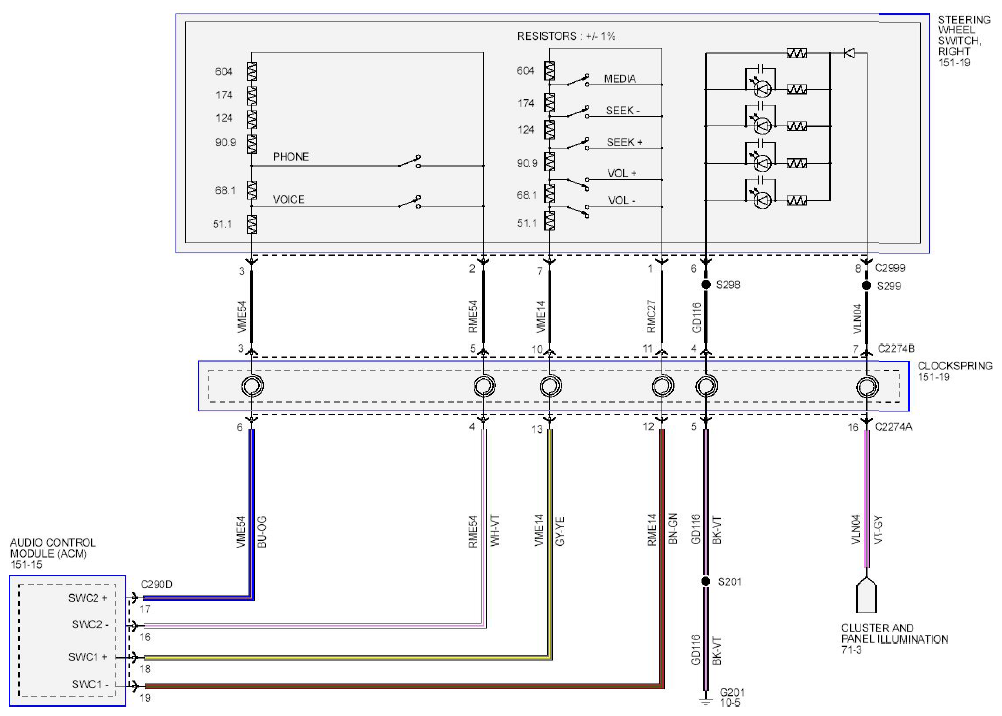

Fig 1: Audio System/Navigation - Wiring Diagram (With Redundant Audio Controls/Sync/Navigation)
G09092203Courtesy of FORD MOTOR CO.
