Seat Backrest - Power
NOTE:

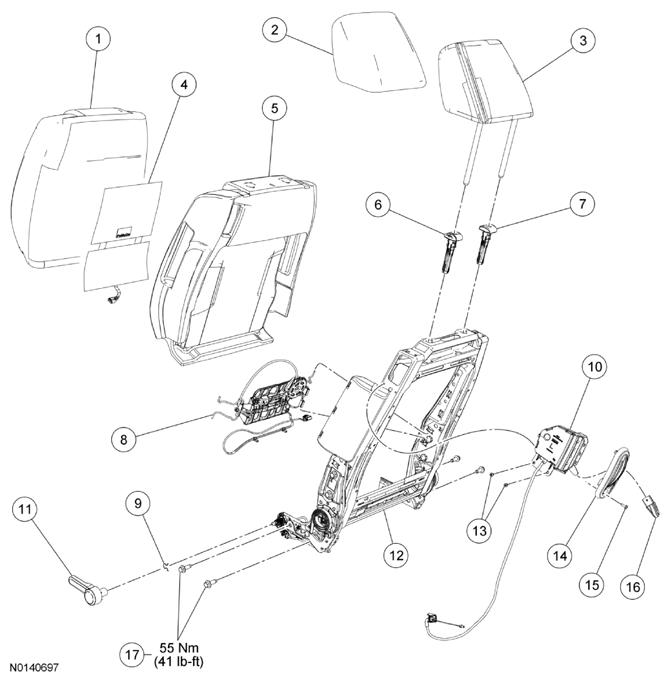

LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64417 | Backrest cover |
| 2 | - | Head restraint cover |
| 3 | 611A08 | Head restraint |
| 4 | 14D696 | Backrest heater mat (if equipped) |
| 5 | 64811 | Backrest foam pad |
| 6 | 610A16 | Head restraint guide sleeve, LH |
| 7 | 610A18 | Head restraint guide sleeve, RH |
| 8 | 65500 | Power lumbar assembly (if equipped) |
| 9 | - | Recline handle retainer (part of 62622) |
| 10 | 62432 | Backrest latch release |
| 11 | 62622 | Recline handle |
| 12 | 61019 | Backrest frame |
| 13 | W711024 | Backrest latch release rivets (2 required) |
| 14 | 62672 | Backrest latch release bezel |
| 15 | W506943 | Backrest latch release bezel screw |
| 16 | 62762 | Backrest latch release handle |
| 17 | W500633 | Backrest mounting bolts |
