Side Impact Reinforcement - Police Package

Side Impact Reinforcement - Police Package












Removal

All

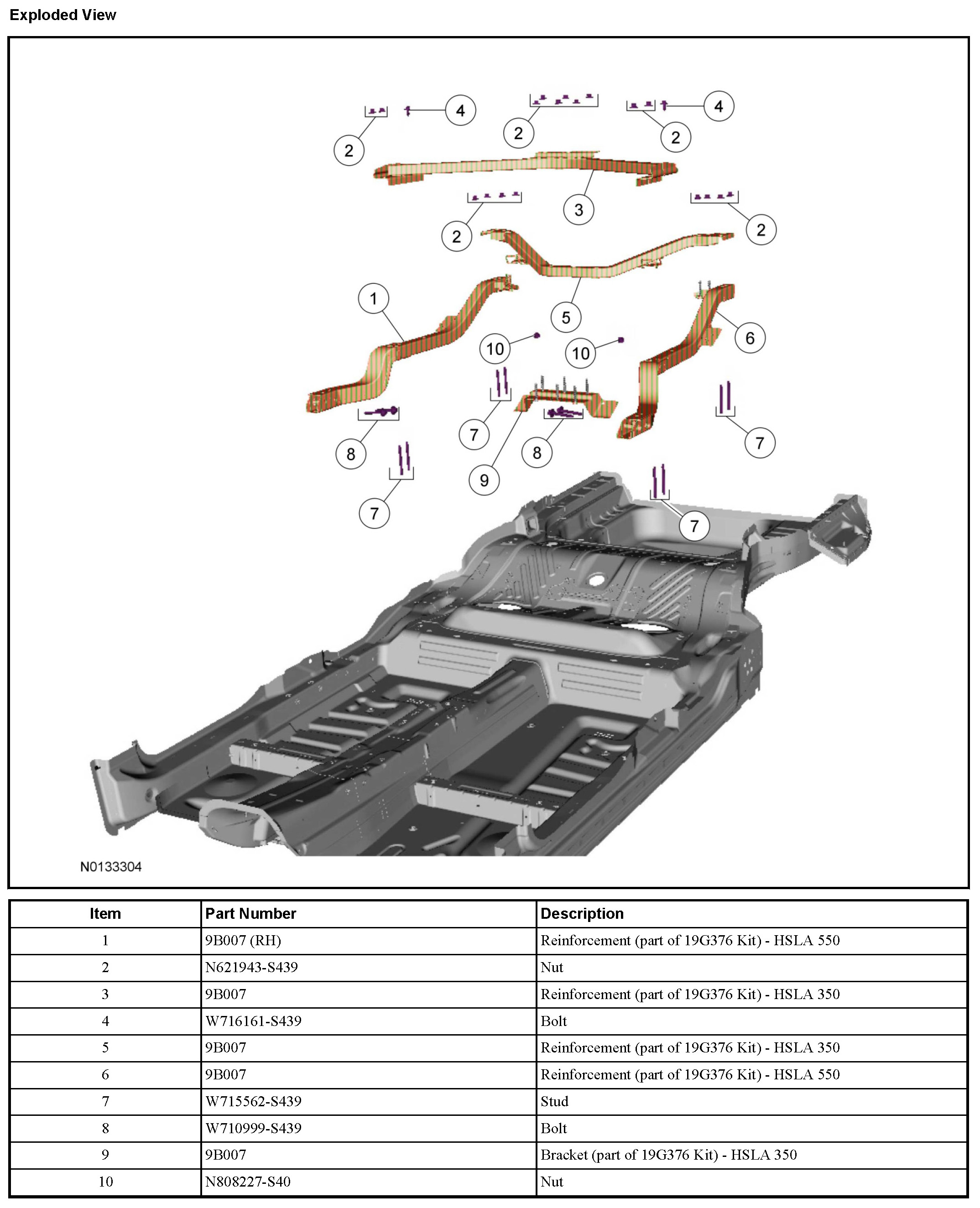

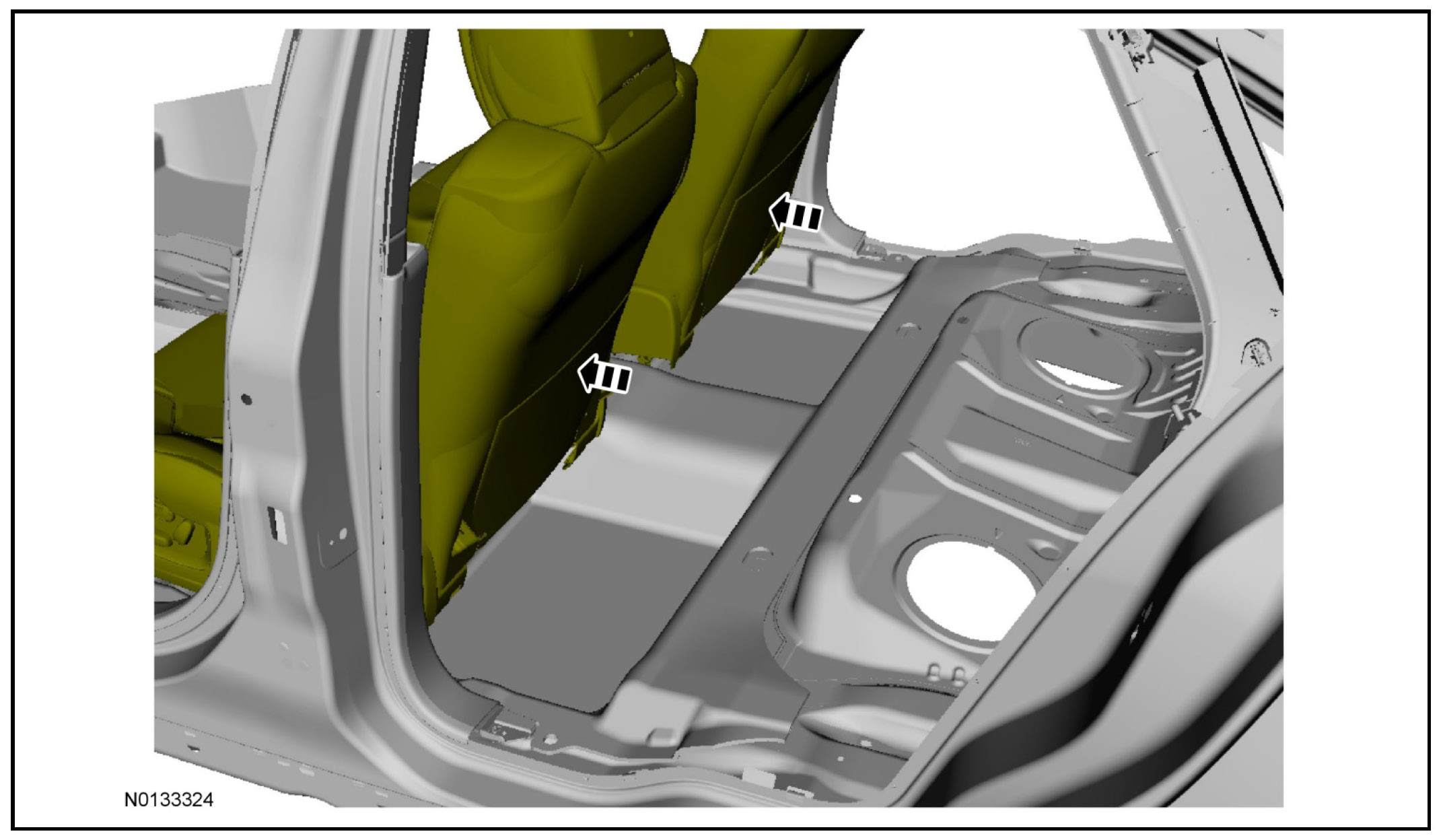

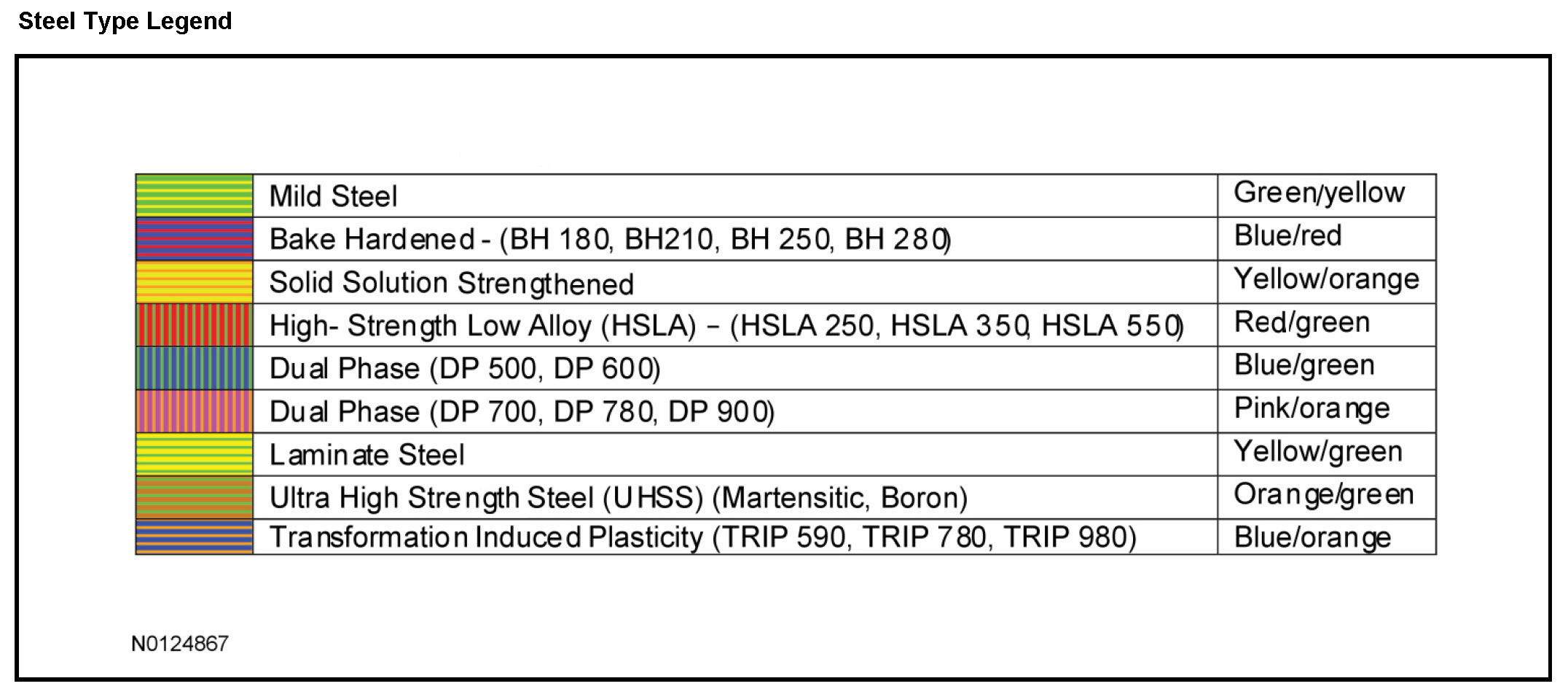

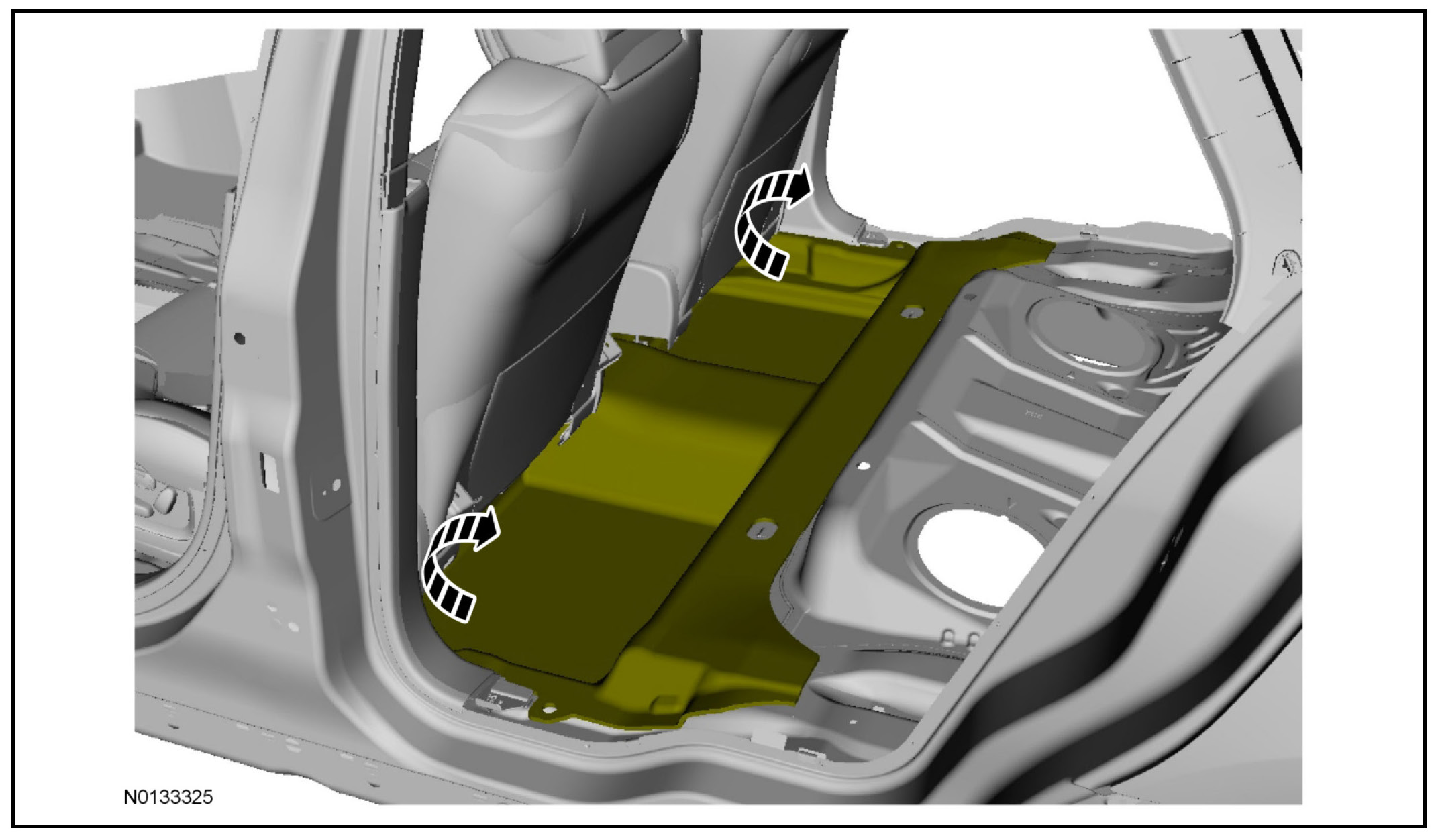

1. Remove the rear seat back.

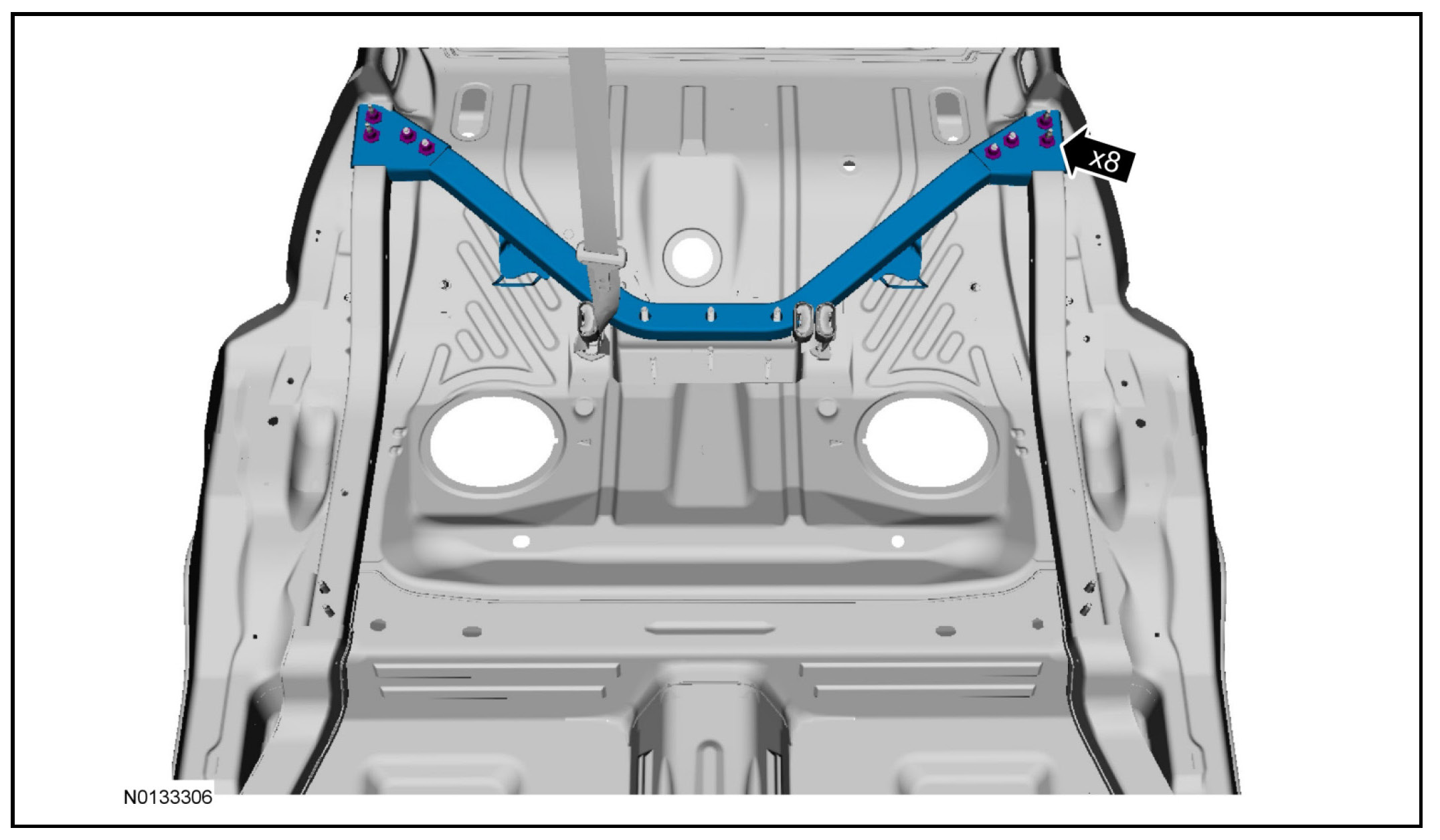

Front Brace

2.

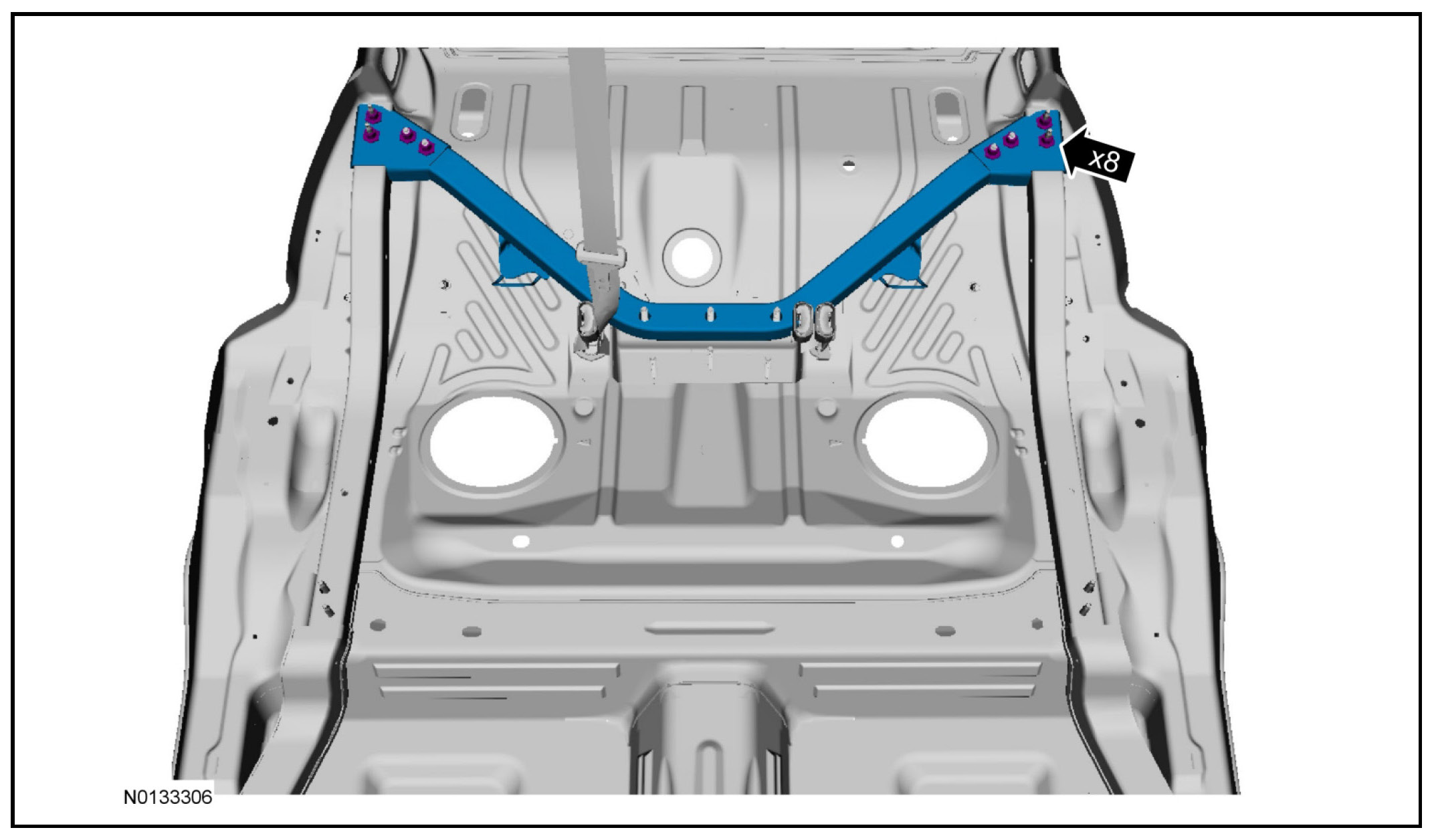

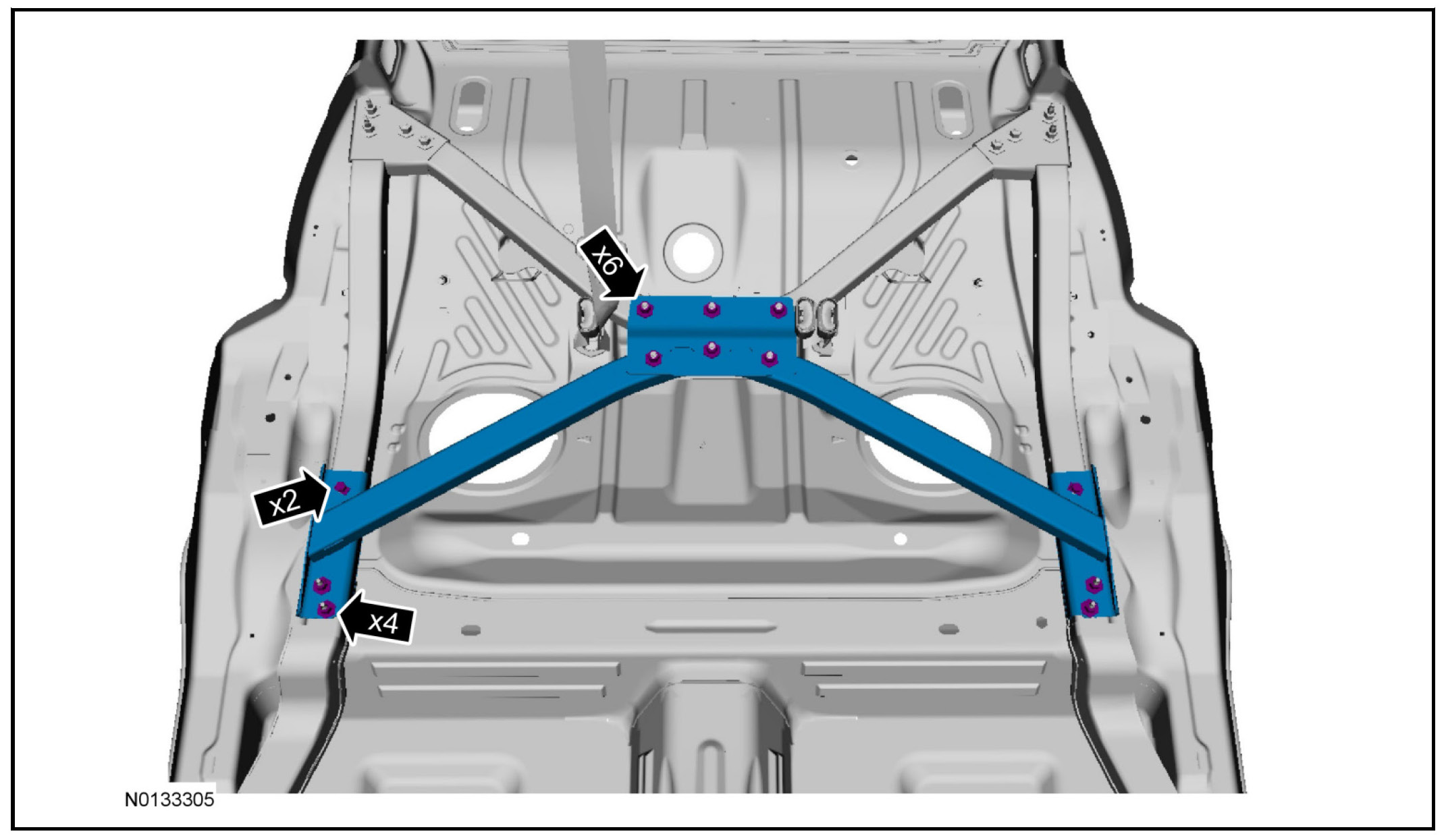

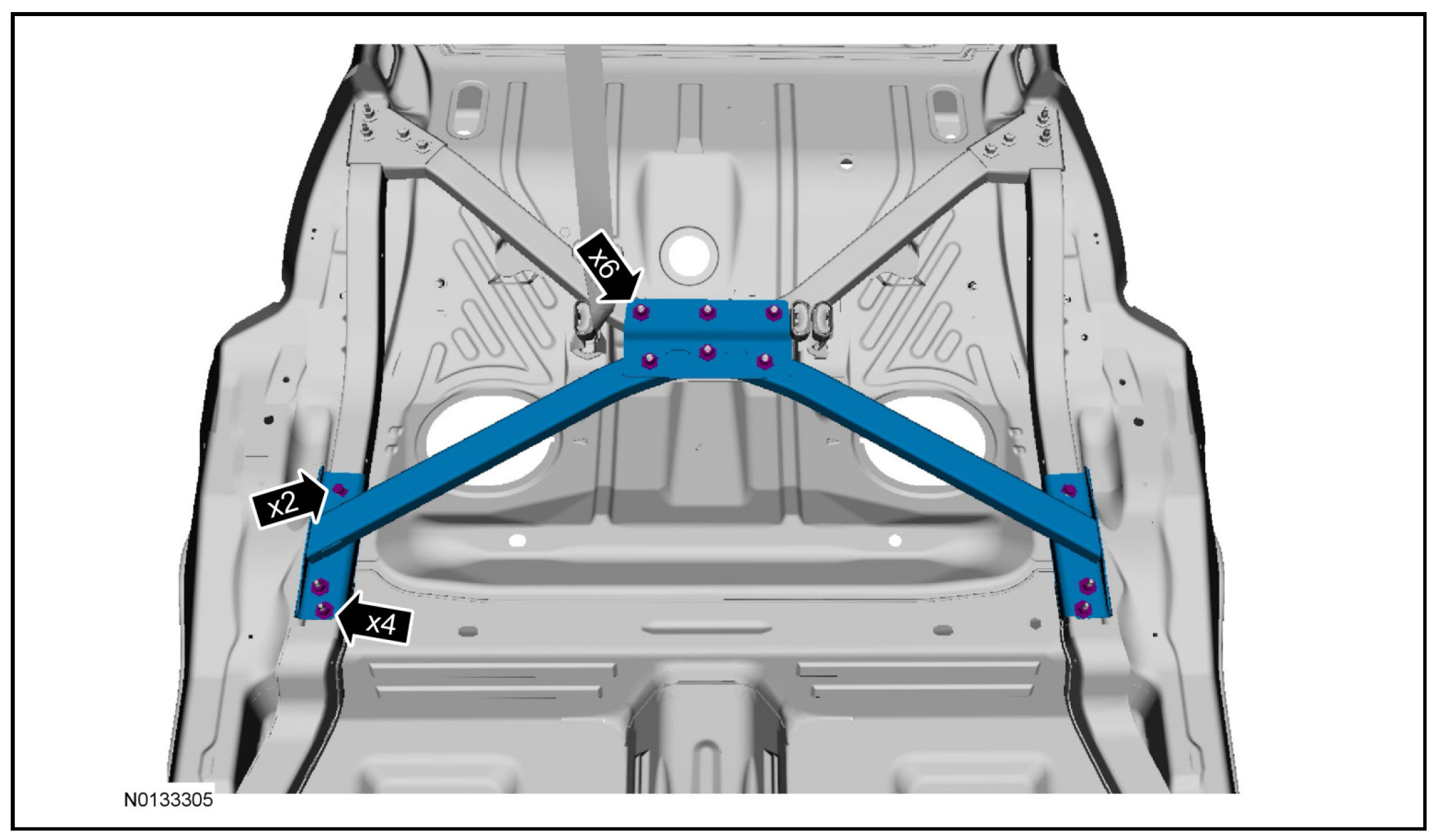

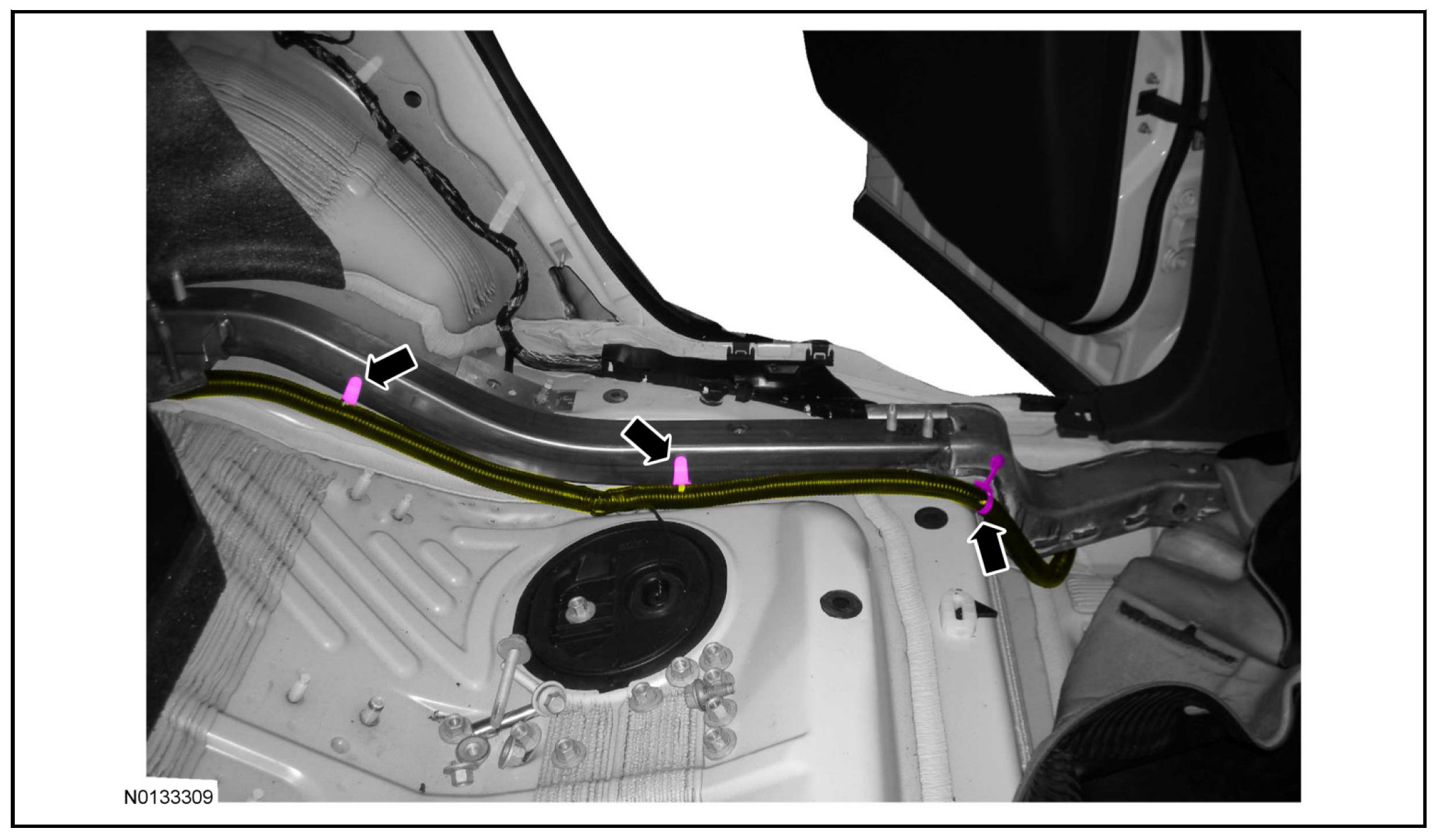

Rear Brace

3.

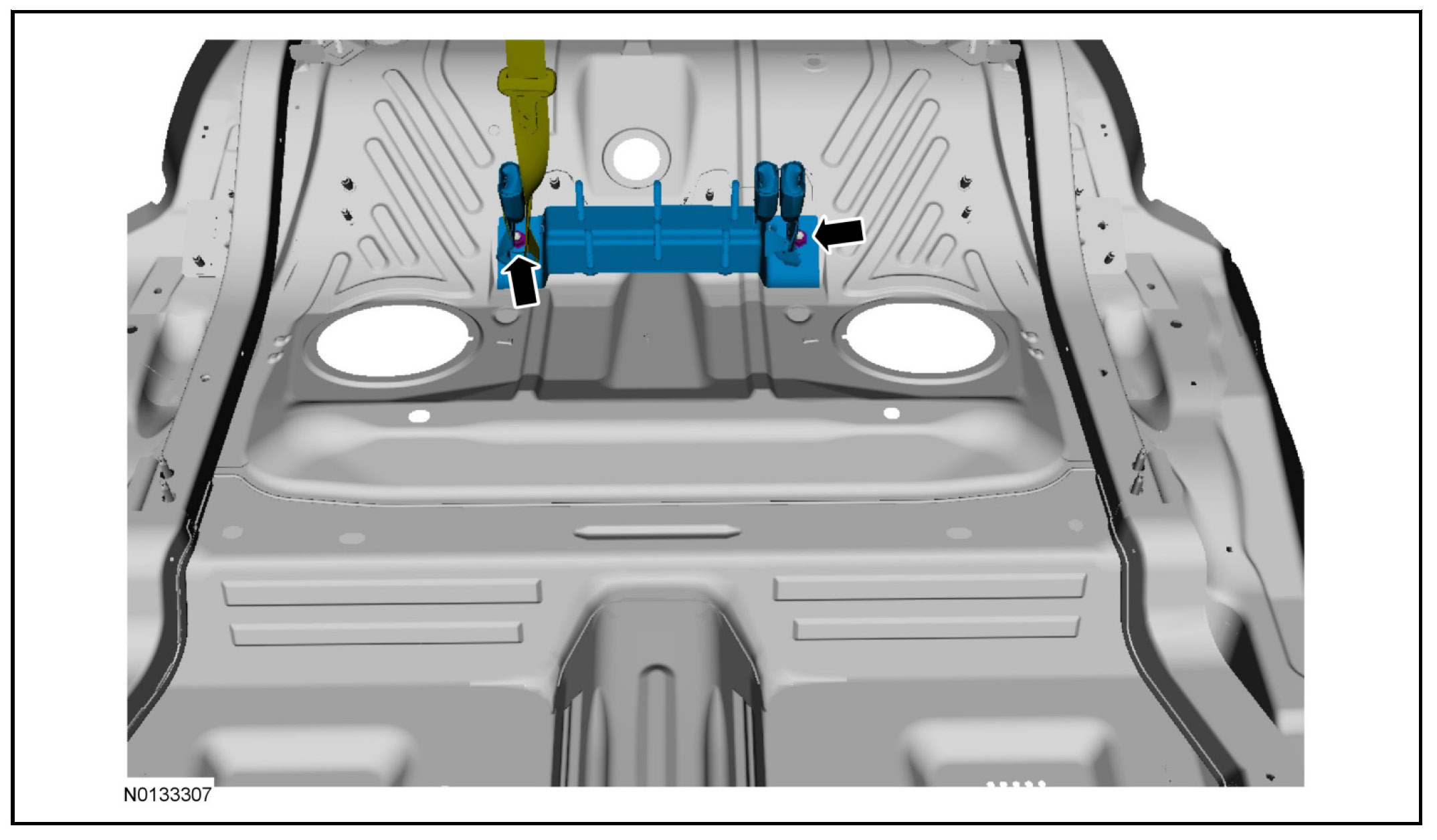

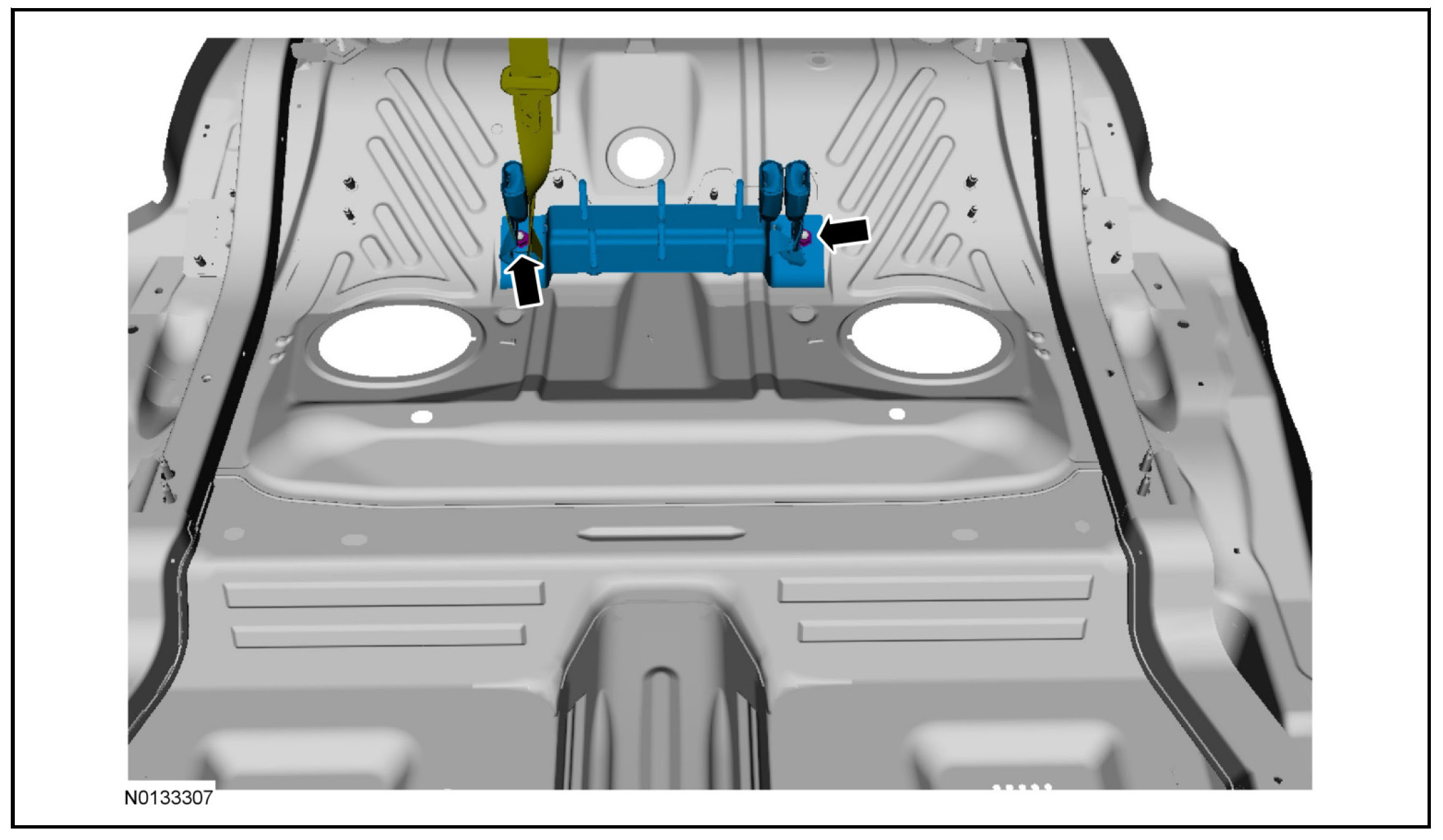

Center Bracket

4.

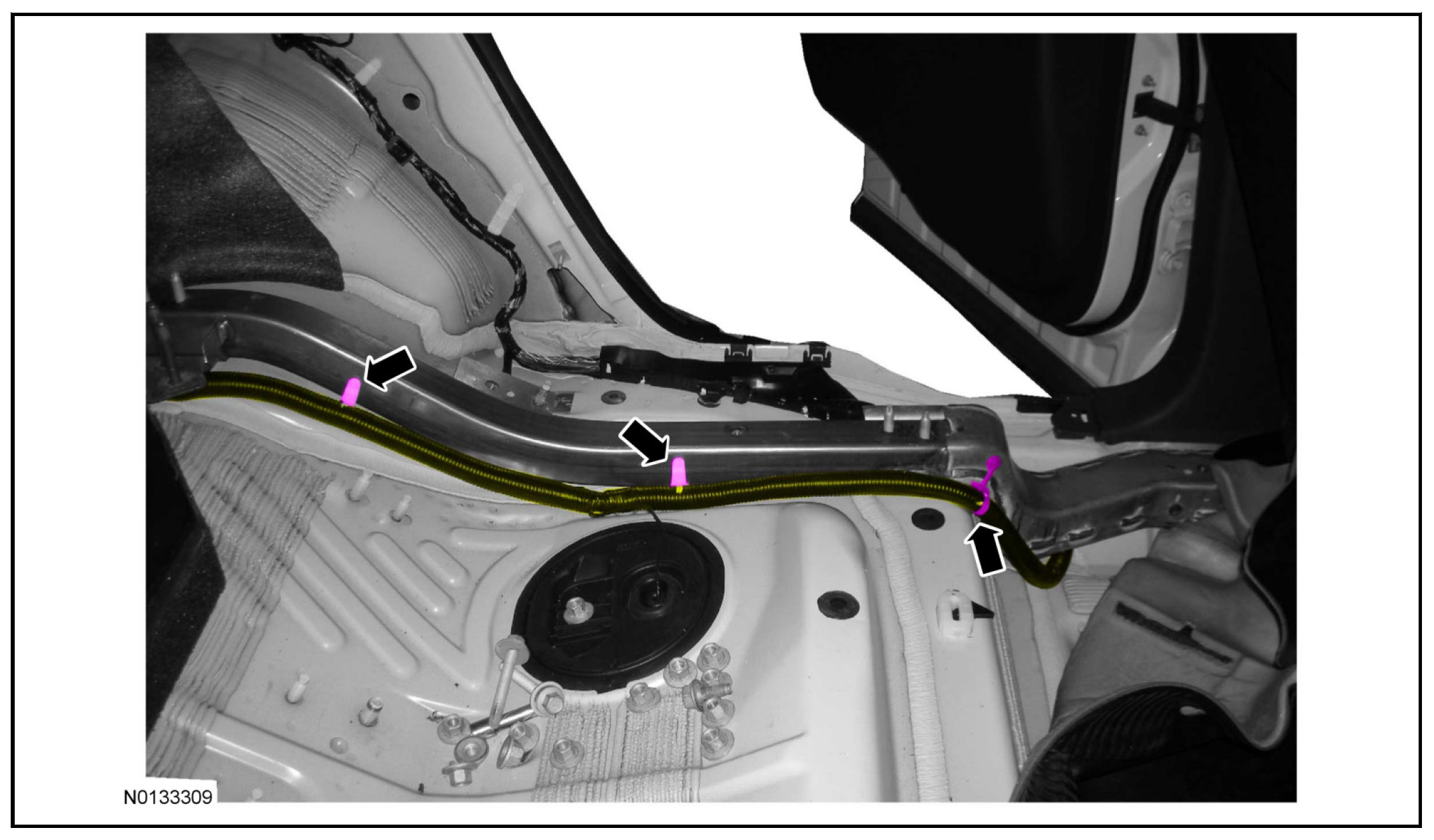

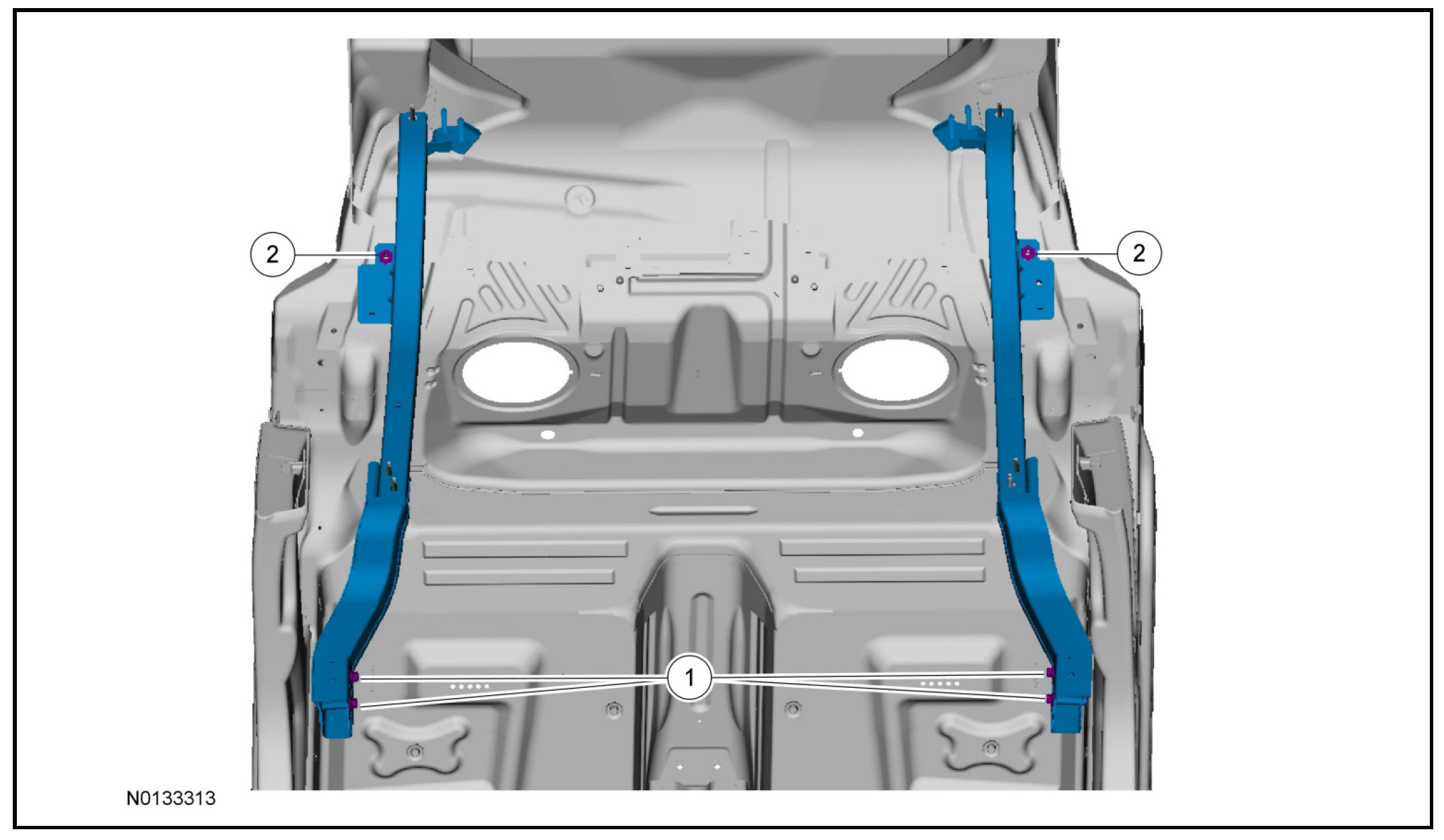

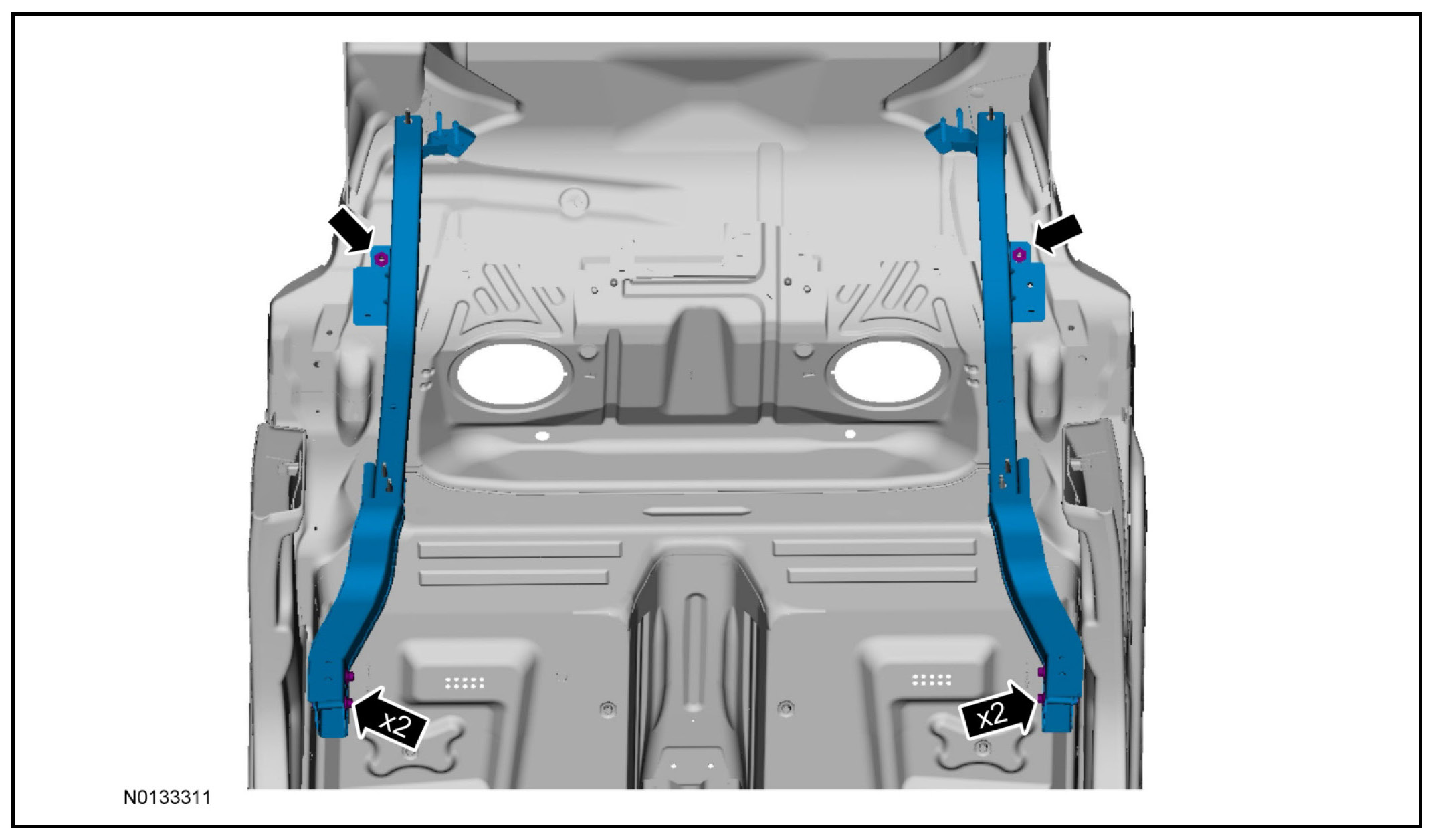

Side Braces

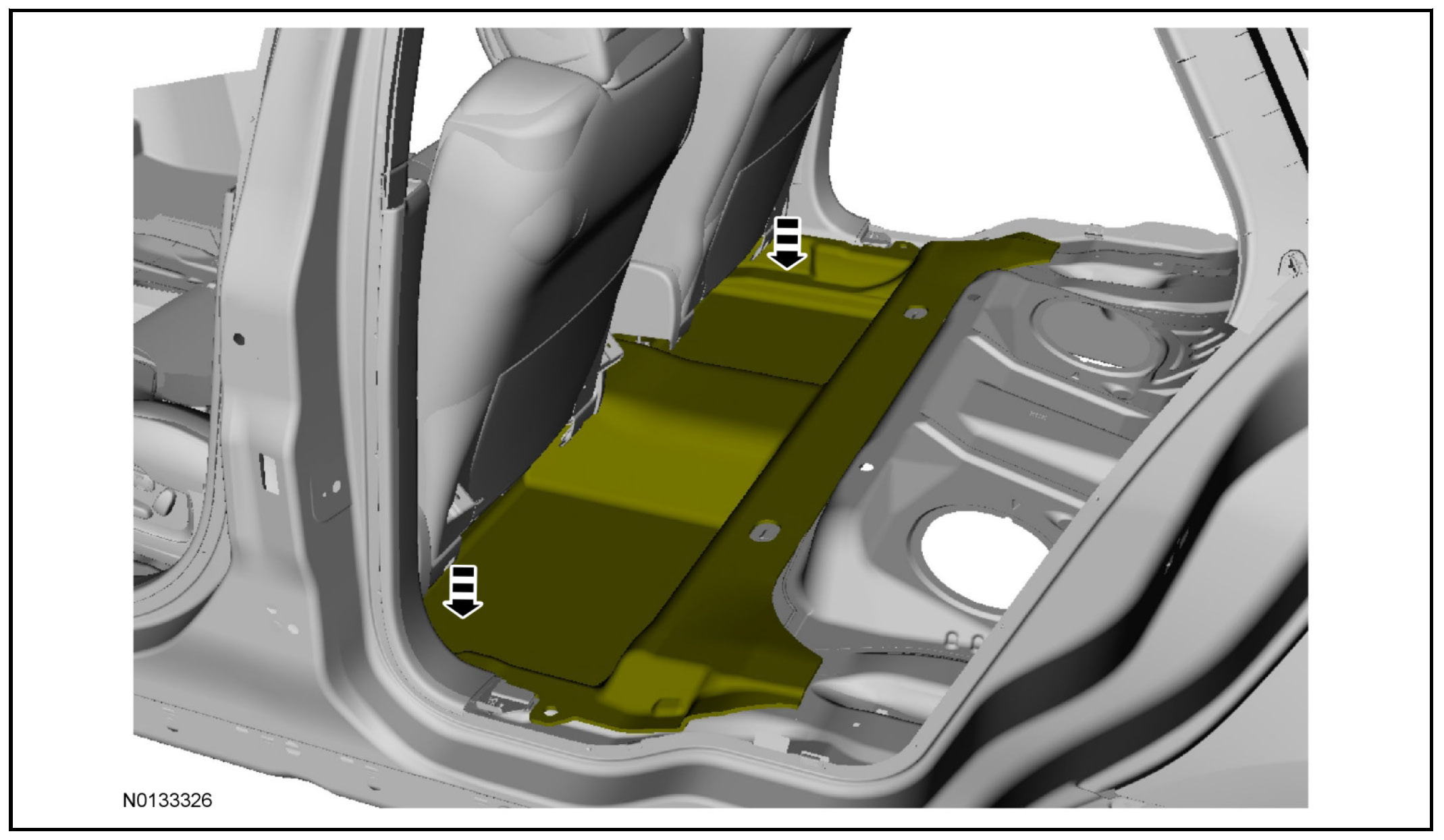

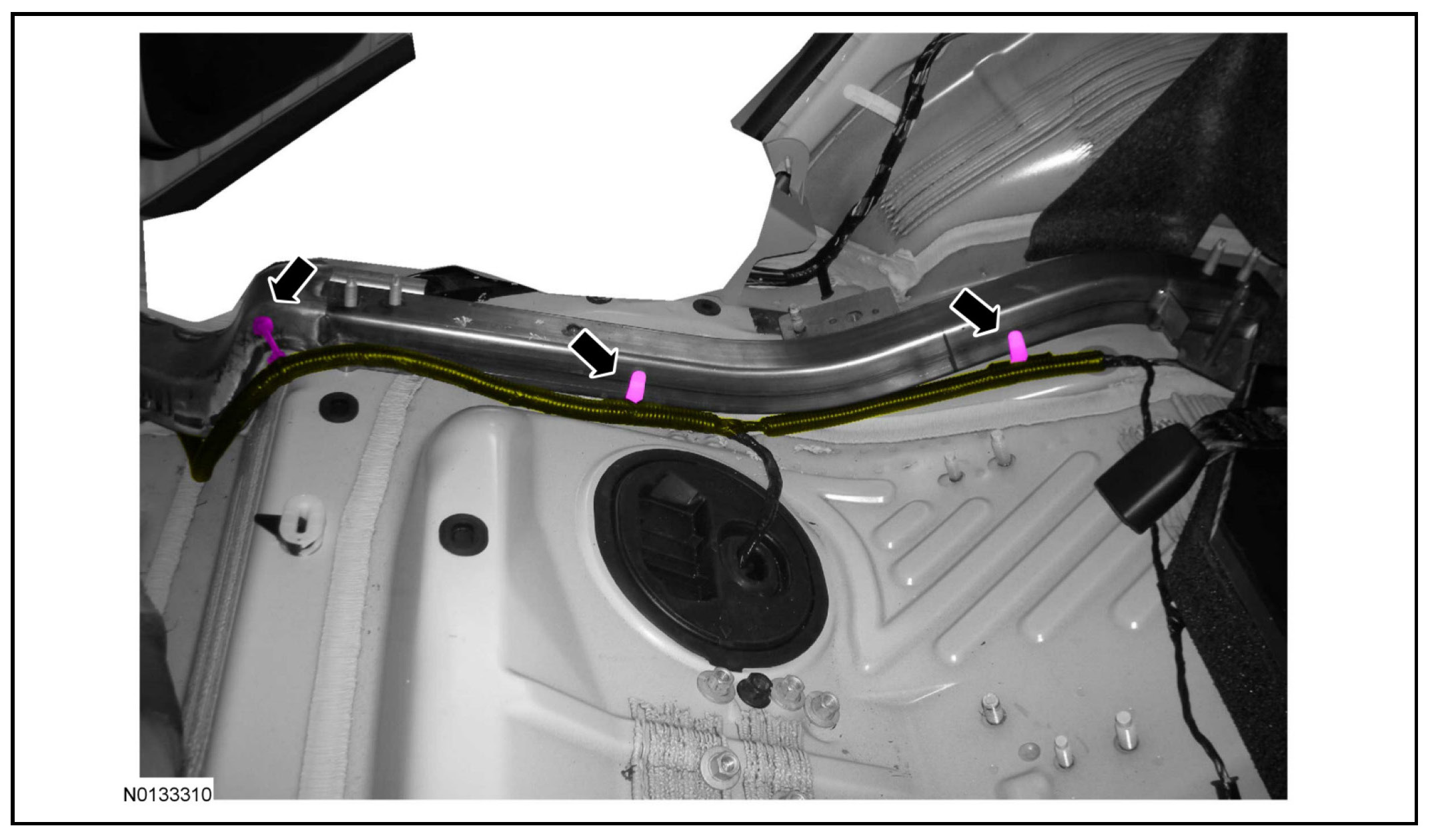

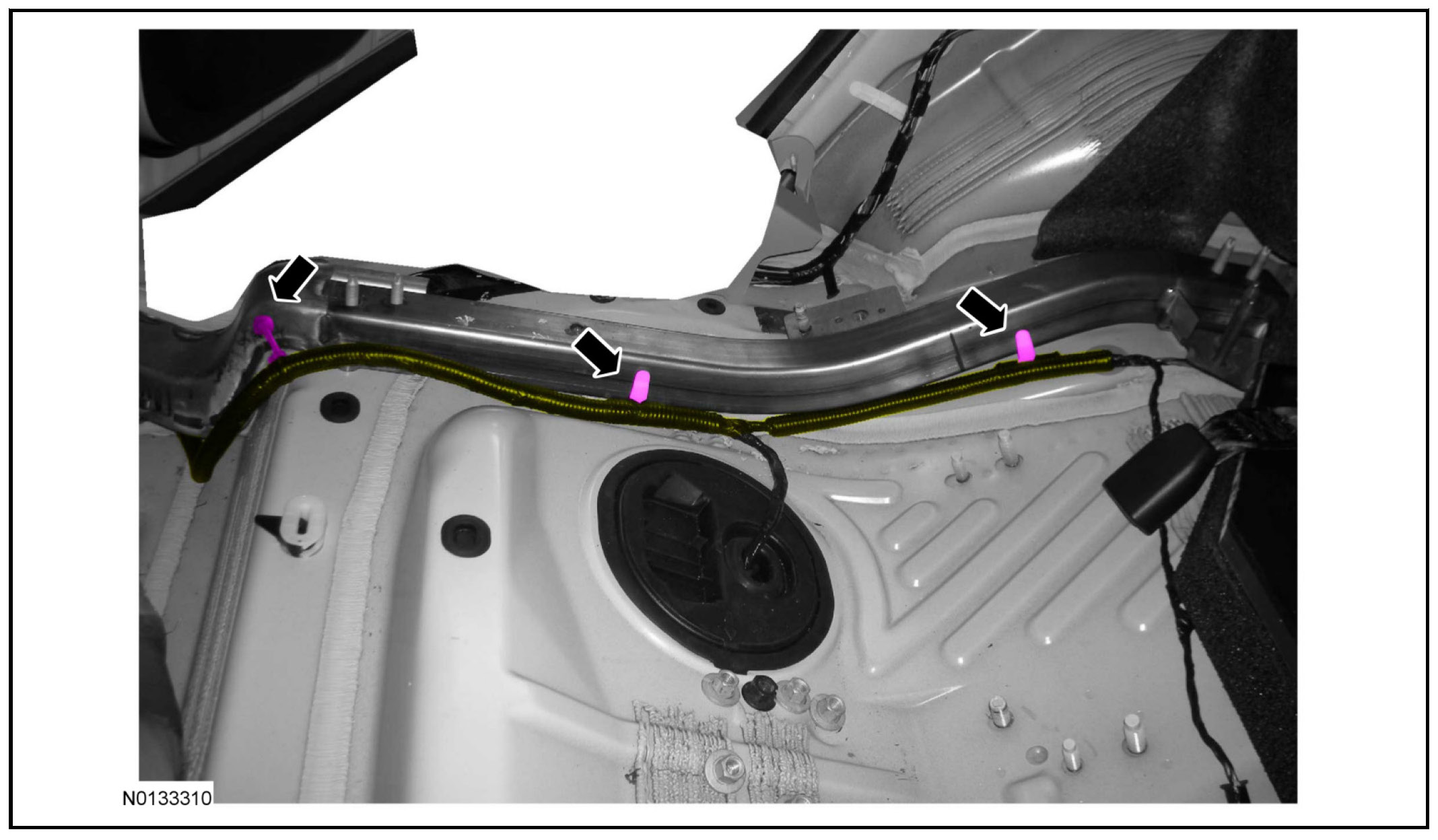

5. Remove the rear scuff plates.
6.







7.







8.







9.







10.







Installation

Center Bracket

1. Hand tighten only.







Side Braces

2. Hand tighten only.







3.







4.







Rear Brace

5. NOTE: Make sure the center safety belt is routed over the rear brace.

Hand tighten only.

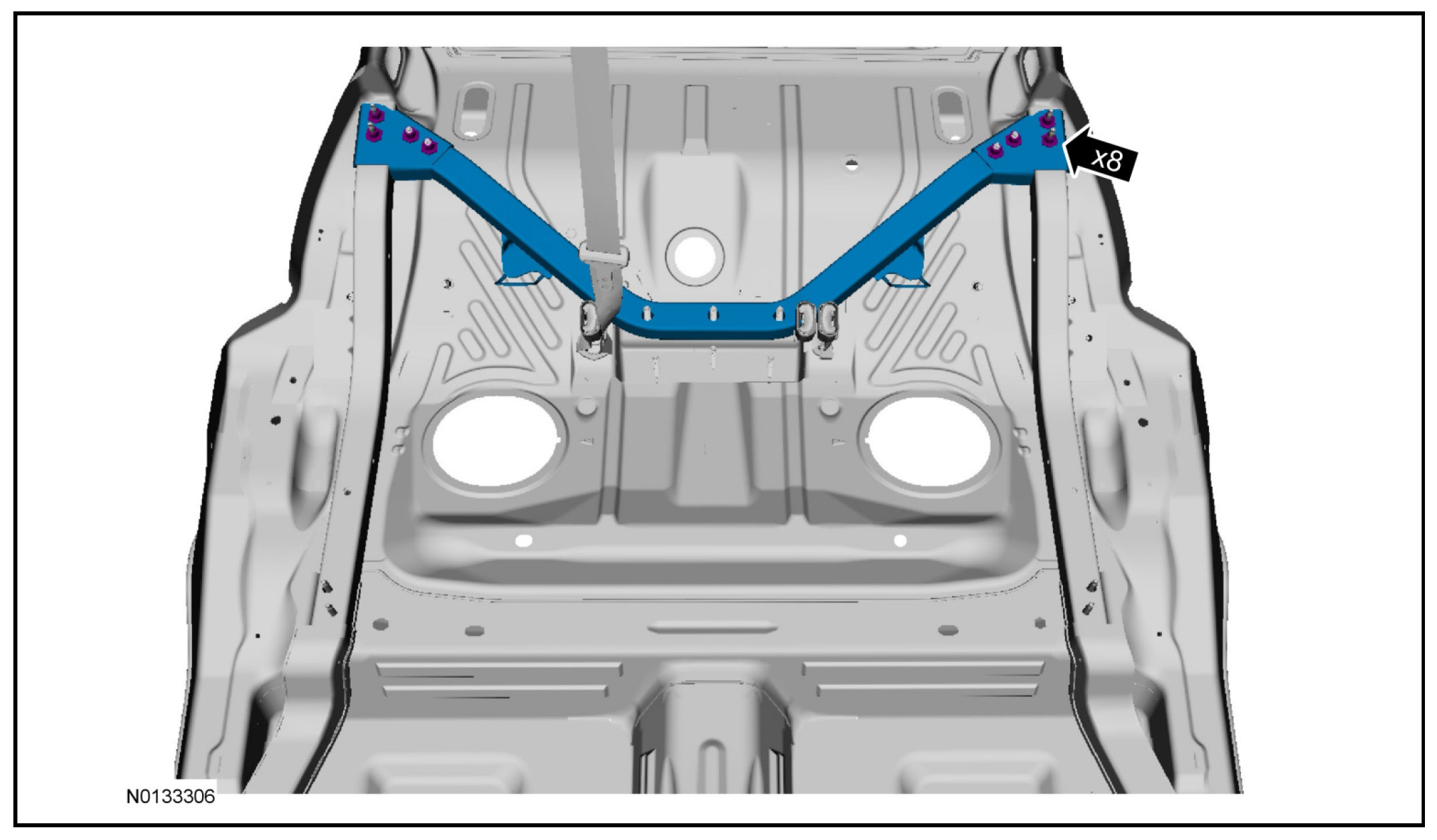

Front Brace

6. Hand tighten only.







All

7. Tighten to 55 Nm (41 lb-ft)







8. Tighten to 55 Nm (41 lb-ft)







9. Tighten to 55 Nm (41 lb-ft)







10.
1. Tighten to 62 Nm (46 lb-ft)
2. Tighten to 48 Nm (36 lb-ft)







11.







12. Install the rear seat back.
13. Install the rear scuff plates.
