Seat Position Sensor: Service and Repair

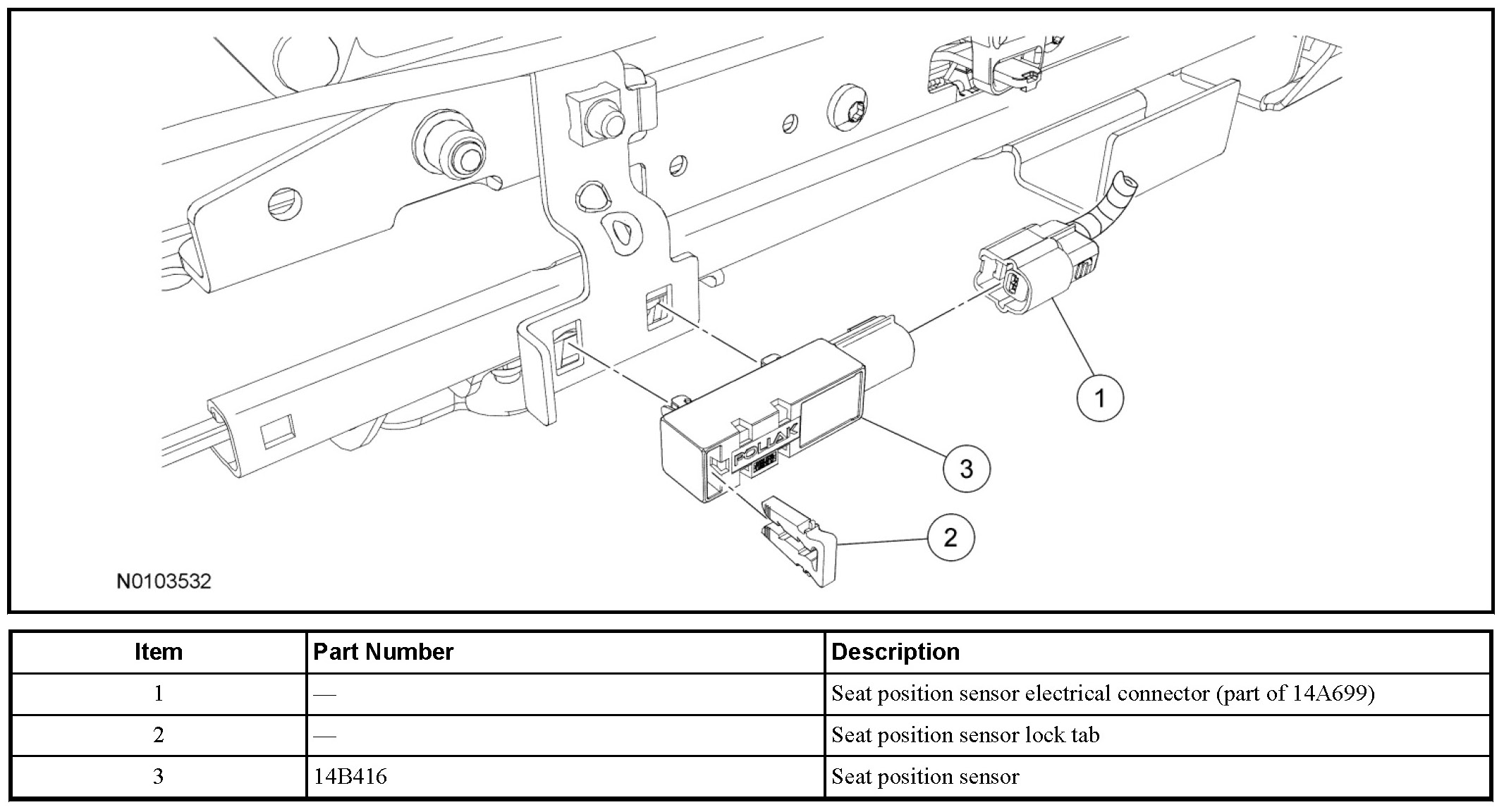

Seat Position Sensor







1. Remove the driver seat.
2. Disconnect the seat position sensor electrical connector.
3. Compress the tab and remove the seat position sensor from the seat bracket slots.
4. To install, reverse the removal procedure.
