Steering Column Control Module (SCCM): Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

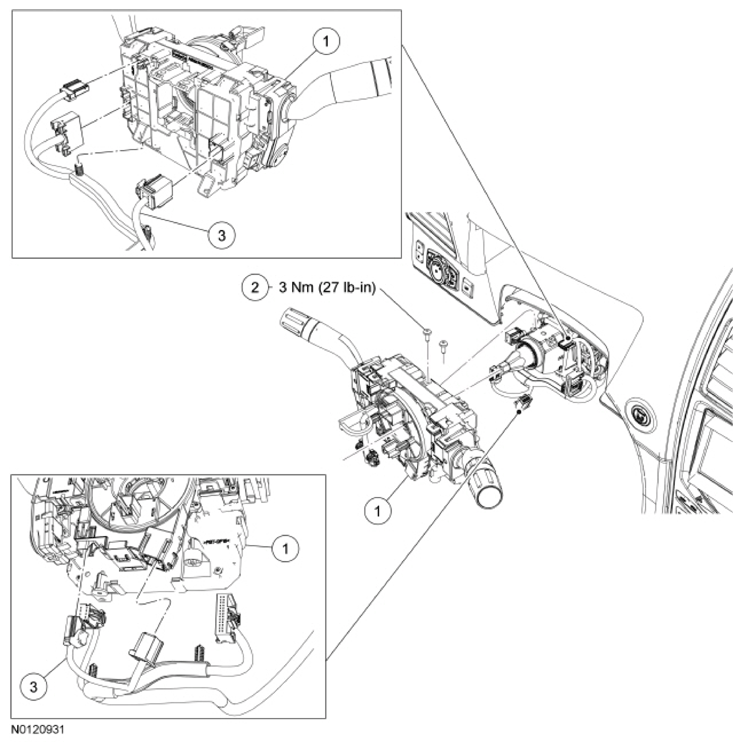

Fig 1: Steering Column Control Module, Wire Harness And Screws With Torque Specifications
G09291797Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3F791 Steering Column Control Module (SCCM)
2 W715057 SCCM  screw (2 required)
3 14401 Wire harness
