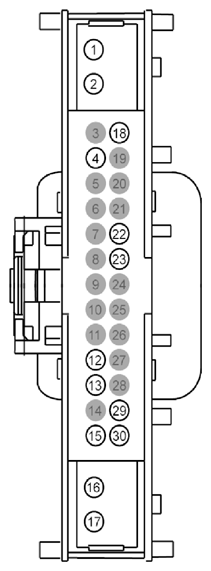

| 1 |
SBB28 (GN-RD) |
16 |
FUSE - 28 OR CIRCUIT BREAKER |
Edge with heated front seats |
| 2 |
SBB28 (GN-RD) |
16 |
FUSE - 28 OR CIRCUIT BREAKER |
Edge with heated front seats |
| 3 |
* |
* |
Not Used |
|
| 4 |
VH441 (WH-BN) |
22 |
SENSOR - DOOR POSITION TEMP. RIGHT |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
CH213 (BN-GN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2/OPEN (IF PLUS) |
|
| 13 |
CH212 (BU-OG) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1/CLOSE (IF PLUS) |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
VHS27 (WH-OG) |
22 |
SENSOR - CUSHION TEMP. PASSENGER |
Edge with heated front seats |
| 16 |
CHS02 (YE-BU) |
16 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER |
Edge with heated front seats |
| 17 |
CHS07 (GY-BU) |
16 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER |
Edge with heated front seats |
| 18 |
VH413 (WH-BU) |
22 |
SENSOR - HUMIDITY |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
VH417 (YE-OG) |
22 |
SENSOR - SUN LOAD # RIGHT |
|
| 23 |
VH416 (VT-GY) |
22 |
SENSOR - SUN LOAD # LEFT |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
VH414 (GN-BU) |
22 |
SENSOR - INCAR TEMP. |
|
| 30 |
VHS26 (VT) |
22 |
SENSOR - CUSHION TEMP. DRIVER |
Edge with heated front seats |
