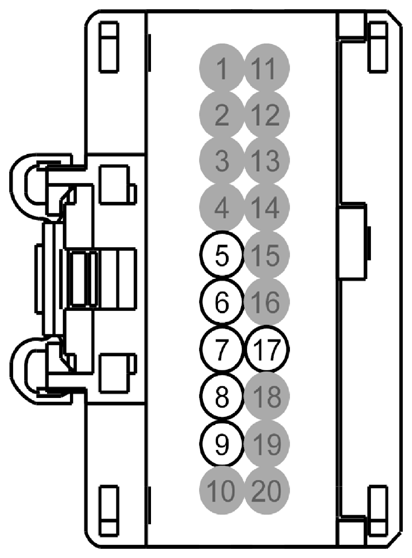

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
CLN50 (YE-BU) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED BLUE |
|
| 6 |
CLN49 (YE-GN) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED GREEN |
|
| 7 |
CLN48 (YE-OG) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED RED |
|
| 8 |
GD908 (BK) |
18 |
GROUND - CTRL MOD. AMBIENT LIGHTING |
|
| 9 |
CLN58 (GY-OG) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 2 # LED WHITE OR SIGNATURE |
MKX |
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
RLN44 (BN) |
22 |
CTRL MOD. - AMBIENT LIGHTING ZONE 1 OR NON-ZONE # LED |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
