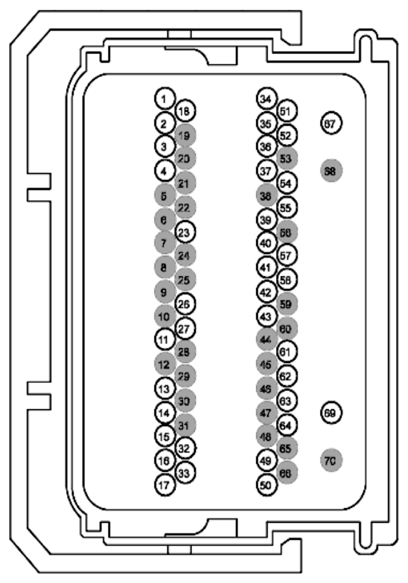

| 1 |
CE205 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + |
|
| 2 |
CE206 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + |
|
| 3 |
CE207 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + |
|
| 4 |
CE208 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 (CMP11) |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
|
| 14 |
CE101 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+) |
|
| 15 |
CE102 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-) |
|
| 6 |
CE103 (BU-BN) |
18 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC) |
|
| 17 |
CE104 (GN) |
18 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC) |
|
| 18 |
CE171 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # AUXILIARY TRANSMISSION WARMUP 1 (ATWU1) |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
LE451 (BN-YE) |
20 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
* |
* |
Not Used |
|
| 26 |
LE448 (GY-BU) |
20 |
CTRL MOD. - POWERTRAIN # (UO2SPC11) |
|
| 27 |
VE826 (BN-VT) |
20 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
* |
* |
Not Used |
|
| 32 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) |
|
| 33 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP4C) |
|
| 34 |
CE412 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # THROTTLE POSITION 1 (TP1) |
|
| 35 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREV) (VREF1) |
|
| 36 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
|
| 37 |
LE452 (GN) |
20 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
|
| 40 |
VE803 (BU-GN) |
20 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + |
|
| 41 |
VE818 (BN) |
20 |
SENSOR - POWERTRAIN # THROTTLE POSITION 2 (TP2) |
|
| 42 |
RE323 (WH-BN) |
20 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1-) |
|
| 43 |
VE801 (VT-OG) |
20 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) |
|
| 44 |
* |
* |
Not Used |
|
| 45 |
* |
* |
Not Used |
|
| 46 |
* |
* |
Not Used |
|
| 47 |
* |
* |
Not Used |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) |
|
| 50 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP2D) |
|
| 51 |
CE426 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
|
| 52 |
CE172 (GN) |
20 |
CTRL MOD. - POWERTRAIN # AUXILIARY TRANSMISSION WARMUP 2 (ATWU2) |
|
| 53 |
* |
* |
Not Used |
|
| 54 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP1A) |
|
| 55 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) |
|
| 56 |
* |
* |
Not Used |
|
| 57 |
LE134 (YE) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
|
| 58 |
VE819 (GN-VT) |
20 |
SENSOR-THROTTLE POSITION (TACM+) |
|
| 59 |
* |
* |
Not Used |
|
| 60 |
* |
* |
Not Used |
|
| 61 |
RE134 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
|
| 62 |
VE711 (YE-VT) |
18 |
SENSOR - CRANKSHAFT POSITION (CKP) |
|
| 63 |
RE135 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # (SIGRTN) |
|
| 64 |
DE135 (WH) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D |
|
| 65 |
* |
* |
Not Used |
|
| 66 |
* |
* |
Not Used |
|
| 67 |
CE422 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID |
|
| 68 |
* |
* |
Not Used |
|
| 69 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) |
|
| 70 |
* |
* |
Not Used |
|
