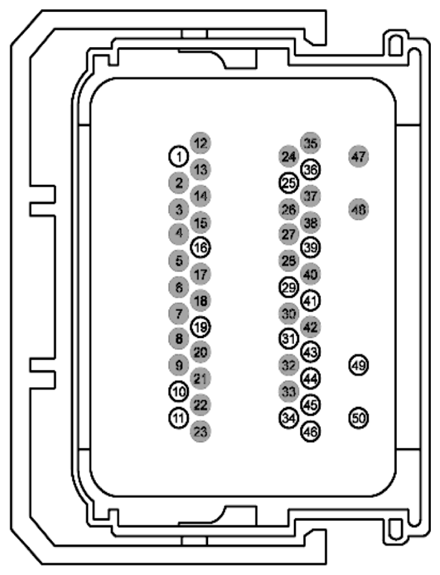

| 1 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # (TSS/OSS/TRS) (VBPWR) |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
* |
* |
Not Used |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSD) |
|
| 11 |
CET18 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL (SSE) |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
VET33 (WH-OG) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
VET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
|
| 26 |
* |
* |
Not Used |
|
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
CET34 (BN-GN) |
20 |
SWITCH - TRANSMISSION CONTROL/OVERDRIVE CANCEL (TCS) |
|
| 32 |
* |
* |
Not Used |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
CET09 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (LPC) |
|
| 35 |
* |
* |
Not Used |
|
| 36 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TSS/OSS/TRS) (SIG RTN) |
|
| 37 |
* |
* |
Not Used |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR-P) |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
RE406 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIG RTN) |
|
| 42 |
* |
* |
Not Used |
|
| 43 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSB) |
|
| 44 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSC) |
|
| 45 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSA) |
|
| 46 |
CET10 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (TCC) |
|
| 47 |
* |
* |
Not Used |
|
| 48 |
* |
* |
Not Used |
|
| 49 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
| 50 |
CET25 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
|
