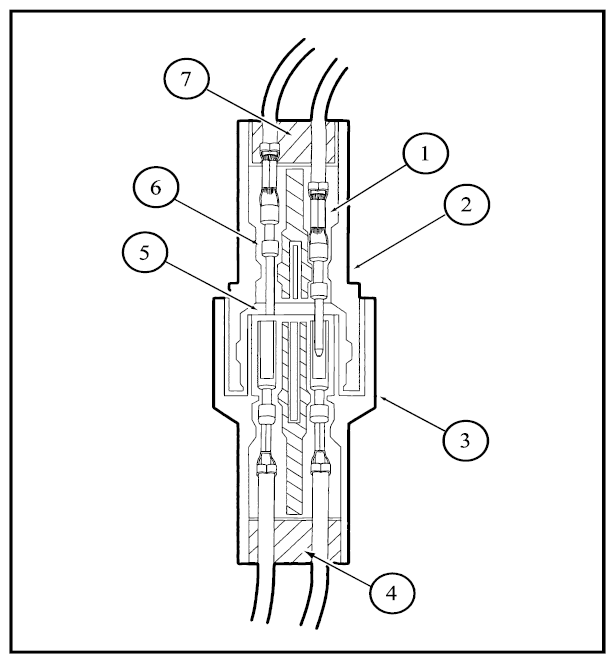

Terminal Not Properly Seated
- Locked terminal
- Male half
- Female half
- Seal
- Intermittent contact
- Unlocked terminal (Hidden by wire seal)
- Seal
Check for unlocked terminals by pulling each wire at the end of the connector.
Courtesy of FORD MOTOR CO.
