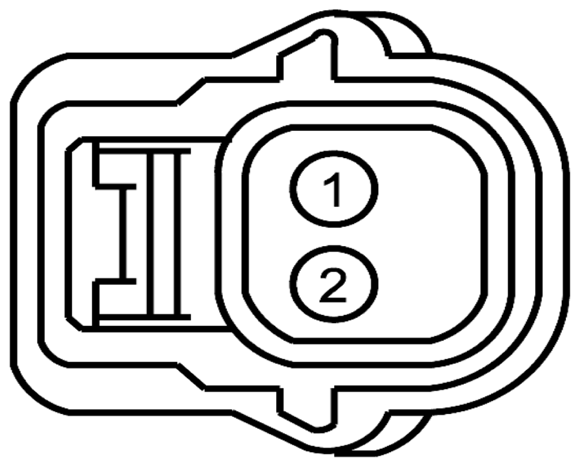

Seat Position Sensor Driver Connector End View (C356)

Fig 1: Identifying Seat Position Sensor Driver Connector (C356)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR155 (GY)	20	CTRL MOD. - SENSORS SEAT BELT BUCKLE -
2	VR215 (YE-VT)	20	SENSOR - SEAT TRACK POSITION DRIVER

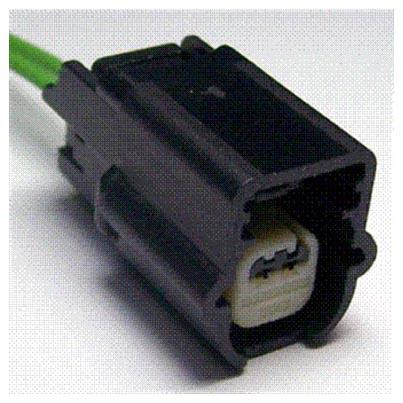

Available Pigtail Kits
Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
