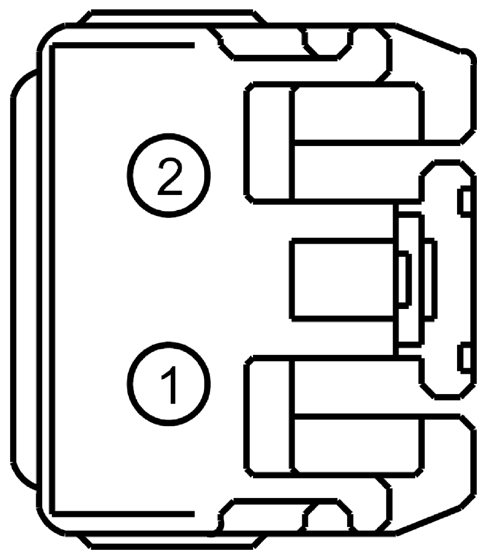

Blower Motor Connector End View (C2004)

Fig 1: Identifying Blower Motor Connector (C2004)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH402 (YE-GN)	12	RELAY - FRONT BLOWER	manual A/C
1	VH301 (YE-BU)	12	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR +	auto A/C
2	CH430 (VT-OG)	12	SWITCH - FRONT BLOWER # POSITION 4 (HIGH)	manual A/C
2	RH301 (GY-VT)	12	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR -	auto A/C

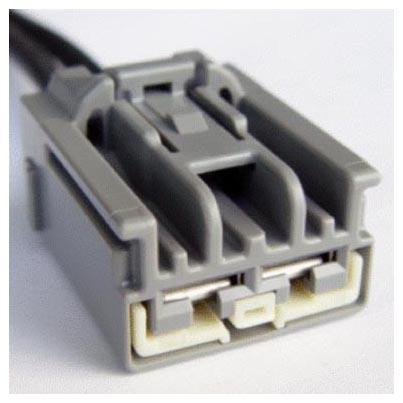

Available Pigtail Kits
Pigtail Kit Part Number WPT-236	Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater/A/C Blower (Front)
