Cruise-Control Module (C-CM): Installation

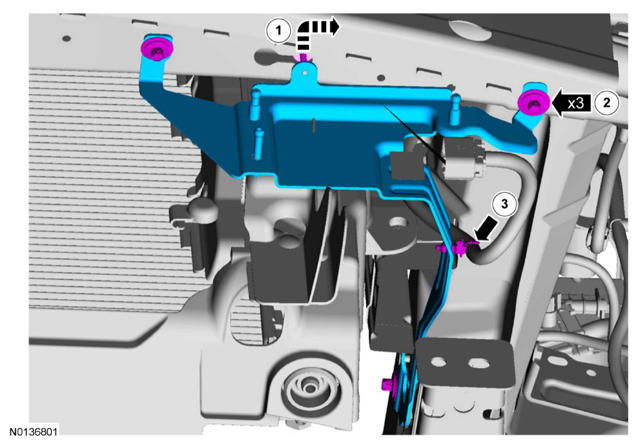

Bracket

1. • Tighten the bolts to 8 Nm (71 lb-in).

   C-CM or bracket

   NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.
2. NOTE: If a ball stud grommet breaks while the C-CM  is being installed, install a new grommet.
   NOTE: Firmly apply pressure to the C-CM  so that the ball studs seat completely in the grommets.
3. Once the C-CM  is installed, pull the C-CM  to confirm that all 3 ball studs are fully seated in the grommets.
4. If installing a new C-CM  , download the C-CM  configuration information from the scan tool into the new C-CM  . Refer to Programmable Module Installation (PMI) in MODULE CONFIGURATION .
5. NOTE: Do not install the front bumper cover until the alignment procedures are carried out.

   Vertically and horizontally align the C-CM  . For additional information, refer to CRUISE CONTROL MODULE (C-CM) (WITH SENSOR) ADJUSTMENT .

6. Install the front bumper cover. For additional information, refer to BUMPERS .
