Smart Data Link Connector (SDLC) Module Connector End View (C2803)

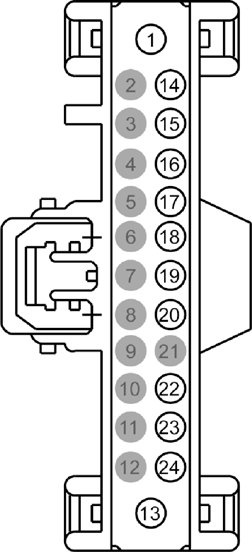

Fig 1: Identifying Smart Data Link Connector Module Connector (C2803)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	SBB31 (WH-RD)	20	FUSE - 31 OR CIRCUIT BREAKER
14	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT # 3RD POINT
15	VDB14 (VT-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS LOW
16	VDB13 (BU-GY)	22	CTRL MOD. - MULTIMEDIA CAN BUS HIGH
17	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
18	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
19	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
20	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
21	*	*	Not Used
22	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
23	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
24	SBP26 (YE-RD)	22	FUSE - 73 OR CIRCUIT BREAKER
