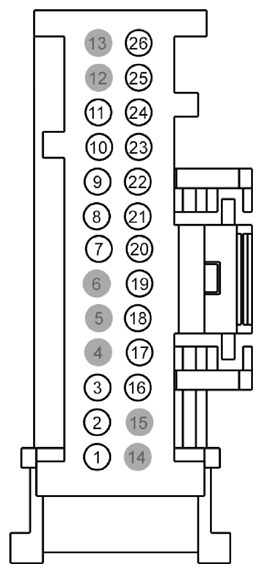

Front Controls Interface Module (FCIM) Connector End View (C2402A)

Fig 1: Identifying Front Controls Interface Module Connector (C2402A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
2	RH111 (GY)	26	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS	Fusion
3	LH111 (BN-WH)	26	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS	MKZ
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	CRD02 (BN-BU)	22	CTRL MOD. - RELAY HEATER REAR WINDOW
8	CH239 (BU-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS)
9	CH238 (YE)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS)
10	CH237 (VT-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON
11	CH123 (VT-GN)	22	CTRL MOD. - BLOWER MOTOR RELAY
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	CH206 (YE-BU)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON
17	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	Fusion
17	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	MKZ
18	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	Fusion
18	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	MKZ
19	VH406 (VT)	26	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)
20	CH202 (BU-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1/FLOOR (IF PLUS)
21	CH203 (GN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2/PANEL (IF PLUS)
22	CH201 (BN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON
23	VH101 (WH)	26	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL
24	CH208 (GN-WH)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS)
25	CH207 (BU-OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS)
26	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER
