With Redundant Audio Controls Without Sync/Navigation

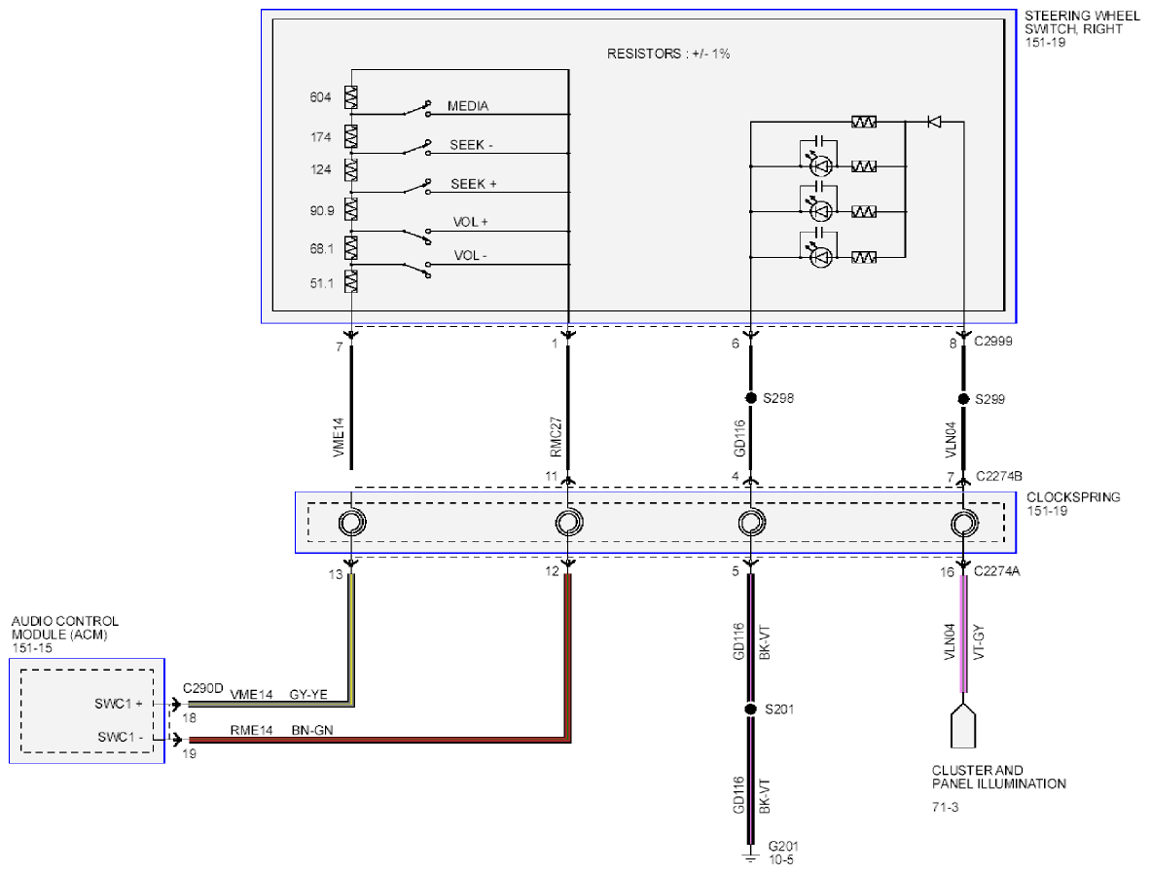

Fig 1: Shaker/Shaker Pro - Wiring Diagram (With Redundant Audio Controls Without Sync/Navigation)
G09283285Courtesy of FORD MOTOR CO.
