PINPOINT TEST B: Powertrain Control Module (PCM) Power Relay: Introduction: Notes

This pinpoint test is intended to diagnose the following:

harness circuits: B+, INJPWRM, ISP-R, PCMRC, and VPWR
PCM power relay (12A646)
PCM (12A650)

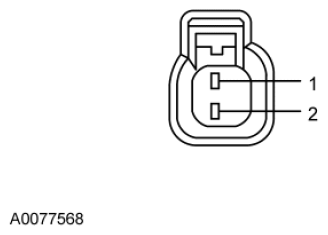

Fig 1: Identifying Injector Connector Terminals
Courtesy of FORD MOTOR CO.

Pin	Circuit
2	VPWR (Vehicle Power)

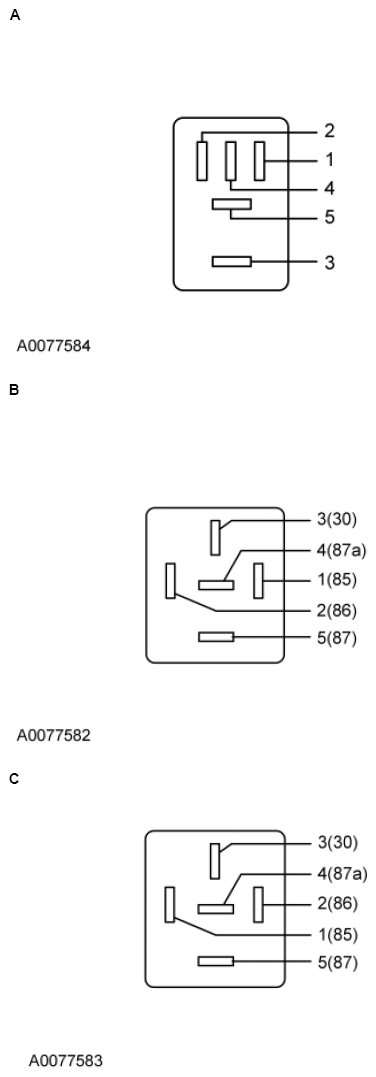

Fig 2: Identifying Powertrain Control Module Power Relay Connector Terminals

G09137446

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Edge, Explorer, Fusion, MKX, MKZ, Taurus 3.5L, Taurus 3.7L	A	5 1 2, 3	VPWR PCMRC B+
Escape	B	5 2 1, 3	VPWR PCMRC B+
F-650/F-750	B	87 85 30, 86	VPWR PCMRC B+
F-Series Super Duty, Motorhome/Stripped Chassis/Step Van	B	5 1 2, 3	VPWR PCMRC B+
Focus, Transit Connect	C	5 2 1, 3	VPWR PCMRC B+
Mustang	B	87 86 30, 85	VPWR PCMRC B+
All other vehicles	A	5 2 1, 3	VPWR PCMRC B+
