Steering Gear: Installation

NOTE: To install, reverse the removal procedure.

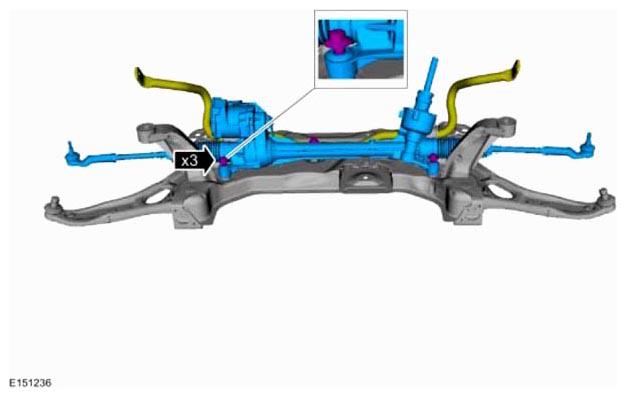

Install the steering gear, steering gear bolts finger tight. Position the front stabilizer bar.
Check and install the steering gear boot on steering gear as shown below.
1. Tighten the steering gear bolt.
  Torque :

  Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360°

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180°
2. Tighten the steering gear bolt.
  Torque :

  Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360°

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180°
3. Tighten the steering gear bolt.
  Torque :

  Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360°

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180°
