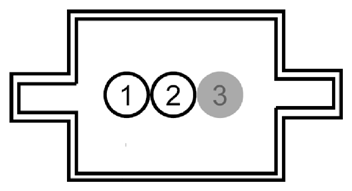

Steering Angle Sensor Module (SASM) Connector End View (C226C)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* (*) |
* |
CRUISE GROUND |
|
| 2 |
* (*) |
* |
CRUISE SIGNAL 2 |
|
| 3 |
* |
* |
Not Used |
|
