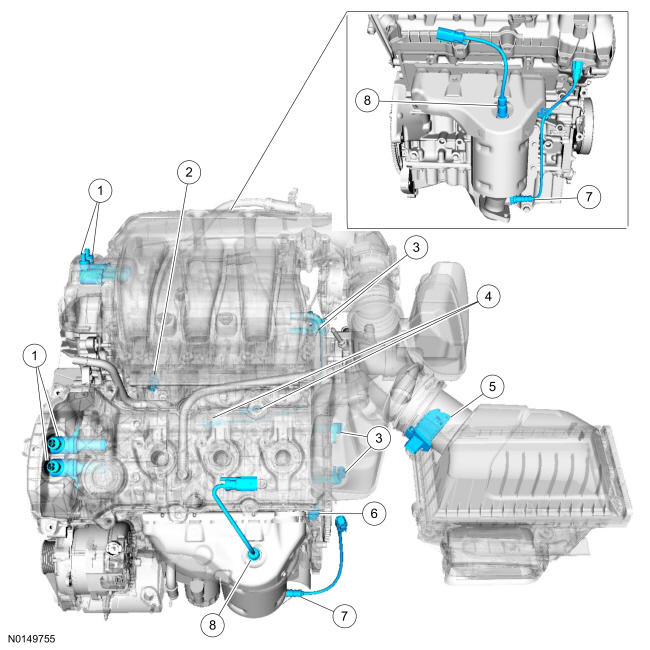

3.5L Ti-VCT Engine Sensor Locations
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
6M280 |
VCT oil control solenoids |
| 2 |
6G004 |
CHT sensor |
| 3 |
6B288 |
CMP sensor |
| 4 |
12A699 |
KS |
| 5 |
12B579 |
MAF sensor |
| 6 |
6C315 |
CKP sensor |
| 7 |
9G444 |
CMS |
| 8 |
9F472 |
HO2S |
